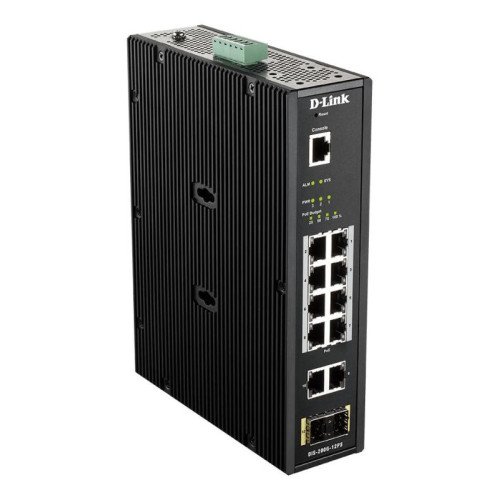

DIS-200G-12PS

Technical Specifications

• Summary: D-Link 12-Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) (8 PoE 240W) & 2 x SFP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... DC input voltage: 46 - 54 V. Power over Ethernet (PoE). Wall mountable, Rack mounting
• Vendor Homepage: https://www.dlink.com/uk/en/products/dis-200g-12ps
• Name: NET SWITCH 12PORT 100/1000/DIS-200G-12PS D-LINK
• Category Code: SWI
• Model: DIS-200G-12PS
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Configuring Location Settings (CLI): Yes
• System event log: Yes
• Basic switching RJ-45 Ethernet ports quantity: 10
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 10
• SFP module slots quantity: 2
• Console port: RJ-45
• Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Active link detection: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: Port-based VLAN/Tagged VLAN/Voice VLAN
• Number of VLANs: 4094
• Fiber ethernet cabling technology: 1000BASE-X
• Switching capacity: 24
• Forwarding rate: 17.85
• MAC address table: 8000
• Store-and-forward: Yes
• Jumbo frames support: Yes
• Jumbo frames: 9216
• DHCP features: DHCP client
• IGMP snooping: Yes
• Authentication: Port-based authentication
• Authentication type: RADIUS
• Queue scheduling algorithms: SPQ/Weighted Round Robin (WRR)
• Security algorithms: 802.1x RADIUS/SSL/TLS
• Multicast support: Yes
• Management protocols: SNMP v1/v2c/v3, SNTP, Telnet
• Rack mounting: Yes
• Product colour: Black
• Housing material: Metal
• LED indicators: Yes
• DIN rail mounting: Yes
• International Protection (IP) code: IP30
• Number of fans: 0
• Wall mountable: Yes
• Electromagnetic compatibility: CISPR 22, FCC Part 15B Class A
• Mean time between failures (MTBF): 205689
• DC input voltage: 46 - 54
• Power consumption (max): 260
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) ports quantity: 8
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 240
• Operating temperature (T-T): -40 - 65
• Storage temperature (T-T): -40 - 85
• Operating relative humidity (H-H): 0 - 95
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 887.16
• Width: 171.2
• Depth: 53
• Height: 210
• Weight: 1760
• Certification: CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00602
• Unit Calculated Weight: 2.2
