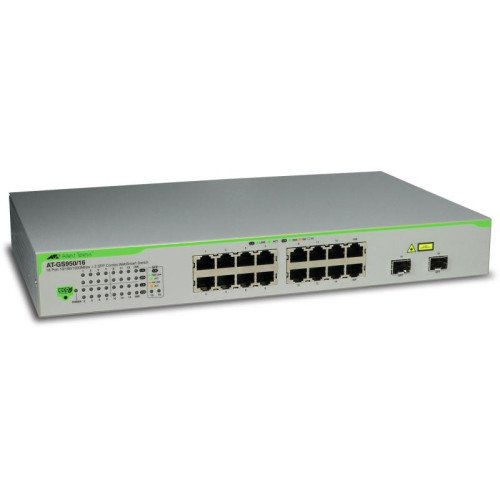

NET SWITCH 16PORT 10/100/1000T/AT-GS950/16-50 ALLIED

Technical Specifications

• Summary: Allied Telesis AT-GS950/16-50. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE.... Power connector: DC-in jack. Rack mounting, Form factor: 1U
• Vendor Homepage: https://www.alliedtelesis.com/products/gs95016
• Name: NET SWITCH 16PORT 10/100/1000T/AT-GS950/16-50 ALLIED
• Category Code: SWI
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Combo SFP ports quantity: 2
• Console port: RJ-45
• Power connector: DC-in jack
• Networking standards: IEEE 802.1D/IEEE 802.1s/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Copper ethernet cabling technology: 1000BASE-T/100BASE-T/10GBASE-T
• Port mirroring: Yes
• Auto MDI/MDI-X: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Throughput: 1488
• MAC address table: 8000
• Packet buffer memory: 0.5
• Rack mounting: Yes
• Form factor: 1U
• Product colour: White
• LED indicators: Yes
• Internal memory: 8
• Flash memory: 2
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Input current: 0.3
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -25 - 70
• Operating relative humidity (H-H): 5 - 90
• Storage relative humidity (H-H): 5 - 95
• Width: 352
• Depth: 256
• Height: 43.2
• Weight: 2380
• Certification: UL 1950 FCC/EN55022 VCCI C-Tick EN60950 (TUV) EN55024 CE
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00858
• Unit Calculated Weight: 3.09
