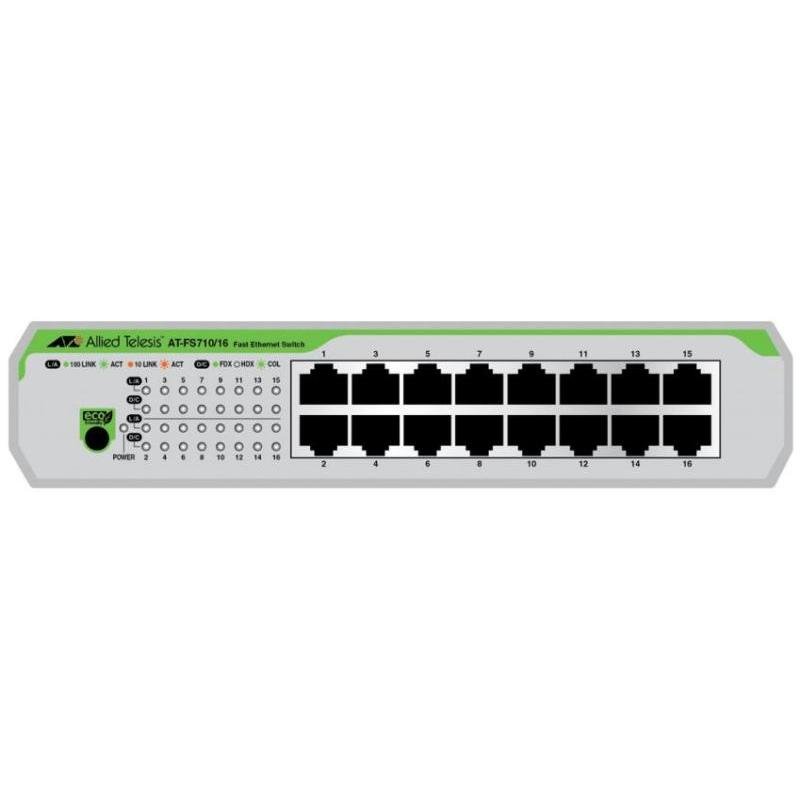

NET SWITCH 16PORT 10/100M TX/AT-FS710/16-50 ALLIED

NET SWITCH 16PORT 10/100M TX/AT-FS710/16-50 ALLIED
NET SWITCH 16PORT 10/100M TX/AT-FS710/16-50 ALLIED
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Switching capacity: 3.2
Врз основа на 0 коментари. - Напиши коментар
10,203ден.
  • Достапност:
  • Бренд: ALLIED
  • Шифра: 253820
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Allied Telesis AT-FS710/16-50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U
  • Vendor Homepage: https://www.alliedtelesis.com/products/fs71016e
  • Name: NET SWITCH 16PORT 10/100M TX/AT-FS710/16-50 ALLIED
  • Category Code: SWI
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
  • Auto MDI/MDI-X: Yes
  • Flow control support: Yes
  • Switching capacity: 3.2
  • Throughput: 2.38
  • MAC address table: 8000
  • Jumbo frames support: Yes
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Green/Grey
  • LED indicators: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (max): 5.4
  • Operating temperature (T-T): 0 - 50
  • Storage temperature (T-T): -25 - 70
  • Operating relative humidity (H-H): 5 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Operating altitude: 0 - 2000
  • Width: 210
  • Depth: 124
  • Height: 44
  • Weight: 870
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.004347
  • Unit Calculated Weight: 1.6
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Depth124
Flow control supportYes
Form factor1U
Harmonized System (HS) code85176990
Height44
Jumbo frames supportYes
LED indicatorsYes
MAC address table8000
Networking standardsIEEE 802.3/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Operating altitude0 - 2000
Operating relative humidity (H-H)5 - 90
Operating temperature (T-T)0 - 50
Power connectorDC-in jack
Power consumption (max)5.4
Product colourGreen/Grey
Rack mountingYes
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-25 - 70
SummaryAllied Telesis AT-FS710/16-50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U
Throughput2.38
Weight870
Width210
Specs
Category CodeSWI
Description

Overview
The FS710 Series switches provide silent operation, with easy set-up and simple connectivity for desktop and small to medium network environments.

High performance
Full auto-negotiating 10/100 ports allow FS710 switches to detect the speed and duplex modes of attached devices, and automatically configure for the best possible performance.

Quality and reliability
Allied Telesis is a world-wide leader in unmanaged Ethernet switches. Shipping more than 250,000 unmanaged switches every year, Allied Telesis offers proven reliability, and industry-recognized quality.

Flexibility
Available in 5, 8, 16 and 24-port models, the FS710 Series provide both internal and external power supply options. Wall, desk and rack-mounting options give users ultimate flexibility in selecting the model that meets their specific physical deployment requirements.

Fanless for silent operation
The FS710 Series are fanless and run silently, making them ideal for the desktop or workspace. Deploy in dusty industrial environments without affecting the expected lifetime.

Simplified installation
Auto-configuration of the FS710 Series minimizes user set-up. Auto-sensing ports enable seamless and simple connectivity between existing 10Mbps Ethernet and 100Mbps Fast Ethernet UTP devices, so installation takes just minutes. All ports support MDI/MDI-X simple connection to other hubs and switches.

Environmentally friendly
FS710 Series eco-friendly switches conform to the Allied Telesis commitment to environmentallyfriendly processes and products. They are designed to minimize power consumption through the use of a high-efficiency power supply and a low-power chipset.
With low power consumption and a reduction in power outside regular work hours, as well as other powersaving features included as standard, the Allied Telesis FS710 Series truly lives up to its eco-friendly reputation. Not only does this help the planet by reducing the carbon footprint of each switch, it also lowers the Total Cost of Ownership (TCO) for the user. The device costs less to run, and features improved reliability

NameNET SWITCH 16PORT 10/100M TX/AT-FS710/16-50 ALLIED
PictureUrlhttps://static.elko.cloud/ProductImages/f79add3f-2c5f-4b34-919e-2bcf189fa777.Jpeg
Switch typeUnmanaged
Switching capacity3.2
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/f79add3f-2c5f-4b34-919e-2bcf189fa777.Jpeg
Unit Calculated Volume0.004347
Unit Calculated Weight1.6
Units per Shipping Box1
Vendor Homepagehttps://www.alliedtelesis.com/products/fs71016e
