NET SWITCH 16PORT SFP+ 4 10GB/UNIFI US-16-XG UBIQUITI

10G Aggregation Switch for Enterprise Networks

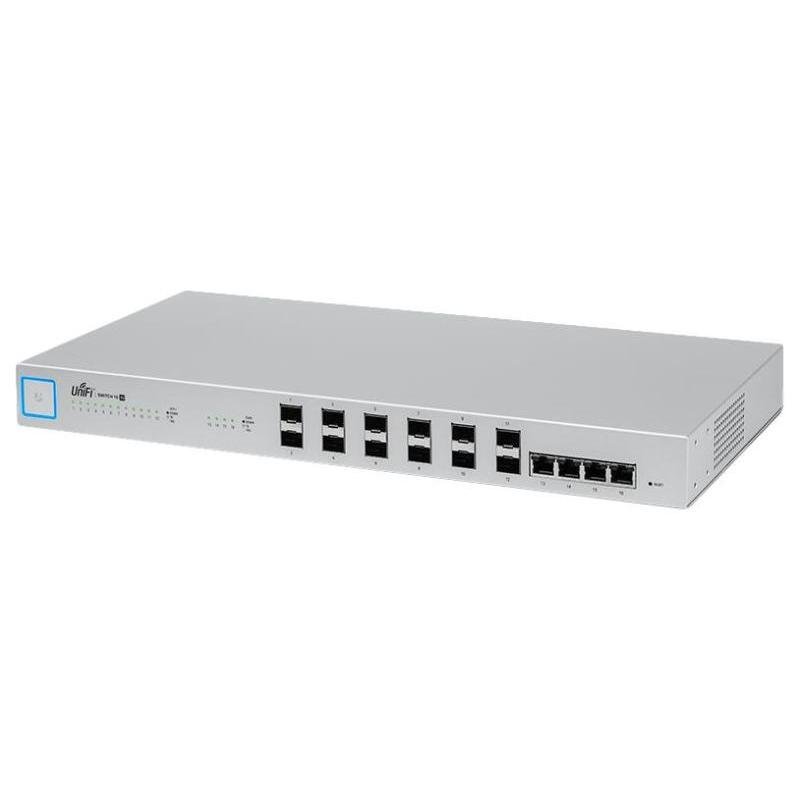

Build and expand your network with Ubiquiti Networks® UniFi® Switch 16 XG, part of the UniFi Enterprise System. The
US‑16‑XG is a fully managed, 16-port, 10G fiber switch that enhances network capacity by providing high-bandwidth
aggregation connectivity to multiple switches in your network.
The US‑16‑XG offers an extensive suite of advanced Layer-2 switching features and protocols.

Switching Performance
The US‑16‑XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The total non-blocking throughput is up to 160 Gbps.

10G High-Capacity Links
The US‑16‑XG offers maximum performance and low latency as an aggregation switch.
For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the US‑16‑XG offers four RJ45 ports that
support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.

The US‑16‑XG connects to the following:
- Multiple UniFi Switches and a 1G/10G router via SFP+ ports
- VM, Server, NAS, or other network devices via 1G/10G RJ45 ports

UniFi Controller
Designed for convenient management, the UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. You can download it from www.ubnt.com at no cost.

Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
- Operation mode (switching, mirroring, or aggregate) per port
- Network/VLAN configuration
- Jumbo frame and flow control services
- Network settings
- Storm control setting per port
- Spanning tree configuration
- 802.1x control and RADIUS VLAN
- Debug terminal option for command-line interface

Switch Port Status
You can also view status information for each port:
- Connection speed and duplex mode
- TX/RX data rates
- Network/VLAN setting

Dashboard
The Dashboard tab provides a visual representation of your network’s status. Basic information is provided for each network segment.

Device Configuration
The Devices screen displays the UniFi devices discovered by the UniFi Controller. You can access each managed device for device details and configuration.
