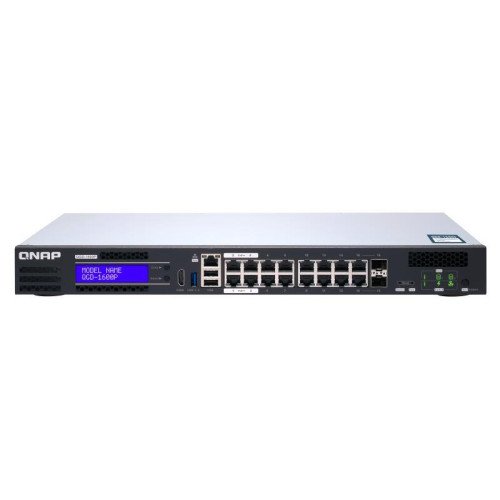

NET SWITCH 16PORTS POE/QGD-1600P-8G QNAP

Technical Specifications

• Summary: QNAP QGD-1600P. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 14, USB 2.0 ports quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
• Vendor Homepage: https://www.qnap.com/en/product/qgd-1600p
• Name: NET SWITCH 16PORTS POE/QGD-1600P-8G QNAP
• Category Code: SWI
• Model name: QGD-1600P-8G
• Switch type: Managed
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Traffic classification: Yes
• Basic switching RJ-45 Ethernet ports quantity: 14
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 14
• Combo SFP ports quantity: 2
• HDMI stacking ports: 1
• USB 2.0 ports quantity: 2
• Networking standards: IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Auto-negotiation: Yes
• Ethernet LAN data rates: 1000
• Flow control support: Yes
• Link aggregation: Yes
• Rate limiting: Yes
• VLAN support: Yes
• Virtual LAN features: Port-based VLAN
• Fiber ethernet cabling technology: 1000BASE-X
• Switching capacity: 32
• Throughput: 16000
• MAC address table: 8000
• Jumbo frames support: Yes
• Jumbo frames: 9000
• DHCP features: DHCP client/DHCP server
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• Loop protection: Yes
• Security algorithms: 256-bit AES/FIPS 140-2/HTTPS/SSH/SSL/TLS
• Multicast MAC address table: 8000
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Black/Grey
• Reset button: Yes
• LED indicators: Activity/Fan fail/Link/PoE/Speed
• Number of fans: 2
• Electromagnetic compatibility: A, UL62368
• Built-in processor: Yes
• Processor manufacturer: Intel
• Processor model: Intel Celeron J4115
• Processor frequency: 1800
• Internal memory: 8192
• Flash memory: 4000
• Power source: AC
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (max): 418
• Power over Ethernet (PoE): Yes
• Total Power over Ethernet (PoE) budget: 360
• Slot type: PCIe
• Expansion slots: 2x PCIe Gen2 (x2)
• I/O ports: 1x USB 3.2 Gen 1
• Operating temperature (T-T): 0 - 40
• Operating relative humidity (H-H): 5 - 95
• Width: 436.2
• Depth: 326.2
• Height: 47.2
• Weight: 4410
• Cables included: AC/LAN (RJ-45)
• Quick start guide: Yes
• Rack mount kit: Yes
• Package weight: 5560
• Certification: CE, FCC, VCCI, BSMI RCM, CCC
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.03392
• Unit Calculated Weight: 5
