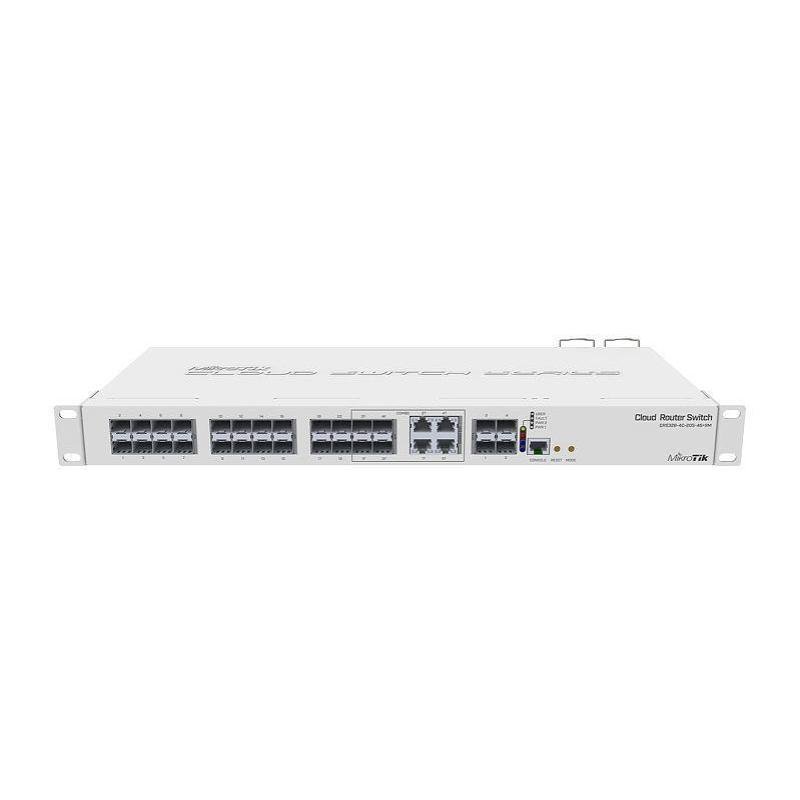

NET SWITCH 20PORT SFP 4SFP+/CRS328-4C-20S-4S+RM MIKROTIK

NET SWITCH 20PORT SFP 4SFP+/CRS328-4C-20S-4S+RM MIKROTIK
NET SWITCH 20PORT SFP 4SFP+/CRS328-4C-20S-4S+RM MIKROTIK
  • Switch type: Managed
  • Switch layer: L2/L3
  • SFP module slots quantity: 20
  • Switching capacity: 128
Врз основа на 0 коментари. - Напиши коментар
28,692ден.
  • Достапност:
  • Бренд: MIKROTIK
  • Шифра: 241881
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Mikrotik CRS328-4C-20S-4S+RM. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3ad. Rack mounting, Form factor: 1U
  • Vendor Homepage: https://mikrotik.com/
  • Name: NET SWITCH 20PORT SFP 4SFP+/CRS328-4C-20S-4S+RM MIKROTIK
  • Category Code: SWI
  • Model name: CRS328-4C-20S-4S+RM
  • Switch type: Managed
  • Switch layer: L2/L3
  • Combo SFP ports quantity: 4
  • SFP module slots quantity: 20
  • SFP+ module slots quantity: 4
  • Console port: RJ-45
  • Networking standards: IEEE 802.1Q/IEEE 802.3ad
  • 10G support: Yes
  • Port mirroring: Yes
  • Broadcast storm control: Yes
  • Link aggregation: Yes
  • VLAN support: Yes
  • Switching capacity: 128
  • Forwarding rate: 95.2
  • MAC address table: 16000
  • Jumbo frames support: Yes
  • Jumbo frames: 10218
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: White
  • LED indicators: Yes
  • Built-in processor: Yes
  • Processor frequency: 800
  • Internal memory: 512
  • Flash memory: 16
  • Power supply included: Yes
  • Number of power supply units: 1
  • AC input voltage: 100 - 240
  • Power consumption (max): 43
  • Operating temperature (T-T): -20 - 60
  • Width: 443
  • Depth: 44
  • Height: 200
  • Cables included: AC
  • Rack mount kit: Yes
  • Units per Pallet: 0
  • Units per Shipping Box: 6
  • Unit Calculated Volume: 0.01132
  • Unit Calculated Weight: 2.53
Specifications
10G supportYes
AC input voltage100 - 240
Access Control List (ACL)Yes
Broadcast storm controlYes
Built-in processorYes
Cables includedAC
Combo SFP ports quantity4
Console portRJ-45
Depth44
Flash memory16
Form factor1U
Height200
IGMP snoopingYes
Internal memory512
Jumbo frames10218
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
MAC address table16000
Networking standardsIEEE 802.1Q/IEEE 802.3ad
Number of power supply units1
Operating temperature (T-T)-20 - 60
Port mirroringYes
Power consumption (max)43
Power supply includedYes
Processor frequency800
Product colourWhite
Rack mount kitYes
Rack mountingYes
SFP module slots quantity20
SFP+ module slots quantity4
SummaryMikrotik CRS328-4C-20S-4S+RM. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3ad. Rack mounting, Form factor: 1U
Switch layerL2/L3
VLAN supportYes
Width443
Specs
Category CodeSWI
Description

The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.

The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.

Forwarding rate95.2
Model nameCRS328-4C-20S-4S+RM
NameNET SWITCH 20PORT SFP 4SFP+/CRS328-4C-20S-4S+RM MIKROTIK
PictureUrlhttps://static.elko.cloud/ProductImages/e07b000c-4ee6-4d22-bc4d-34f5f3c58e39.Jpeg
Switch typeManaged
Switching capacity128
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/e07b000c-4ee6-4d22-bc4d-34f5f3c58e39.Jpeg
Unit Calculated Volume0.01132
Unit Calculated Weight2.53
Units per Pallet0
Units per Shipping Box6
Vendor Homepagehttps://mikrotik.com/
