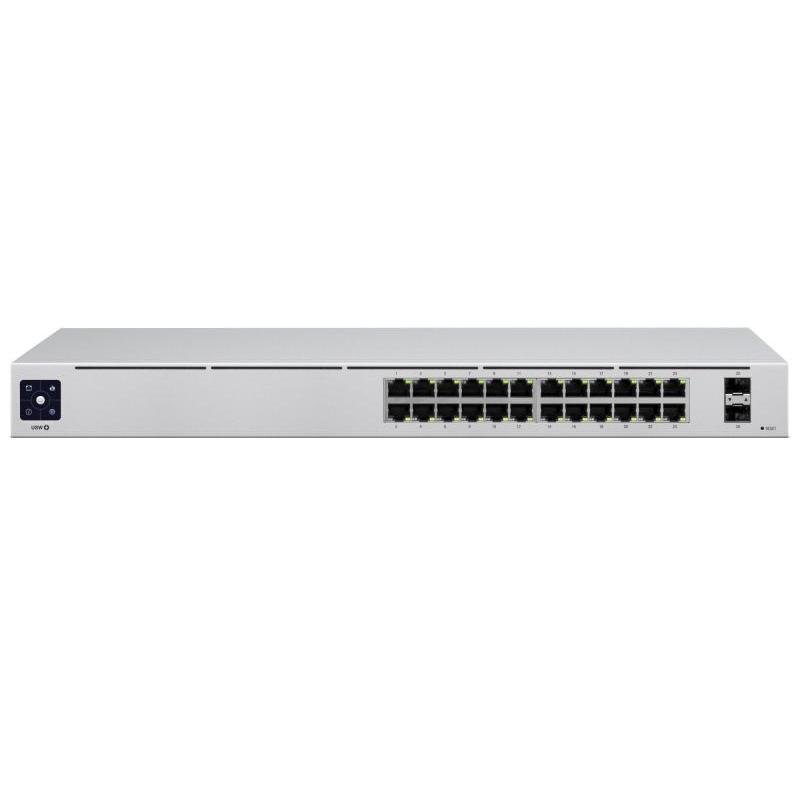

NET SWITCH 24PORT 1000M 2SFP/USW-24 UBIQUITI

NET SWITCH 24PORT 1000M 2SFP/USW-24 UBIQUITI
NET SWITCH 24PORT 1000M 2SFP/USW-24 UBIQUITI
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • SFP module slots quantity: 2
Врз основа на 0 коментари. - Напиши коментар
28,987ден.
  • Достапност:
  • Бренд: UBIQUITI
  • Шифра: 304607
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Ubiquiti UniFi USW-24. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Rack mounting
  • Vendor Homepage: https://dl.ubnt.com/
  • Name: NET SWITCH 24PORT 1000M 2SFP/USW-24 UBIQUITI
  • Category Code: SWI
  • Model name: USW-24
  • Switch type: Managed
  • Switch layer: L2
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2
  • Power connector: AC-in jack
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Ethernet LAN data rates: 10,100,1000
  • Rack mounting: Yes
  • Stackable: Yes
  • Product colour: Silver
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (typical): 120
  • Operating temperature (T-T): -5 - 40
  • Operating relative humidity (H-H): 10 - 90
  • Width: 442.4
  • Depth: 200
  • Height: 43.7
  • Weight: 2700
  • Certification: CE, FCC, IC
  • Harmonized System (HS) code: 85176990
  • Units per Pallet: 18
  • Units per Shipping Box: 2
  • Unit Calculated Volume: 0.02387
  • Unit Calculated Weight: 4.25
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, FCC, IC
Depth200
Ethernet LAN data rates10,100,1000
Harmonized System (HS) code85176990
Height43.7
Networking standardsIEEE 802.3af/IEEE 802.3at
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-5 - 40
Power connectorAC-in jack
Power consumption (typical)120
Power supply includedYes
Product colourSilver
Rack mountingYes
SFP module slots quantity2
StackableYes
SummaryUbiquiti UniFi USW-24. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Rack mounting
Switch layerL2
Web-based managementYes
Weight2700
Width442.4
Specs
Category CodeSWI
Description

UniFi Switch 24 is a fully managed Layer 2 switch with (24) Gigabit Ethernet ports and (2) Gigabit SFP ports for fiber connectivity

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

  • (24) Gigabit Ethernet Ports
  • (2) Gigabit SFP Ports
  • 1.3" color touchscreen for status information
  • Managed with UniFi Network application
  • 1U rackmountable (kit included)

Model nameUSW-24
NameNET SWITCH 24PORT 1000M 2SFP/USW-24 UBIQUITI
PictureUrlhttps://static.elko.cloud/ProductImages/258d8273-d54b-453d-9ad3-6c126bb93b18.Jpeg
Power sourceAC
Switch typeManaged
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/258d8273-d54b-453d-9ad3-6c126bb93b18.Jpeg
Unit Calculated Volume0.02387
Unit Calculated Weight4.25
Units per Pallet18
Units per Shipping Box2
Vendor Homepagehttps://dl.ubnt.com/
