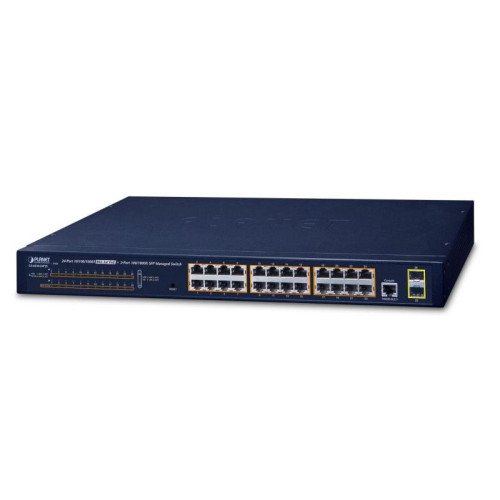

NET SWITCH 24PORT 1000M POE+/GS-4210-24P2S PLANET

Technical Specifications

• Summary: PLANET GS-4210-24P2S. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
• Vendor Homepage: https://www.planet.com.tw/en/product/gs-4210-24p2s-v3
• Name: NET SWITCH 24PORT 1000M POE+/GS-4210-24P2S PLANET
• Category Code: SWI
• Model name: GS-4210-24P2S
• Switch type: Managed
• Switch layer: L2/L4
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Traffic classification: Yes
• System event log: Yes
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 24
• SFP module slots quantity: 2
• Console port: RJ-45
• Networking standards: IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: Protocol-based VLAN/Tagged VLAN
• Number of VLANs: 4094
• Fiber ethernet cabling technology: 1000BASE-LX/1000BASE-SX
• Switching capacity: 52
• Throughput: 38.6
• MAC address table: 8000
• Store-and-forward: Yes
• Number of queues: 8
• Jumbo frames support: Yes
• Jumbo frames: 9216
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• Authentication: Port-based authentication
• BPDU filtering/protection: Yes
• MAC address filtering: Yes
• Multicast support: Yes
• Management protocols: web, Telnet, SNMP v1/v2c/v3
• Supported network protocols: IPv4 / IPv6
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Blue
• Housing material: Metal
• Reset button: Yes
• LED indicators: Yes
• Number of fans: 2
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Input current: 4
• Power consumption (max): 330
• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 24
• Total Power over Ethernet (PoE) budget: 300
• Operating temperature (T-T): 0 - 50
• Storage temperature (T-T): -10 - 70
• Operating relative humidity (H-H): 5 - 95
• Storage relative humidity (H-H): 5 - 95
• Heat dissipation: 1122
• Width: 445
• Depth: 207
• Height: 45
• Weight: 2800
• Certification: FCC Part 15 Class A, CE
• Harmonized System (HS) code: 85176990
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0168
• Unit Calculated Weight: 4
