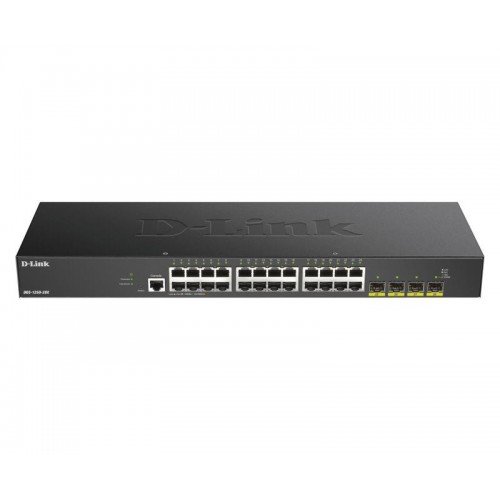

NET SWITCH 24PORT 1000M SFP+/DGS-1250-28X/E D-LINK

Technical Specifications

• Summary: D-Link 24-port Gigabit Smart Managed Switch with 4x 10G SFP+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting
• Vendor Homepage: https://www.dlink.com/en/products/dgs-1250-28x-28-port-smart-managed-switch-with-10-gigabit-uplinks
• Name: NET SWITCH 24PORT 1000M SFP+/DGS-1250-28X/E D-LINK
• Category Code: SWI
• Model name: DGS-1250-28X/E
• Switch type: Managed
• Switch layer: L3
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• ARP inspection: Yes
• Configuring Location Settings (CLI): Yes
• System event log: Yes
• MIB support: RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650,
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity: 4
• Console port: RJ-45
• Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• 10G support: Yes
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Cable types supported: Cat5/Cat5e
• Port mirroring: Yes
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Head-of-line (HOL) blocking: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: Voice VLAN
• Number of VLANs: 4094
• Fiber ethernet cabling technology: 1000BASE-LHX/1000BASE-LX/1000BASE-SX/1000BASE-X/1000BASE-ZX/100BASE-FX
• Switching capacity: 128
• Forwarding rate: 95.24
• MAC address table: 16000
• Store-and-forward: Yes
• Static route: Yes
• Number of static routes: 124
• Jumbo frames support: Yes
• Jumbo frames: 12000
• Packet buffer memory: 12
• DHCP features: DHCP client/DHCP server/DHCP snooping
• Access Control List (ACL): Yes
• Access Control List (ACL) rules: 768
• IGMP snooping: Yes
• IP-MAC-Port binding: Yes
• Loop protection: Yes
• Queue scheduling algorithms: Weighted Round Robin (WRR)
• Security algorithms: EAP/MD5/PEAP/SSH/SSL/TLS/TTLS
• Multicast support: Yes
• Rack mounting: Yes
• Product colour: Black
• LED indicators: Activity/Link/Power/Speed
• Electromagnetic compatibility: CE A, VCCI A, FCC A, IC, BSMI
• Memory type: DDR3-SDRAM
• Internal memory: 2048
• Flash memory: 64
• Firmware upgradeable: Yes
• Noise level: 47.6
• Mean time between failures (MTBF): 743482.45
• Power supply included: Yes
• AC input voltage: 100 - 240
• Power consumption (max): 30.6
• Operating temperature (T-T): -5 - 50
• Storage temperature (T-T): -20 - 70
• Operating relative humidity (H-H): 0 - 95
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 104.346
• Width: 440
• Depth: 140
• Height: 44
• Weight: 3860
• Package width: 282
• Package depth: 563
• Package height: 89
• Package weight: 2966
• Certification: CB, UL, BSMI, CCC
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01436
• Unit Calculated Weight: 2.6
