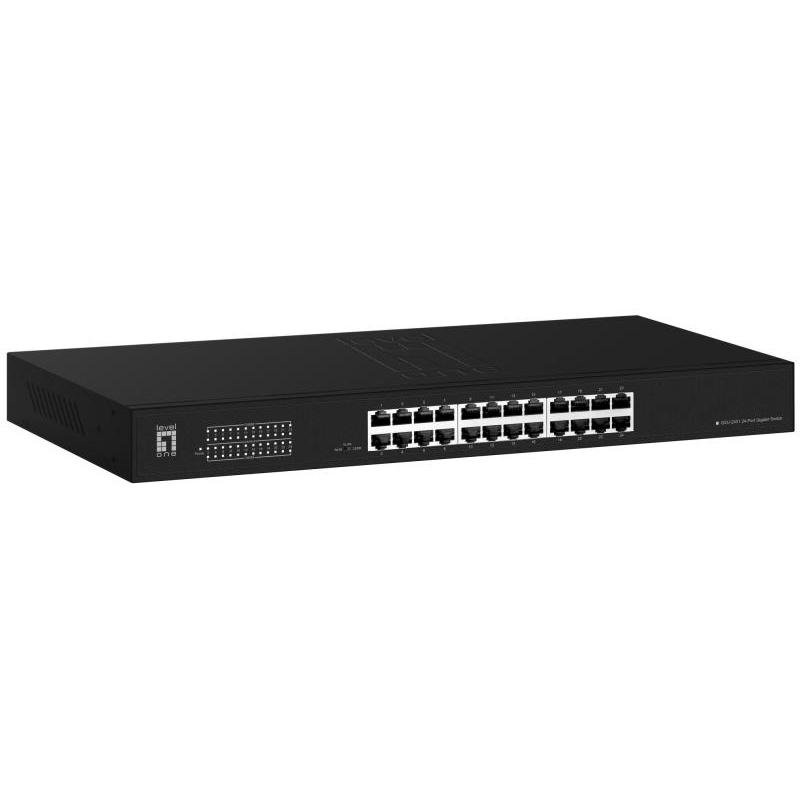

NET SWITCH 24PORT 10/100/1000M/GEU-2431 LEVELONE

NET SWITCH 24PORT 10/100/1000M/GEU-2431 LEVELONE
достава за 24h
NET SWITCH 24PORT 10/100/1000M/GEU-2431 LEVELONE
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 24
Врз основа на 0 коментари. - Напиши коментар
11,369ден.
  • Достапност: Има залиха
  • Бренд: LEVELONE
  • Шифра: 430889
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: LevelOne Switch 24x GE GEU-2431 19" Rack Mount Kit. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U
  • Vendor Homepage: https://www.level1.com/level1_en/geu-2431-24-port-gigabit-switch-53016403101
  • Name: NET SWITCH 24PORT 10/100/1000M/GEU-2431 LEVELONE
  • Category Code: SWI
  • Model name: GEU-2431
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • Power connector: AC-in jack
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Ethernet LAN data rates: 10,100,1000
  • MAC address table: 8000
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Built-in processor: Yes
  • Processor frequency: 500
  • Internal memory: 4.1
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Input current: 1
  • Power consumption (typical): 25
  • Operating temperature (T-T): -10 - 55
  • Storage temperature (T-T): -40 - 75
  • Operating relative humidity (H-H): 5 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Width: 438
  • Depth: 140
  • Height: 45
  • Weight: 1620
  • Cables included: AC
  • Quick start guide: Yes
  • Rack mount kit: Yes
  • Package type: Box
  • Package width: 218
  • Package depth: 497
  • Package height: 93
  • Package weight: 2220
  • Certification: CE, RoHS
  • Country of origin: China
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0101
  • Unit Calculated Weight: 3
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorYes
Cables includedAC
CertificationCE, RoHS
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Country of originChina
Depth140
Ethernet LAN data rates10,100,1000
Form factor1U
Full duplexYes
Gigabit Ethernet (copper) ports quantity24
Half duplexYes
Harmonized System (HS) code85176990
Height45
Input current1
Internal memory4.1
Jumbo frames9000
Jumbo frames supportYes
LED indicatorsYes
MAC address table8000
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H)5 - 90
Operating temperature (T-T)-10 - 55
Package depth497
Package height93
Package typeBox
Package weight2220
Package width218
Power connectorAC-in jack
Power consumption (typical)25
Power supply includedYes
Processor frequency500
Product colourBlack
Quick start guideYes
Rack mount kitYes
Rack mountingYes
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 75
SummaryLevelOne Switch 24x GE GEU-2431 19\" Rack Mount Kit. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U
Weight1620
Width438
Specs
Auto-negotiationYes
Category CodeSWI
Description

Gigabit Speeds: Take Your Data to the Next Level
GEU-2431 is a 24-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 48Gbps and bring lightning fast Gigabit connections to all your computers.

Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GEU-2431 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.

Plug and Play, Flexible and Easy
GEU-2431 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable.

  • 24 Gigabit Ethernet ports
  • 10/100/1000Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • 9K jumbo frames to increase data transfer rates
  • Supports 8K MAC address auto-learning and auto-aging
  • Supports 3 working modes to fullfil different applications

Model nameGEU-2431
NameNET SWITCH 24PORT 10/100/1000M/GEU-2431 LEVELONE
PictureUrlhttps://static.elko.cloud/ProductImages/2422ba1c-a847-4c2a-9186-4dd6a481fe30.Jpeg
Power sourceAC
Switch typeUnmanaged
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/2422ba1c-a847-4c2a-9186-4dd6a481fe30.Jpeg
Unit Calculated Volume0.0101
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://www.level1.com/level1_en/geu-2431-24-port-gigabit-switch-53016403101
