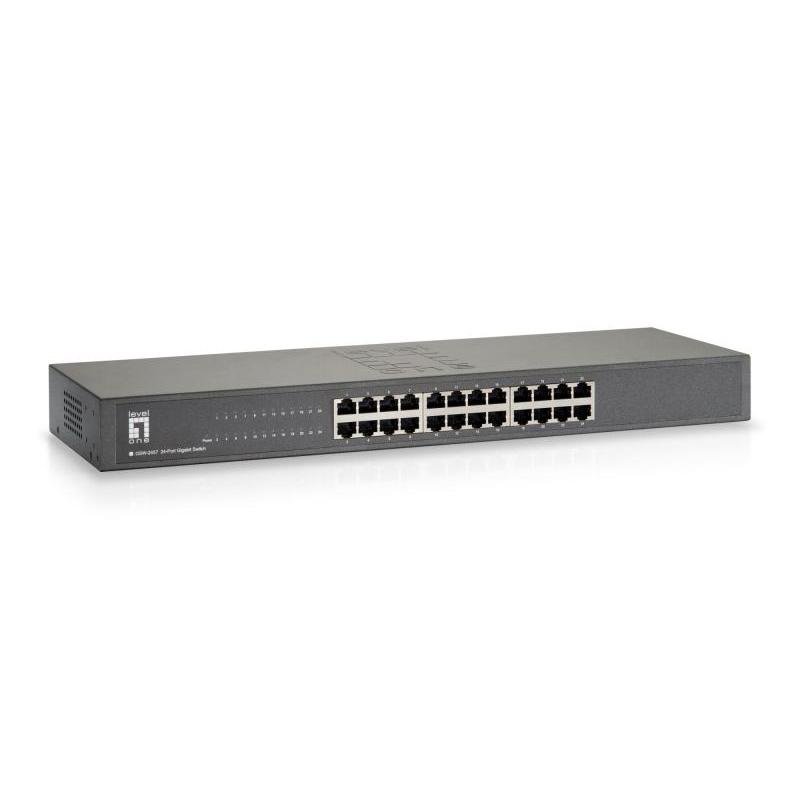

NET SWITCH 24PORT 10/100/1000M/GSW-2457 LEVELONE

NET SWITCH 24PORT 10/100/1000M/GSW-2457 LEVELONE
достава за 24h
NET SWITCH 24PORT 10/100/1000M/GSW-2457 LEVELONE
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Switching capacity: 48
Врз основа на 0 коментари. - Напиши коментар
11,501ден.
  • Достапност: Има залиха
  • Бренд: LEVELONE
  • Шифра: 430892
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: LevelOne 24-Port Gigabit Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u. Rack mounting
  • Vendor Homepage: https://www.level1.com/level1_en/gsw-2457-24-port-gigabit-ethernet-switch--524728
  • Name: NET SWITCH 24PORT 10/100/1000M/GSW-2457 LEVELONE
  • Category Code: SWI
  • Model name: GSW-2457
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3az/IEEE 802.3u
  • Auto MDI/MDI-X: Yes
  • MAC address auto-aging supported: Yes
  • MAC address auto-learning supported: Yes
  • Switching capacity: 48
  • Forwarding rate: 1.488
  • MAC address table: 8000
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Rack mounting: Yes
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Activity/Link/Power/Speed
  • Built-in processor: Yes
  • Flash memory: 4
  • AC input voltage: 100 - 240
  • AC input frequency: 50
  • Power consumption (typical): 15
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 90
  • Width: 44
  • Depth: 220
  • Height: 440
  • Weight: 2650
  • Cables included: AC
  • Quick start guide: Yes
  • Rack mount kit: Yes
  • Package type: Box
  • Package width: 224
  • Package depth: 486
  • Package height: 77
  • Package weight: 2200
  • Master (outer) cases per pallet layer: 22
  • Pallet gross length: 800
  • Pallet gross width: 1200
  • Pallet height (air): 1555
  • Country of origin: China
  • Master (outer) case width: 405
  • Master (outer) case length: 500
  • Harmonized System (HS) code: 85176990
  • Master (outer) case height: 240
  • Master (outer) case gross weight: 12000
  • Products per master (outer) case: 5
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.009016
  • Unit Calculated Weight: 3
Specifications
AC input frequency50
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorYes
Cables includedAC
Country of originChina
Depth220
Flash memory4
Gigabit Ethernet (copper) ports quantity24
Harmonized System (HS) code85176990
Height440
Housing materialMetal
Jumbo frames9000
Jumbo frames supportYes
LED indicatorsActivity/Link/Power/Speed
MAC address auto-aging supportedYes
MAC address auto-learning supportedYes
MAC address table8000
Master (outer) case gross weight12000
Master (outer) case height240
Master (outer) case length500
Master (outer) case width405
Master (outer) cases per pallet layer22
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3az/IEEE 802.3u
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 40
Package depth486
Package height77
Package typeBox
Package weight2200
Package width224
Pallet gross length800
Pallet gross width1200
Pallet height (air)1555
Power consumption (typical)15
Product colourBlack
Products per master (outer) case5
Quick start guideYes
Rack mount kitYes
Rack mountingYes
Storage relative humidity (H-H)5 - 90
Storage temperature (T-T)-40 - 70
Store-and-forwardYes
SummaryLevelOne 24-Port Gigabit Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u. Rack mounting
Weight2650
Width44
Specs
Category CodeSWI
Description

Gigabit Speeds: Take Your Data to the Next LevelGSW-2457 is a 24-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 48Gbps and bring lightning fast Gigabit connections to all your computers.Bandwidth hungry? Not a problem.What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-2457 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.Plug and Play, Flexible and EasyGSW-2457 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable.

  • 10/100BASE-TX UTP to 100BASE-FX copper to fiber media converter
  • Supports 8K MAC address auto-learning and auto-aging
  • 9K jumbo frames to increase data transfer rates
  • 24 Gigabit Ethernet ports
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • 19-inch metal housing
  • Fanless Design

Forwarding rate1.488
Model nameGSW-2457
NameNET SWITCH 24PORT 10/100/1000M/GSW-2457 LEVELONE
PictureUrlhttps://static.elko.cloud/ProductImages/9f57ff8d-5b76-4e4d-9399-4158ecdcef6f.Jpeg
Switch typeUnmanaged
Switching capacity48
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/9f57ff8d-5b76-4e4d-9399-4158ecdcef6f.Jpeg
Unit Calculated Volume0.009016
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://www.level1.com/level1_en/gsw-2457-24-port-gigabit-ethernet-switch--524728
