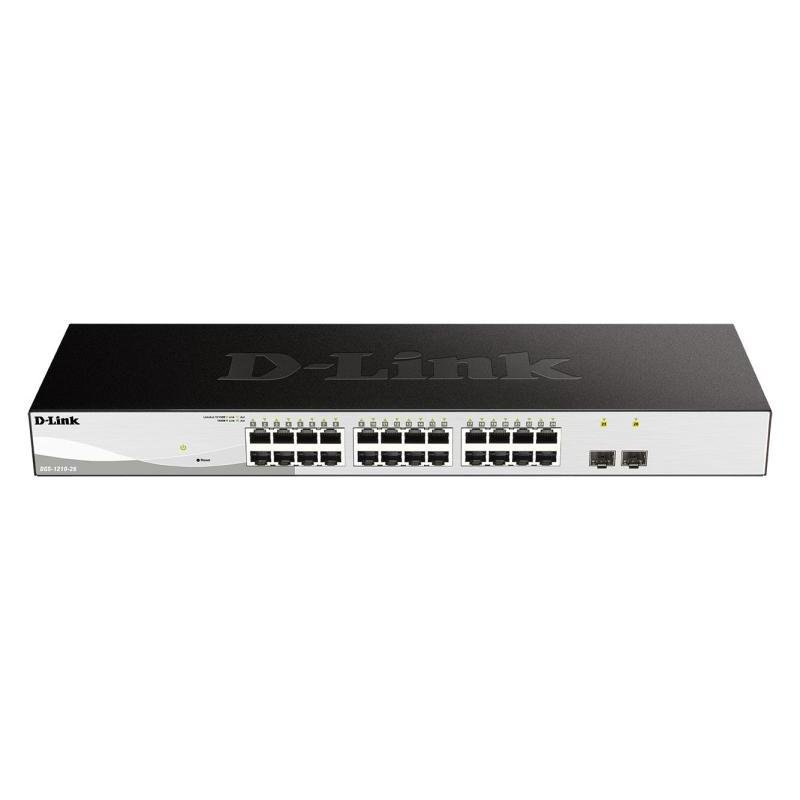

DGS-1210-26

DGS-1210-26
DGS-1210-26
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • SFP module slots quantity: 2
  • Switching capacity: 52
Врз основа на 0 коментари. - Напиши коментар
12,752ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 351199
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: D-Link 26-Port Gigabit Smart Managed Switch including 2 SFP ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U
  • Vendor Homepage: www.dlink.com/en/products/dgs-1210-26-26-port-gigabit-smart-managed-switch
  • Name: NET SWITCH 26PORT 1000 2SFP/DGS-1210-26 D-LINK
  • Category Code: SWI
  • Model: DGS-1210-26
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Traffic classification: Yes
  • System event log: Yes
  • MIB support: RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2
  • Console port: RJ-45
  • Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1v/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ah/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • 10G support: Yes
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Port mirroring: Yes
  • IP routing: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN/Tagged VLAN
  • Switching capacity: 52
  • Throughput: 38.7
  • MAC address table: 8000
  • DHCP features: DHCP client/DHCP server
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • BPDU filtering/protection: Yes
  • Loop protection: Yes
  • Security algorithms: 802.1x RADIUS/SNMP/SSH
  • SSH/SSL support: Yes
  • Multicast support: Yes
  • Rack mounting: Yes
  • Stackable: Yes
  • Form factor: 1U
  • Product colour: Black/Grey
  • LED indicators: Activity/Fan fail/Link/Power/Speed
  • Number of fans: 2
  • Safety: CCC, CE LVD, UL/cUL
  • Electromagnetic compatibility: FCC A, CE A, VCCI, C-Tick, BSMI, CCC
  • Memory type: DDR3-SDRAM
  • Internal memory: 128
  • Flash memory: 32
  • Mean time between failures (MTBF): 1082534
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (typical): 15.11
  • Operating temperature (T-T): -5 - 50
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 90
  • Heat dissipation: 51.57
  • Width: 440
  • Depth: 140
  • Height: 44
  • Weight: 2060
  • Package width: 249
  • Package depth: 493
  • Package height: 72
  • Package weight: 3132
  • Master (outer) cases per pallet (air): 24
  • Master (outer) cases per pallet (sea): 36
  • Pallet gross length: 1100
  • Pallet gross weight (air): 422364
  • Pallet gross weight (sea): 621296
  • Pallet gross width: 1200
  • Pallet height (air): 1303
  • Pallet height (sea): 1887
  • Products per pallet (air): 120
  • Products per pallet (sea): 180
  • Products per shipping (inner) case: 5
  • Shipping (inner) case gross weight: 16536
  • Shipping (inner) case height: 282
  • Shipping (inner) case length: 510
  • Shipping (inner) case net weight: 15660
  • Shipping (inner) case width: 381
  • Certification: IEC61000-4-5, RoHS
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00875
  • Unit Calculated Weight: 2.9
Specifications
10G supportYes
AC input frequency50 - 60
AC input voltage100 - 240
Access Control List (ACL)Yes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
BPDU filtering/protectionYes
Broadcast storm controlYes
CertificationIEC61000-4-5, RoHS
Console portRJ-45
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Depth140
DHCP featuresDHCP client/DHCP server
Electromagnetic compatibilityFCC A, CE A, VCCI, C-Tick, BSMI, CCC
Flash memory32
Flow control supportYes
Form factor1U
Harmonized System (HS) code85176990
Heat dissipation51.57
Height44
IGMP snoopingYes
Internal memory128
IP routingYes
LED indicatorsActivity/Fan fail/Link/Power/Speed
Link aggregationYes
Loop protectionYes
MAC address table8000
Master (outer) cases per pallet (air)24
Master (outer) cases per pallet (sea)36
Mean time between failures (MTBF)1082534
Memory typeDDR3-SDRAM
MIB supportRFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925
Multicast supportYes
Networking standardsIEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1v/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ah/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of fans2
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-5 - 50
Package depth493
Package height72
Package weight3132
Package width249
Pallet gross length1100
Pallet gross weight (air)422364
Pallet gross weight (sea)621296
Pallet gross width1200
Pallet height (air)1303
Pallet height (sea)1887
Port mirroringYes
Power consumption (typical)15.11
Product colourBlack/Grey
Products per pallet (air)120
Products per pallet (sea)180
Products per shipping (inner) case5
Quality of Service (QoS) supportYes
Rack mountingYes
Rate limitingYes
SafetyCCC, CE LVD, UL/cUL
Security algorithms802.1x RADIUS/SNMP/SSH
SFP module slots quantity2
Shipping (inner) case gross weight16536
Shipping (inner) case height282
Shipping (inner) case length510
Shipping (inner) case net weight15660
Shipping (inner) case width381
Spanning tree protocolYes
SSH/SSL supportYes
StackableYes
Storage relative humidity (H-H)5 - 90
Storage temperature (T-T)-40 - 70
SummaryD-Link 26-Port Gigabit Smart Managed Switch including 2 SFP ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U
Switch layerL2
System event logYes
Throughput38.7
Traffic classificationYes
Virtual LAN featuresPort-based VLAN/Tagged VLAN
VLAN supportYes
Web-based managementYes
Weight2060
Width440
Specs
Auto-negotiationYes
Category CodeSWI
ModelDGS-1210-26
NameNET SWITCH 26PORT 1000 2SFP/DGS-1210-26 D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/a557d473-cacb-41bd-872a-a33c52d45d86.Jpeg
Switch typeManaged
Switching capacity52
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/a557d473-cacb-41bd-872a-a33c52d45d86.Jpeg
Unit Calculated Volume0.00875
Unit Calculated Weight2.9
Units per Shipping Box1
Vendor Homepagewww.dlink.com/en/products/dgs-1210-26-26-port-gigabit-smart-managed-switch
