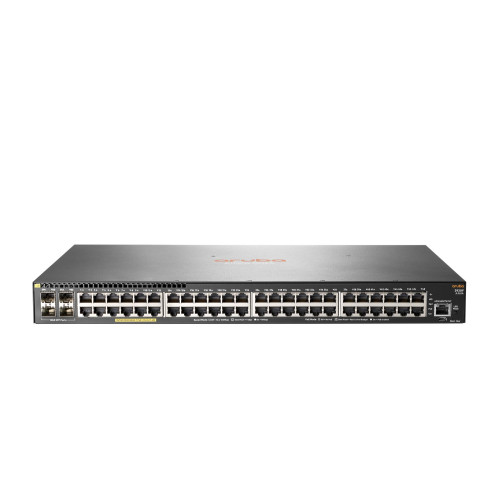

NET SWITCH 48PORT 4SFP/POE+ 2930F JL262A ARUBA BY HPE

Technical Specifications

• Summary: HPE Aruba Networking Aruba 2930F 48G PoE+ 4SFP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32768 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
• Vendor Homepage: https://www.hp.com/
• Name: NET SWITCH 48PORT 4SFP/POE+ 2930F JL262A ARUBA BY HPE
• Category Code: SWI
• Model name: Aruba 2930F 48G PoE+ 4SFP
• Switch type: Managed
• Switch layer: L3
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Traffic classification: Yes
• Basic switching RJ-45 Ethernet ports quantity: 48
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP module slots quantity: 4
• Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3u
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Full duplex: Yes
• IP routing: Yes
• Routing entries: 10000
• Auto MDI/MDI-X: Yes
• Auto-sensing: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Rate limiting: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Switching capacity: 104
• Throughput: 77.4
• MAC address table: 32768
• Latency (1 Gbps): 3.8
• Jumbo frames support: Yes
• Packet buffer memory: 12.38
• DHCP features: DHCP server
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• SSH/SSL support: Yes
• Multicast support: Yes
• Routing protocols: IP
• IPv4 FIB entries: 10000
• IPv6 FIB entries: 5000
• Rack mounting: Yes
• Stackable: Yes
• Form factor: 1U
• Product colour: Grey
• Built-in processor: Yes
• Processor model: ARM Cortex-A9
• Processor frequency: 1016
• Memory type: DDR3-SDRAM
• Internal memory: 1024
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (typical): 48.6
• Power consumption (max): 459
• Power over Ethernet (PoE): Yes
• Total Power over Ethernet (PoE) budget: 370
• Operating temperature (T-T): 0 - 45
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 15 - 95
• Heat dissipation: 1566
• Width: 442.5
• Depth: 304.2
• Height: 43.9
• Weight: 4460
• Harmonized System (HS) code: 85176990
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.03
• Unit Calculated Weight: 4
