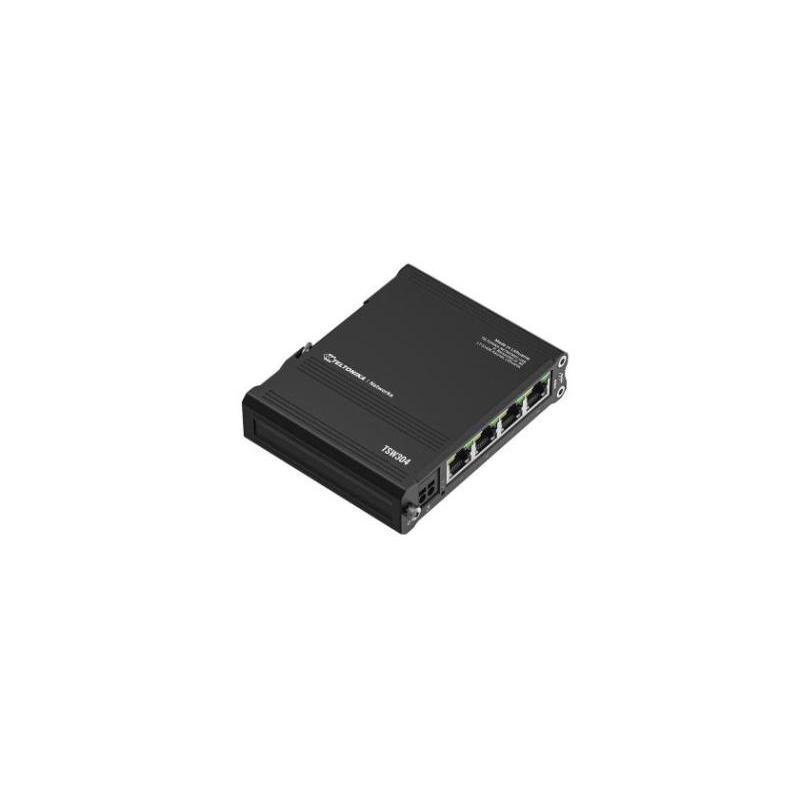

NET SWITCH 4PORT 10/100/1000M/TSW304 TELTONIKA

Technical Specifications

• Summary: Teltonika TSW304. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 2000 entries, Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. DC input voltage: 7 - 57 V. Power over Ethernet (PoE). Wall mountable
• Vendor Homepage: https://teltonika-networks.com/products/switches/tsw304
• Name: NET SWITCH 4PORT 10/100/1000M/TSW304 TELTONIKA
• Category Code: SWI
• Model name: TSW304
• Basic switching RJ-45 Ethernet ports quantity: 4
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u
• Auto MDI/MDI-X: Yes
• Ethernet LAN data rates: 10,100,1000
• Switching capacity: 8
• MAC address table: 2000
• Jumbo frames support: Yes
• Jumbo frames: 9216
• Packet buffer memory: 0.128
• Product colour: Black
• Housing material: Aluminium
• LED indicators: Power/Status
• DIN rail mounting: Yes
• International Protection (IP) code: IP30
• Wall mountable: Yes
• Power source: AC/DC
• DC input voltage: 7 - 57
• Input voltage: 9 - 40
• Power consumption (typical): 0.26
• Power consumption (max): 1.44
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) type supported: Passive PoE
• Operating temperature (T-T): -40 - 75
• Operating relative humidity (H-H): 10 - 90
• Width: 102
• Depth: 81.5
• Height: 25
• Weight: 210
• Certification: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.000945
• Unit Calculated Weight: 0.3
