NET SWITCH 4PORT POE+ T8504-E/01449-001 AXIS

NET SWITCH 4PORT POE+ T8504-E/01449-001 AXIS
NET SWITCH 4PORT POE+ T8504-E/01449-001 AXIS
  • Switch type: Managed
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • SFP module slots quantity: 1
  • Switching capacity: 20
Врз основа на 0 коментари. - Напиши коментар
89,476ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 249521
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01449-001. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at. Power connector: DC-in jack. Power over Ethernet (PoE)
  • Vendor Homepage: https://www.axis.com/gb/en/products/axis-t8504e-outdoor-poe-switch
  • Name: NET SWITCH 4PORT POE+ T8504-E/01449-001 AXIS
  • Category Code: SWI
  • Switch type: Managed
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 1
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.1Q/IEEE 802.3af/IEEE 802.3at
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • VLAN support: Yes
  • Switching capacity: 20
  • Throughput: 14.9
  • MAC address table: 8000
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Password protection: Yes
  • Security algorithms: HTTPS/SNMP/SNMPv3/SSH
  • Supported network protocols: IPv4, IPv6, HTTP, HTTPS, Bonjour, SNMP v1/v2c/v3, DNS, TCP, UDP, IGMP, ICMP, ARP, SSH, RADIUS, TACACS, TELNET, Syslog, 802.1Q (VLAN)
  • Product colour: White
  • Housing material: Aluminium
  • International Protection (IP) code: IP67
  • Safety: IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EAC
  • Electromagnetic compatibility: EN 55032 B, EN 55024, FCC 15 B B, RCM AS/NZS CISPR 32 B, EN 61000-4-5 5, EN 50121-4, IEC 62236-4
  • Plug and Play: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Surge protection: Yes
  • Surge protection voltage: 6
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) power per port: 60
  • Total Power over Ethernet (PoE) budget: 150
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 85
  • Operating relative humidity (H-H): 0 - 90
  • Storage relative humidity (H-H): 0 - 90
  • Width: 240
  • Depth: 166
  • Height: 72
  • Weight: 2900
  • User guide: Yes
  • Certification: IEC 60529 IP67, NEMA 250 4X, GR-1089-CORE 4 ITU-T K.20
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00909
  • Unit Calculated Weight: 3.01
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationIEC 60529 IP67, NEMA 250 4X, GR-1089-CORE 4 ITU-T K.20
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Depth166
Electromagnetic compatibilityEN 55032 B, EN 55024, FCC 15 B B, RCM AS/NZS CISPR 32 B, EN 61000-4-5 5, EN 50121-4, IEC 62236-4
Harmonized System (HS) code85176990
Height72
Housing materialAluminium
International Protection (IP) codeIP67
Jumbo frames9216
Jumbo frames supportYes
MAC address table8000
Networking standardsIEEE 802.1Q/IEEE 802.3af/IEEE 802.3at
Operating relative humidity (H-H)0 - 90
Operating temperature (T-T)-40 - 50
Password protectionYes
Plug and PlayYes
Power connectorDC-in jack
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port60
Product colourWhite
SafetyIEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EAC
Security algorithmsHTTPS/SNMP/SNMPv3/SSH
SFP module slots quantity1
Storage relative humidity (H-H)0 - 90
Storage temperature (T-T)-40 - 85
SummaryAxis 01449-001. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at. Power connector: DC-in jack. Power over Ethernet (PoE)
Supported network protocolsIPv4, IPv6, HTTP, HTTPS, Bonjour, SNMP v1/v2c/v3, DNS, TCP, UDP, IGMP, ICMP, ARP, SSH, RADIUS, TACACS, TELNET, Syslog, 802.1Q (VLAN)
Surge protection voltage6
Throughput14.9
Total Power over Ethernet (PoE) budget150
User guideYes
VLAN supportYes
Weight2900
Width240
Specs
Category CodeSWI
Description

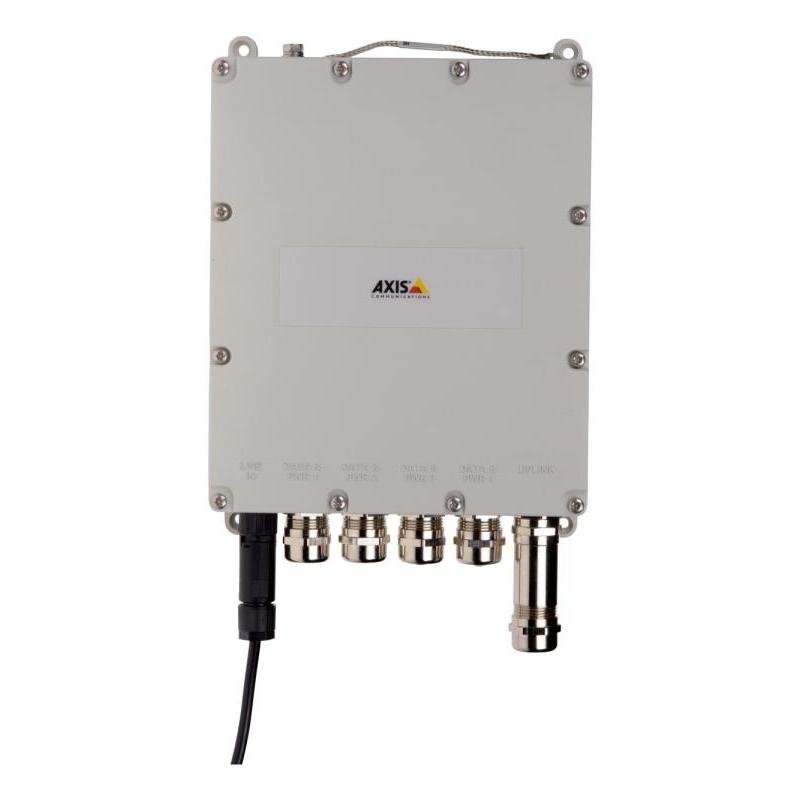

AXIS T8504-E Outdoor PoE Switch is an easy-to-install, compact outdoor switch enabling connection of four PoE-powered devices. The SFP port enables fiber connectivity for long distance connections, and remote management ensures easy maintenance, reducing support cost and customer down time. AXIS T8504-E is a robust system component with a wide temperature range, surge protection, and a dust and water-resistant enclosure which remains assembled during installation. With up to 60 W per port and a total power budget of 150 W, the switch is compatible with all Axis network devices.

  • 60 W per port, total 150 W; Plug-and-play installation; Rugged enclosure; SFP port; VAPIX® support

NameNET SWITCH 4PORT POE+ T8504-E/01449-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/56f2ab88-1d64-42e6-b027-1398f7df24ce.Jpeg
Surge protectionYes
Switch typeManaged
Switching capacity20
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/56f2ab88-1d64-42e6-b027-1398f7df24ce.Jpeg
Unit Calculated Volume0.00909
Unit Calculated Weight3.01
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/gb/en/products/axis-t8504e-outdoor-poe-switch
