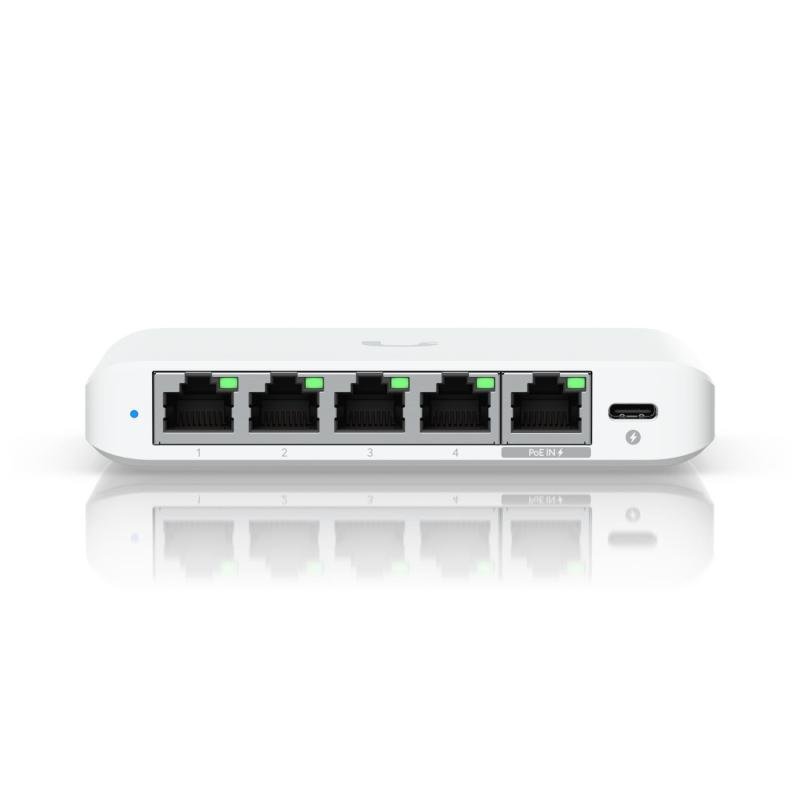

USW-FLEX-2.5G-5

Technical Specifications

• Summary: Ubiquiti UniFi Flex Mini 2.5G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Switching capacity: 25 Gbit/s. DC input voltage: 5 V. Power connector: USB. Power over Ethernet (PoE). Form factor: Desktop
• Vendor Homepage: https://eu.store.ui.com/eu/en/products/usw-flex-2-5g-5
• Name: NET SWITCH 5PORT 1000M/POE USW-FLEX-2.5G-5 UBIQUITI
• Category Code: SWI
• Model: USW-FLEX-2.5G-5
• Model name: Flex Mini 2.5G
• Switch type: Managed
• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
• 2.5G Ethernet (copper) ports quantity: 5
• USB Type-C ports quantity: 1
• Power connector: USB
• Copper ethernet cabling technology: 2.5GBASE-T
• Port mirroring: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Rate limiting: Yes
• Switching capacity: 25
• Throughput: 12.5
• Forwarding rate: 18.6
• Jumbo frames support: Yes
• Multicast support: Yes
• Form factor: Desktop
• Product colour: White
• Housing material: Polycarbonate (PC)
• Reset button: Yes
• LED indicators: Activity/Power/Progress
• Minimum system requirements: UniFi Network Version 8.4.62 and later
• Power source: AC/DC/PoE
• Power supply included: Yes
• DC input voltage: 5
• Input current: 1
• Power consumption (max): 5
• Power plug type: Type A
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) voltage: 57
• Power over Ethernet (PoE) power per port: 6.4
• Networking features: STP / RSTP with priorities and port-level disable, Egress rate limit
• Operating temperature (T-T): -20 - 45
• Operating relative humidity (H-H): 10 - 90
• Width: 117.1
• Depth: 90
• Height: 21.2
• Weight: 206
• AC adapter included: Yes
• Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
• Certification: CE, FCC, IC
• Units per Shipping Box: 18
• Unit Calculated Volume: 0.001429
• Unit Calculated Weight: 0.456
