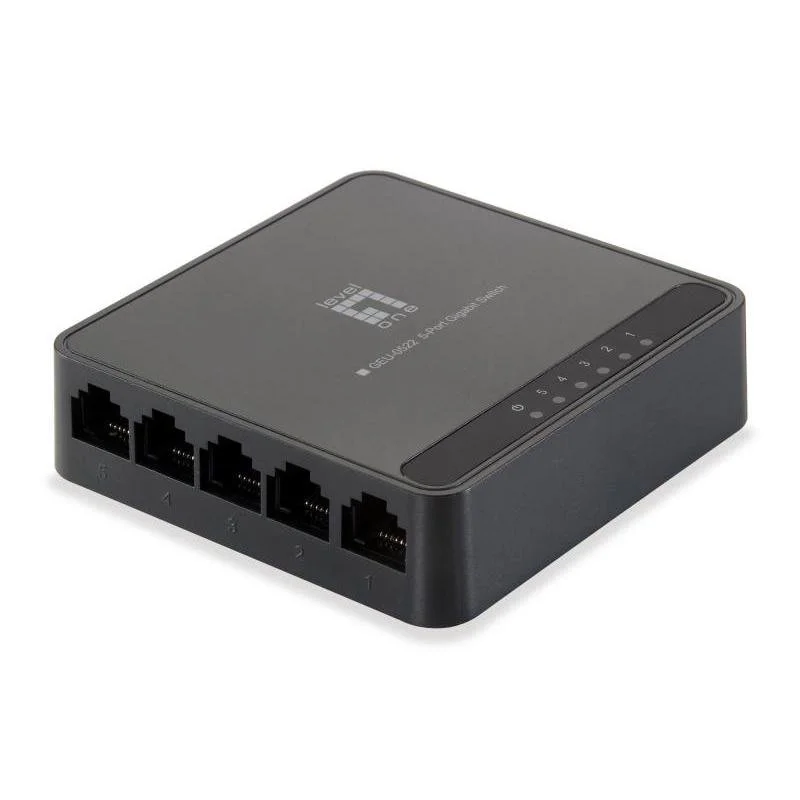

NET SWITCH 5PORT 10/100/1000M/GEU-0522 LEVELONE

NET SWITCH 5PORT 10/100/1000M/GEU-0522 LEVELONE
достава за 24h
NET SWITCH 5PORT 10/100/1000M/GEU-0522 LEVELONE
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Switching capacity: 10
Врз основа на 0 коментари. - Напиши коментар
1,499ден.
  • Достапност: Има залиха
  • Бренд: LEVELONE
  • Шифра: 428814
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: LevelOne 5-Port Gigabit Switch. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
  • Vendor Homepage: https://global.level1.com/Switch/GEU-0522/p-4001.htm
  • Name: NET SWITCH 5PORT 10/100/1000M/GEU-0522 LEVELONE
  • Category Code: SWI
  • Model name: GEU-0522
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-T/10BASE-T
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • MAC address auto-aging supported: Yes
  • MAC address auto-learning supported: Yes
  • Switching capacity: 10
  • MAC address table: 1000
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet forwarding rate (1 Gbps): 1488100
  • Packet forwarding rate (10 Mbps): 14880
  • Packet forwarding rate (100 Mbps): 148810
  • Product colour: Black
  • LED indicators: Activity/Link/Power
  • Buffer size: 64
  • Input current: 0.6
  • Input voltage: 5
  • Operating temperature (T-T): 0 - 50
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 90
  • Width: 86
  • Depth: 23
  • Height: 89
  • Weight: 71.4
  • Quick start guide: Yes
  • AC adapter included: Yes
  • Package type: Box
  • Package width: 95
  • Package depth: 82
  • Package height: 98
  • Package weight: 184
  • Certification: CE, FCC
  • Country of origin: China
  • Master (outer) case width: 495
  • Master (outer) case length: 191
  • Harmonized System (HS) code: 85176990
  • Master (outer) case height: 516
  • Master (outer) case gross weight: 10200
  • Products per master (outer) case: 50
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.000896
  • Unit Calculated Weight: 0.3
Specifications
AC adapter includedYes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Buffer size64
CertificationCE, FCC
Copper ethernet cabling technology1000BASE-T/100BASE-T/10BASE-T
Country of originChina
Depth23
Full duplexYes
Harmonized System (HS) code85176990
Height89
Input current0.6
Input voltage5
Jumbo frames9000
Jumbo frames supportYes
LED indicatorsActivity/Link/Power
MAC address auto-aging supportedYes
MAC address auto-learning supportedYes
MAC address table1000
Master (outer) case gross weight10200
Master (outer) case height516
Master (outer) case length191
Master (outer) case width495
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 50
Package depth82
Package height98
Package typeBox
Package weight184
Package width95
Packet forwarding rate (1 Gbps)1488100
Packet forwarding rate (10 Mbps)14880
Packet forwarding rate (100 Mbps)148810
Product colourBlack
Products per master (outer) case50
Quick start guideYes
Storage relative humidity (H-H)5 - 90
Storage temperature (T-T)-40 - 70
Store-and-forwardYes
SummaryLevelOne 5-Port Gigabit Switch. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Weight71.4
Width86
Specs
Auto-negotiationYes
Category CodeSWI
Description

The LevelOne GEU-0522 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.

  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Supports 4K MAC address auto-learning and auto-aging
  • Quick and easy installation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • Package Contents

Model nameGEU-0522
NameNET SWITCH 5PORT 10/100/1000M/GEU-0522 LEVELONE
PictureUrlhttps://static.elko.cloud/ProductImages/d2ab67ab-245d-4558-9065-6138f0a56a9d.Jpeg
Switching capacity10
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/d2ab67ab-245d-4558-9065-6138f0a56a9d.Jpeg
Unit Calculated Volume0.000896
Unit Calculated Weight0.3
Units per Shipping Box1
Vendor Homepagehttps://global.level1.com/Switch/GEU-0522/p-4001.htm
