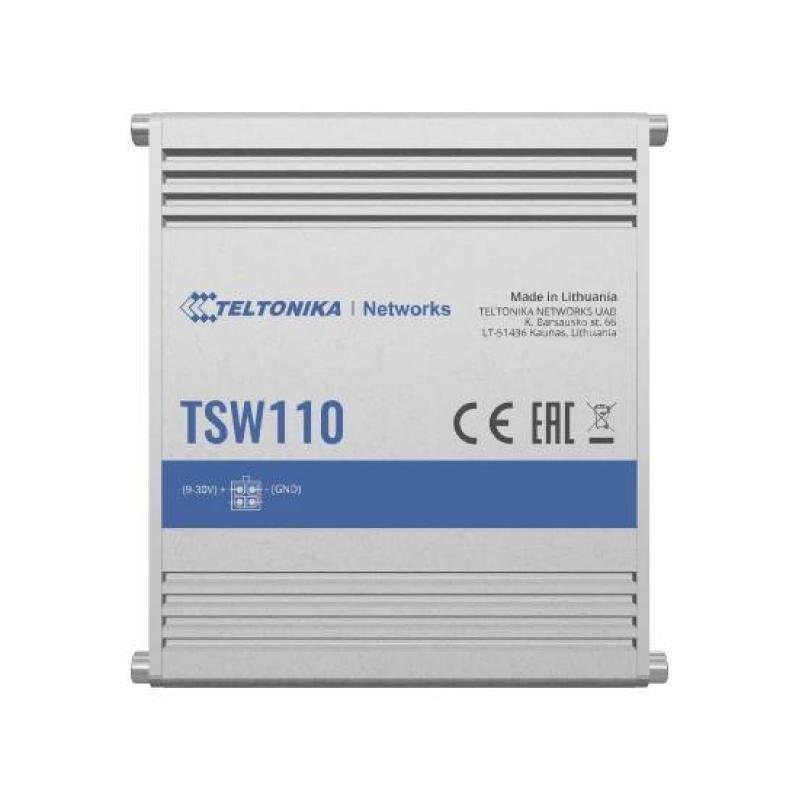

NET SWITCH 5PORT 10/100/1000/TSW110 TELTONIKA

NET SWITCH 5PORT 10/100/1000/TSW110 TELTONIKA
достава за 24h
NET SWITCH 5PORT 10/100/1000/TSW110 TELTONIKA
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Switching capacity: 10
Врз основа на 0 коментари. - Напиши коментар
3,424ден.
  • Достапност: Има залиха
  • Бренд: TELTONIKA
  • Шифра: 423898
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Teltonika TSW110. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. DC input voltage: 30 V. Power over Ethernet (PoE)
  • Vendor Homepage: https://teltonika-networks.com/product/tsw110/
  • Name: NET SWITCH 5PORT 10/100/1000/TSW110 TELTONIKA
  • Category Code: SWI
  • Model name: TSW110
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10,100,1000
  • Switching capacity: 10
  • MAC address table: 2000
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Packet buffer memory: 0.128
  • Product colour: Blue/Grey
  • Housing material: Aluminium
  • LED indicators: Yes
  • DIN rail mounting: Yes
  • International Protection (IP) code: IP30
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • DC input voltage: 30
  • Power consumption (typical): 1.8
  • Power over Ethernet (PoE): Yes
  • Operating temperature (T-T): -40 - 75
  • Operating relative humidity (H-H): 10 - 90
  • Width: 100
  • Depth: 85
  • Height: 30
  • Weight: 227
  • Quick start guide: Yes
  • Package type: Box
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001785
  • Unit Calculated Weight: 1
Specifications
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
DC input voltage30
Depth85
DIN rail mountingYes
Ethernet LAN data rates10,100,1000
Height30
Housing materialAluminium
International Protection (IP) codeIP30
Jumbo frames9216
Jumbo frames supportYes
LED indicatorsYes
MAC address table2000
Networking standardsIEEE 802.3/IEEE 802.3az/IEEE 802.3u
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-40 - 75
Package typeBox
Packet buffer memory0.128
Power consumption (typical)1.8
Power over Ethernet (PoE)Yes
Power supply includedYes
Product colourBlue/Grey
Quick start guideYes
SummaryTeltonika TSW110. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. DC input voltage: 30 V. Power over Ethernet (PoE)
Weight227
Width100
Specs
Category CodeSWI
Description

PLUG-N-PLAY

No additional configuration needed

DURABILITY

Rugged aluminium housing

MOUNTING

DIN rail and surface mounting options

STATUS LEDS

1 x Power, 10 x Ethernet

9-30 V

Wide range of supported power supply voltages

GIGABIT ETH

5 x Gigabit Ethernet with speeds up to 1000 Mbps

  • TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100
  • Possible to power up through the first LAN port
  • It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution
  • It offers a wide range of supported power supply voltages (9-30 V)
  • Ideal for professional high bandwidth applications to provide reliable data connection

Model nameTSW110
NameNET SWITCH 5PORT 10/100/1000/TSW110 TELTONIKA
PictureUrlhttps://static.elko.cloud/ProductImages/4b9efba9-4ef0-460c-aae7-24ac3d2a127b.Jpeg
Switch typeUnmanaged
Switching capacity10
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/4b9efba9-4ef0-460c-aae7-24ac3d2a127b.Jpeg
Unit Calculated Volume0.001785
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://teltonika-networks.com/product/tsw110/
