NET SWITCH 5PORT 10/100/TSF010 TELTONIKA

NET SWITCH 5PORT 10/100/TSF010 TELTONIKA
достава за 24h
NET SWITCH 5PORT 10/100/TSF010 TELTONIKA
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Switching capacity: 10
Врз основа на 0 коментари. - Напиши коментар
2,655ден.
  • Достапност: Има залиха
  • Бренд: TELTONIKA
  • Шифра: 423445
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Teltonika NETWORKS TSF010 Flat Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Form factor: DIN rail
  • Vendor Homepage: https://teltonika-networks.com/products/ethernet-switches/TSF010/
  • Name: NET SWITCH 5PORT 10/100/TSF010 TELTONIKA
  • Category Code: SWI
  • Model name: TSF010
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Fast Ethernet (copper) ports quantity: 5
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Switching capacity: 10
  • MAC address table: 2048
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Form factor: DIN rail
  • Product colour: Black
  • Housing material: Aluminium
  • DIN rail mounting: Yes
  • International Protection (IP) code: IP30
  • Power source: DC
  • Input voltage: 7 - 57
  • Power consumption (typical): 1
  • Power consumption (max): 1.5
  • Operating temperature (T-T): -40 - 75
  • Operating relative humidity (H-H): 10 - 90
  • Width: 113
  • Depth: 50
  • Height: 28
  • Weight: 142
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0002695
  • Unit Calculated Weight: 0.4
Specifications
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Depth50
DIN rail mountingYes
Fast Ethernet (copper) ports quantity5
Form factorDIN rail
Full duplexYes
Height28
Housing materialAluminium
Input voltage7 - 57
International Protection (IP) codeIP30
Jumbo frames9216
Jumbo frames supportYes
MAC address table2048
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-40 - 75
Power consumption (max)1.5
Power consumption (typical)1
Product colourBlack
SummaryTeltonika NETWORKS TSF010 Flat Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Form factor: DIN rail
Weight142
Width113
Specs
Category CodeSWI
Description

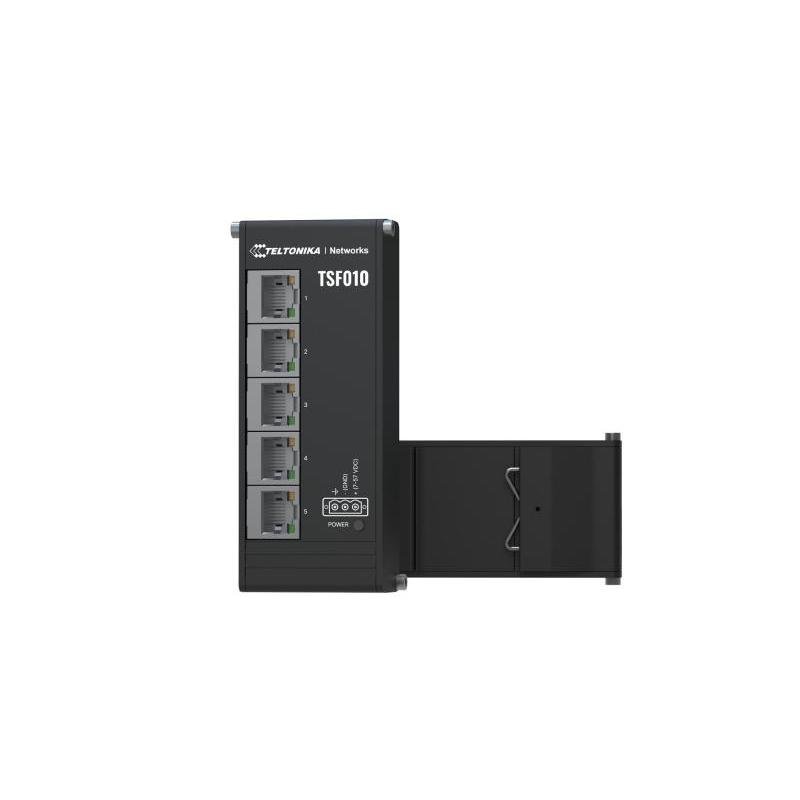

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

  • 3-PIN POWER INPUT
  • Flexible and tailor-made for industrial use
  • FLAT & COMPACT
  • Flat and compact design weighing only 142 g
  • INTEGRATED DIN RAIL BRACKET
  • Easy mounting for plug-and-play deployment
  • 7-57 VDC
  • Suitable voltage range for industrial applications

Model nameTSF010
NameNET SWITCH 5PORT 10/100/TSF010 TELTONIKA
PictureUrlhttps://static.elko.cloud/ProductImages/85b524de-f106-4624-8c4f-d8866dce4209.Jpeg
Power sourceDC
Switch typeUnmanaged
Switching capacity10
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/85b524de-f106-4624-8c4f-d8866dce4209.Jpeg
Unit Calculated Volume0.0002695
Unit Calculated Weight0.4
Units per Shipping Box1
Vendor Homepagehttps://teltonika-networks.com/products/ethernet-switches/TSF010/
