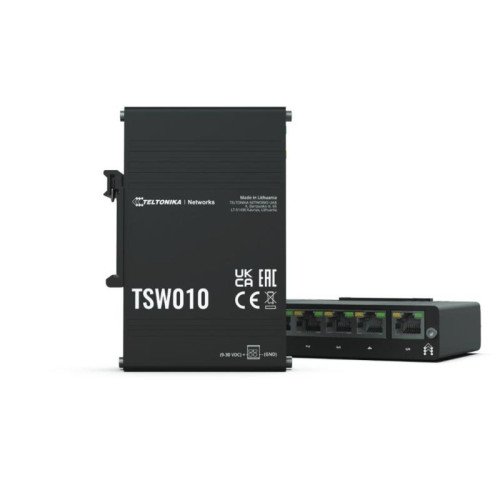

NET SWITCH 5PORT 10/100/TSW010 TELTONIKA

Technical Specifications

• Summary: Teltonika TSW010 DIN Rain Switch 5 x. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Power connector: DC-in jack. Power over Ethernet (PoE)
• Vendor Homepage: https://teltonika-networks.com/industries/use-cases/bringing-automation-to-textile-industry/
• Name: NET SWITCH 5PORT 10/100/TSW010 TELTONIKA
• Category Code: SWI
• Model name: TSW010
• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
• Power connector: DC-in jack
• Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u
• Auto MDI/MDI-X: Yes
• Ethernet LAN data rates: 10,100
• Switching capacity: 1
• MAC address table: 2000
• Jumbo frames support: Yes
• Jumbo frames: 2048
• Packet buffer memory: 0.128
• Product colour: Black
• Housing material: Aluminium
• LED indicators: Yes
• DIN rail mounting: Yes
• International Protection (IP) code: IP30
• Power source: DC/PoE
• Input voltage: 9 - 30
• Power consumption (typical): 0.3
• Power consumption (max): 0.9
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) type supported: Passive PoE
• Power over Ethernet (PoE) ports quantity: 1
• Operating temperature (T-T): -40 - 75
• Operating relative humidity (H-H): 10 - 90
• Width: 113.1
• Depth: 80.5
• Height: 27.4
• Weight: 146.5
• Certification: CE, REACH, RoHS, WEEE UKCA, FCC, IC, CB, RCM
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0004095
• Unit Calculated Weight: 0.3
