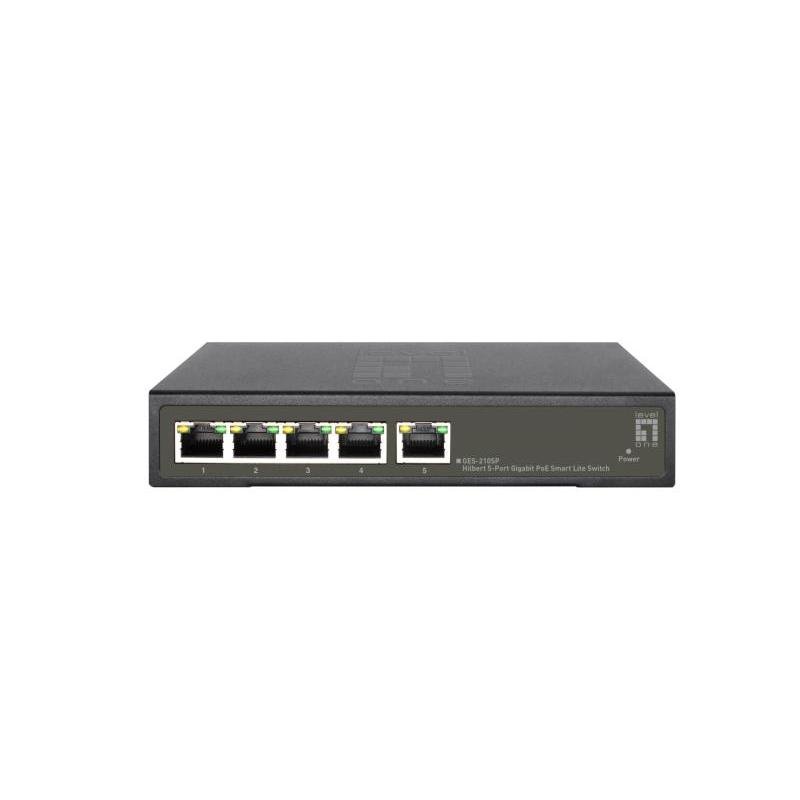

NET SWITCH 5PORT 4POE 1000M/GES-2105P LEVELONE

NET SWITCH 5PORT 4POE 1000M/GES-2105P LEVELONE
достава за 24h
NET SWITCH 5PORT 4POE 1000M/GES-2105P LEVELONE
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Switching capacity: 10
Врз основа на 0 коментари. - Напиши коментар
8,027ден.
  • Достапност: Има залиха
  • Бренд: LEVELONE
  • Шифра: 430884
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: LevelOne Hilbert 5-Port Gigabit PoE Smart Lite Switch, 802.3at/af PoE, 4 PoE Outputs, 60W PoE Power Budget. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)
  • Vendor Homepage: https://www.level1.com/level1_en/ges-2105p-hilbert-5-port-gigabit-poe-smart-lite-switch-802-3at-af-poe-4-poe-outputs-60w-poe-power-budget-52090703101
  • Name: NET SWITCH 5PORT 4POE 1000M/GES-2105P LEVELONE
  • Category Code: SWI
  • Model name: GES-2105P
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • MAC address auto-aging supported: Yes
  • MAC address auto-learning supported: Yes
  • Rate limiting: Yes
  • VLAN support: Yes
  • Virtual LAN features: Tagged VLAN
  • Number of VLANs: 32
  • Switching capacity: 10
  • MAC address table: 2000
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 1.5
  • IGMP snooping: Yes
  • Multicast support: Yes
  • Product colour: Black
  • LED indicators: Yes
  • Flash memory: 2
  • Noise level: 0
  • Mean time between failures (MTBF): 43800
  • Power source: DC/PoE
  • Power supply included: Yes
  • Input current: 1.2
  • Input voltage: 54
  • Power consumption (max): 65
  • Surge protection: Yes
  • Surge protection voltage: 8
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 4
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 60
  • Operating temperature (T-T): 0 - 45
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Heat dissipation: 23.88
  • Width: 160
  • Depth: 95
  • Height: 29
  • Weight: 400
  • Cables included: AC
  • Quick start guide: Yes
  • AC adapter included: Yes
  • Package type: Box
  • Package width: 310
  • Package depth: 230
  • Package height: 65
  • Package weight: 920
  • Sustainability compliance: Yes
  • Compliance certificates: CE/RoHS
  • Master (outer) cases per pallet (air): 18
  • Pallet gross length: 800
  • Pallet gross width: 1200
  • Pallet height (air): 1584
  • Certification: UKCA, FCC Class A
  • Master (outer) case net weight: 600
  • Country of origin: China
  • Master (outer) case width: 350
  • Master (outer) case length: 330
  • Master (outer) case height: 480
  • Master (outer) case gross weight: 9800
  • Products per master (outer) case: 10
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.005376
  • Unit Calculated Weight: 1
Specifications
AC adapter includedYes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
Cables includedAC
CertificationUKCA, FCC Class A
Compliance certificatesCE/RoHS
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Country of originChina
Depth95
Flash memory2
Flow control supportYes
Full duplexYes
Half duplexYes
Heat dissipation23.88
Height29
IGMP snoopingYes
Input current1.2
Input voltage54
Jumbo frames9000
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
MAC address auto-aging supportedYes
MAC address auto-learning supportedYes
MAC address table2000
Master (outer) case gross weight9800
Master (outer) case height480
Master (outer) case length330
Master (outer) case net weight600
Master (outer) case width350
Master (outer) cases per pallet (air)18
Mean time between failures (MTBF)43800
Multicast supportYes
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Noise level0
Number of queues4
Number of VLANs32
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 45
Package depth230
Package height65
Package typeBox
Package weight920
Package width310
Packet buffer memory1.5
Pallet gross length800
Pallet gross width1200
Pallet height (air)1584
Port mirroringYes
Power consumption (max)65
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port30
Power over Ethernet plus (PoE+) ports quantity4
Power supply includedYes
Product colourBlack
Products per master (outer) case10
Quality of Service (QoS) supportYes
Quick start guideYes
Rate limitingYes
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 70
SummaryLevelOne Hilbert 5-Port Gigabit PoE Smart Lite Switch, 802.3at/af PoE, 4 PoE Outputs, 60W PoE Power Budget. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)
Surge protection voltage8
Sustainability complianceYes
Switch layerL2
Total Power over Ethernet (PoE) budget60
Virtual LAN featuresTagged VLAN
VLAN supportYes
Web-based managementYes
Weight400
Width160
Specs
Auto-negotiationYes
Category CodeSWI
Description

The LevelOne GES-2105P Hilbert gigabit PoE smart lite switch is a next-generation Ethernet Switch offering powerful better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. GES-2105P delivers 5 (10M/100M/1G) RJ45 with 4 PoE+ (Support 802.3at/af, and total up to 60W) ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2105P provides high HW performance and environment flexibility for Enterprises. GES-2105P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

  • "4 PoE-Plus Gigabit Ethernet ports supports PoE Watchdog
  • Total PoE power budget: 60W, up to 30W per port
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Supports 2K MAC address auto-learning and auto-aging
  • 9K jumbo frames to increase data transfer rates
  • IP Multicast Filtering through IGMP Snooping V1 / V2
  • 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
  • IEEE 802.1p QoS with 4 priority queues
  • Supports unknown unicast / broadcast / multicast storm control
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • 4KV surge protection, 6KV contact / 8KV air ESD protection
  • Web-based and smart lite Management
  • Supports LevelOne IP Locator for easier IP management."
