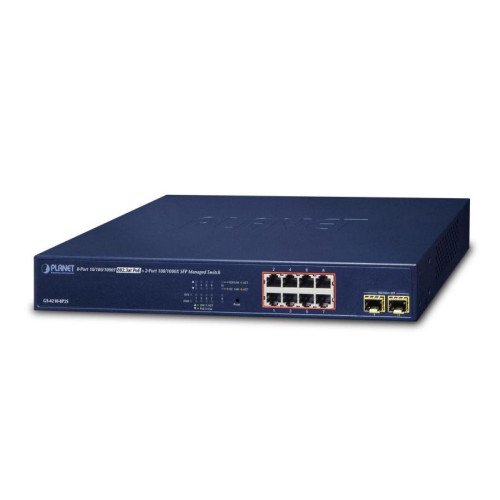

NET SWITCH 8PORT 1000M POE+/GS-4210-8P2S PLANET

Technical Specifications

• Summary: PLANET GS-4210-8P2S. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
• Vendor Homepage: https://www.planet.com.tw/en/product/gs-4210-8p2s-v2
• Name: NET SWITCH 8PORT 1000M POE+/GS-4210-8P2S PLANET
• Category Code: SWI
• Model name: GS-4210-8P2S
• Switch type: Managed
• Quality of Service (QoS) support: Yes
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP module slots quantity: 2
• Networking standards: IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Full duplex: Yes
• Half duplex: Yes
• Switching capacity: 20
• Throughput: 14.88
• MAC address table: 8000
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Blue
• Housing material: Metal
• LED indicators: Yes
• Safety: FCC Part 15 Class A, CE, LVD
• Buffer size: 512.5
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (typical): 165
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) ports quantity: 8
• Total Power over Ethernet (PoE) budget: 120
• Operating temperature (T-T): 0 - 50
• Storage temperature (T-T): -20 - 70
• Operating relative humidity (H-H): 5 - 95
• Storage relative humidity (H-H): 5 - 95
• Width: 330
• Depth: 155
• Height: 43.5
• Weight: 1687
• Harmonized System (HS) code: 85176990
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.007371
• Unit Calculated Weight: 2.4
