AT-GS950/10PSV2-50

AT-GS950/10PSV2-50
AT-GS950/10PSV2-50
  • Switch type: Managed
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 20
Врз основа на 0 коментари. - Напиши коментар
27,635ден.
  • Достапност:
  • Бренд: ALLIED
  • Шифра: 381911
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Allied Telesis GS950/10PS. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: DC-in jack. Power over Ethernet (PoE)
  • Vendor Homepage: https://www.alliedtelesis.com/en/products/switches/gs95010ps
  • Name: NET SWITCH 8PORT 1000T/2SFP AT-GS950/10PSV2-50 ALLIED
  • Category Code: SWI
  • Model: AT-GS950/10PSV2-50
  • Switch type: Managed
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • MIB support: RFC 1213 MIB-II, RFC 1215 TRAP MIB, RFC 1493 Bridge MIB, RFC 2863, RFC 1643, RFC 2618 RMON, RFC 2674 IEEE 802.1Q, RFC 2096 IP
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 10
  • Combo SFP ports quantity: 2
  • Fiber ports quantity: 2
  • Fiber optic connector: SFP
  • Console port: RJ-45
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-T/10BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • Rate limiting: Yes
  • VLAN support: Yes
  • Fiber ethernet cabling technology: 1000BASE-LX/1000BASE-SX/100BASE-FX
  • Fiber type: Multi-mode
  • Switching capacity: 20
  • Throughput: 14.88
  • MAC address table: 8000
  • DHCP features: DHCP client/DHCP server
  • IGMP snooping: Yes
  • MAC address filtering: Yes
  • Multicast support: Yes
  • Product colour: Green/Grey
  • Internal memory: 64
  • Flash memory: 16
  • AC input voltage: 100 - 240
  • Power consumption (typical): 13.58
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Total Power over Ethernet (PoE) budget: 75
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -25 - 70
  • Operating relative humidity (H-H): 5 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Operating altitude: 0 - 3048
  • Width: 330
  • Depth: 200
  • Height: 44
  • Weight: 1900
  • Certification: RoHS Eu-RoHS China RoHS WEEE
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00896
  • Unit Calculated Weight: 3
Specifications
AC input voltage100 - 240
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationRoHS Eu-RoHS China RoHS WEEE
Combo SFP ports quantity2
Console portRJ-45
Copper ethernet cabling technology1000BASE-T/100BASE-T/10BASE-T
Depth200
DHCP featuresDHCP client/DHCP server
Fiber ethernet cabling technology1000BASE-LX/1000BASE-SX/100BASE-FX
Fiber optic connectorSFP
Fiber ports quantity2
Fiber typeMulti-mode
Flash memory16
Flow control supportYes
Full duplexYes
Gigabit Ethernet (copper) ports quantity10
Harmonized System (HS) code85176990
Height44
IGMP snoopingYes
Internal memory64
MAC address filteringYes
MAC address table8000
MIB supportRFC 1213 MIB-II, RFC 1215 TRAP MIB, RFC 1493 Bridge MIB, RFC 2863, RFC 1643, RFC 2618 RMON, RFC 2674 IEEE 802.1Q, RFC 2096 IP
Multicast supportYes
Networking standardsIEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Operating altitude0 - 3048
Operating relative humidity (H-H)5 - 90
Operating temperature (T-T)0 - 40
Port mirroringYes
Power connectorDC-in jack
Power consumption (typical)13.58
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Product colourGreen/Grey
Quality of Service (QoS) supportYes
Rate limitingYes
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-25 - 70
SummaryAllied Telesis GS950/10PS. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: DC-in jack. Power over Ethernet (PoE)
Throughput14.88
Total Power over Ethernet (PoE) budget75
VLAN supportYes
Web-based managementYes
Weight1900
Width330
Specs
Category CodeSWI
Description

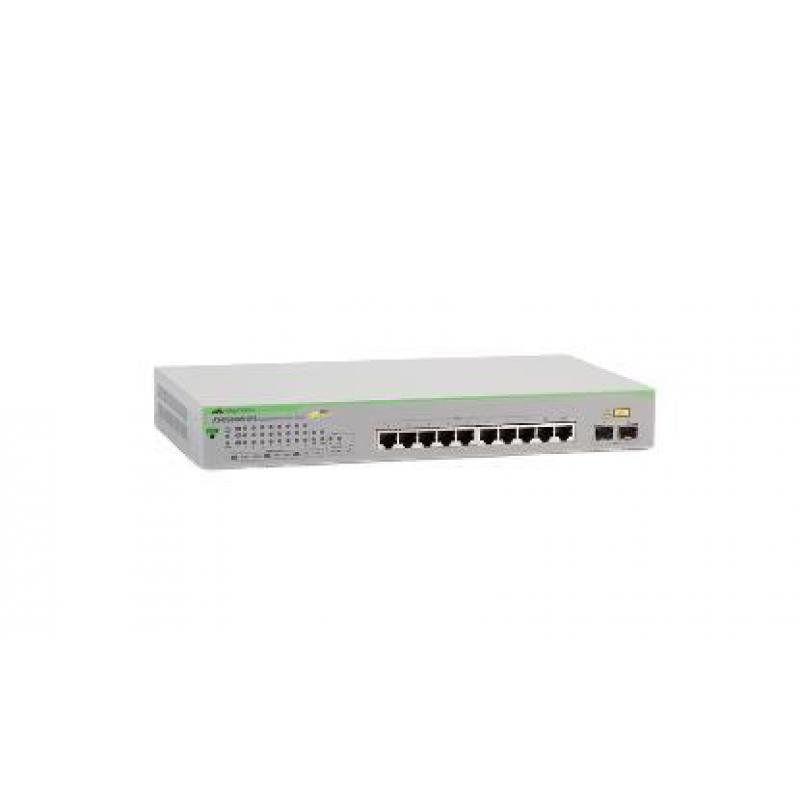

The Allied Telesis GS950/10PS Gigabit Ethernet WebSmart switch features two Gigabit ports, two SFP combo ports, and eight PoE+ ports delivering up to 30 Watts per port to support video surveillance and security cameras, wireless access points, IP phones and other PoE powered devices. The PoE option eliminates the need for power rewiring and minimizes the clutter of power supplies and adapters in awkward places. Thanks to its compact size, the AT-GS950/10PS is ideal for wiring-constrained and smaller environments such as micro branch offices, classrooms, cafes, and smaller retail stores.

ModelAT-GS950/10PSV2-50
NameNET SWITCH 8PORT 1000T/2SFP AT-GS950/10PSV2-50 ALLIED
PictureUrlhttps://static.elko.cloud/ProductImages/231e2a55-b18b-49b1-9e22-3f77ae5e846c.Jpeg
Switch typeManaged
Switching capacity20
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/231e2a55-b18b-49b1-9e22-3f77ae5e846c.Jpeg
Unit Calculated Volume0.00896
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://www.alliedtelesis.com/en/products/switches/gs95010ps
