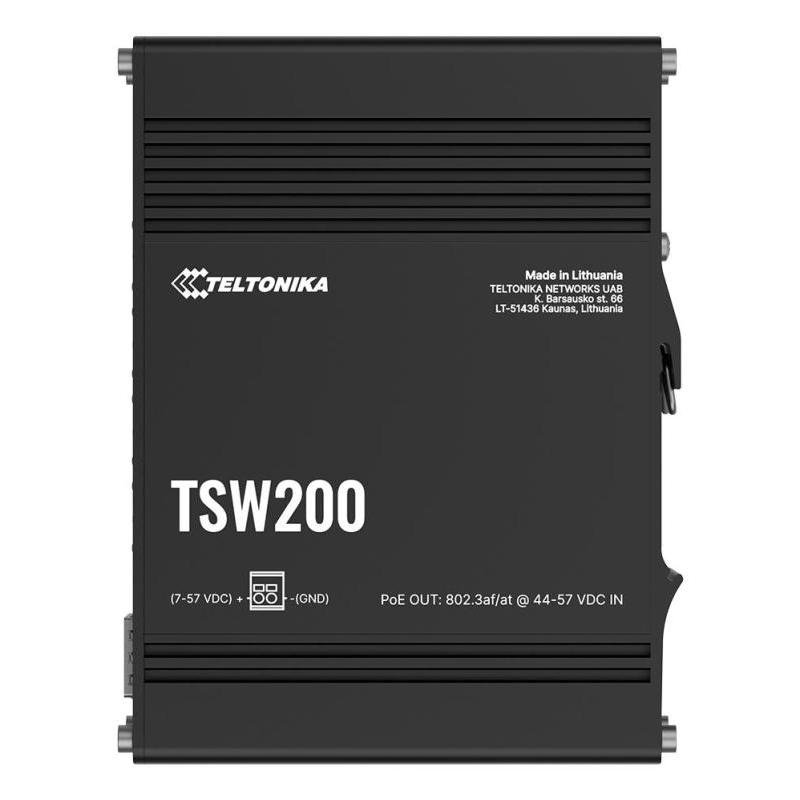

NET SWITCH 8PORT 10/100/1000/2SFP TSW200 TELTONIKA

NET SWITCH 8PORT 10/100/1000/2SFP TSW200 TELTONIKA
достава за 24h
NET SWITCH 8PORT 10/100/1000/2SFP TSW200 TELTONIKA
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • SFP module slots quantity: 2
  • Switching capacity: 20
Врз основа на 0 коментари. - Напиши коментар
6,678ден.
  • Достапност: Има залиха
  • Бренд: TELTONIKA
  • Шифра: 439460
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Teltonika TSW200. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at. DC input voltage: 7 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
  • Vendor Homepage: https://www.teltonika-networks.com/products/ethernet-switches/tsw200
  • Name: NET SWITCH 8PORT 10/100/1000/2SFP TSW200 TELTONIKA
  • Category Code: SWI
  • Model name: TSW200
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
  • Auto MDI/MDI-X: Yes
  • Switching capacity: 20
  • MAC address table: 2000
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Packet buffer memory: 0.128
  • Product colour: Black
  • Housing material: Aluminium
  • LED indicators: Yes
  • DIN rail mounting: Yes
  • International Protection (IP) code: IP30
  • Wall mountable: Yes
  • Power source: DC
  • DC input voltage: 7 - 57
  • Power consumption (max): 5.5
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) type supported: Active PoE/PoE+
  • Power over Ethernet (PoE) modes: Alternative A/Alternative B
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 240
  • Operating temperature (T-T): -40 - 75
  • Operating relative humidity (H-H): 5 - 95
  • Width: 132
  • Depth: 95.1
  • Height: 44.2
  • Weight: 517
  • Quick start guide: Yes
  • Package type: Box
  • Compliance certificates: CB/CE/Federal Communications Commission (FCC)/Industry Canada (IC)/UKCA
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.000825
  • Unit Calculated Weight: 1
Specifications
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Compliance certificatesCB/CE/Federal Communications Commission (FCC)/Industry Canada (IC)/UKCA
DC input voltage7 - 57
Depth95.1
DIN rail mountingYes
Height44.2
Housing materialAluminium
International Protection (IP) codeIP30
Jumbo frames9216
Jumbo frames supportYes
LED indicatorsYes
MAC address table2000
Networking standardsIEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H)5 - 95
Operating temperature (T-T)-40 - 75
Package typeBox
Packet buffer memory0.128
Power connectorDC-in jack
Power consumption (max)5.5
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) modesAlternative A/Alternative B
Power over Ethernet (PoE) power per port30
Power over Ethernet (PoE) type supportedActive PoE/PoE+
Power over Ethernet plus (PoE+) ports quantity8
Product colourBlack
Quick start guideYes
SFP module slots quantity2
SummaryTeltonika TSW200. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at. DC input voltage: 7 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Total Power over Ethernet (PoE) budget240
Wall mountableYes
Weight517
Width132
Specs
Category CodeSWI
Description

TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.

Model nameTSW200
NameNET SWITCH 8PORT 10/100/1000/2SFP TSW200 TELTONIKA
PictureUrlhttps://static.elko.cloud/ProductImages/ce6efd86-07fd-4c16-956d-67085b5e25fd.Jpeg
Power sourceDC
Switch typeUnmanaged
Switching capacity20
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/ce6efd86-07fd-4c16-956d-67085b5e25fd.Jpeg
Unit Calculated Volume0.000825
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://www.teltonika-networks.com/products/ethernet-switches/tsw200
