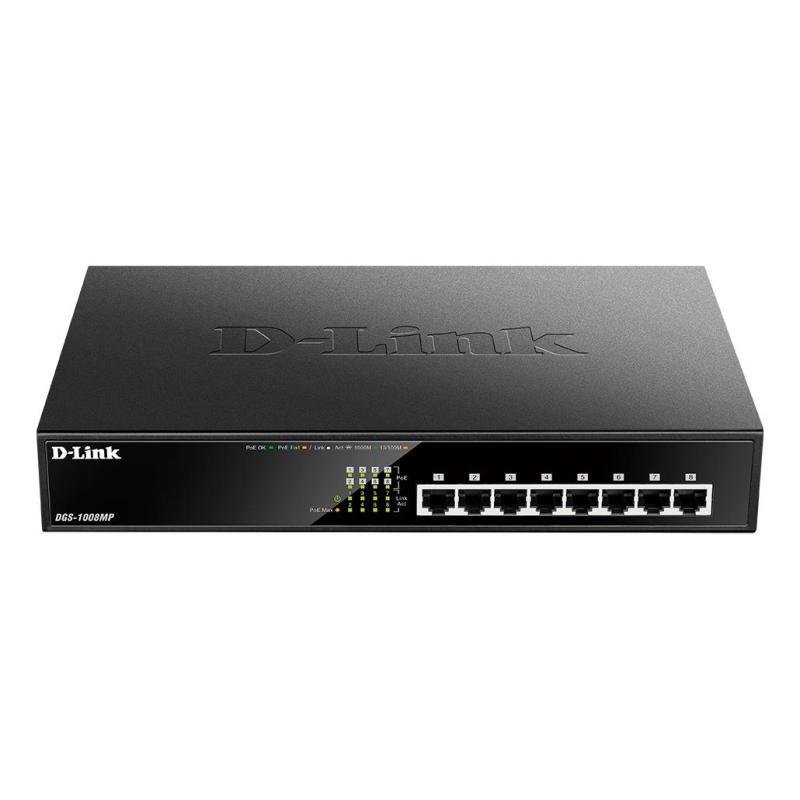

NET SWITCH 8PORT 10/100/1000/POE DGS-1008MP D-LINK

NET SWITCH 8PORT 10/100/1000/POE DGS-1008MP D-LINK
NET SWITCH 8PORT 10/100/1000/POE DGS-1008MP D-LINK
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 16
11,115ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 184547
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
1

Technical Specifications

  • Summary: D-Link 8-Port Desktop Gigabit PoE+ Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Vendor Homepage: https://www.dlink.com/uk/en/business-solutions/switching/unmanaged-switches/desktop/dgs-1008mp-8-port-desktop-switch-with-8-poe-ports
  • Name: NET SWITCH 8PORT 10/100/1000/POE DGS-1008MP D-LINK
  • Category Code: SWI
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.3ab/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Switching capacity: 16
  • MAC address table: 8000
  • Store-and-forward: Yes
  • Packet forwarding rate (1 Gbps): 14880
  • Packet forwarding rate (10 Mbps): 1488000
  • Packet forwarding rate (100 Mbps): 148800
  • Packet buffer memory: 0.192
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (typical): 13.5
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Total Power over Ethernet (PoE) budget: 140
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -10 - 70
  • Operating relative humidity (H-H): 0 - 95
  • Storage relative humidity (H-H): 5 - 95
  • Width: 280
  • Depth: 180
  • Height: 44
  • Weight: 1840
  • Package width: 262
  • Package depth: 391
  • Package height: 102
  • Package weight: 2850
  • Master (outer) cases per pallet (air): 36
  • Master (outer) cases per pallet (sea): 36
  • Pallet gross length: 1100
  • Pallet gross weight (air): 563800
  • Pallet gross weight (sea): 563800
  • Pallet gross width: 1200
  • Pallet height (air): 1935
  • Pallet height (sea): 1935
  • Products per pallet (air): 180
  • Products per pallet (sea): 180
  • Products per shipping (inner) case: 5
  • Shipping (inner) case gross weight: 15300
  • Shipping (inner) case height: 285
  • Shipping (inner) case length: 545
  • Shipping (inner) case net weight: 14250
  • Shipping (inner) case width: 406
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 5
  • Unit Calculated Volume: 0.01386
  • Unit Calculated Weight: 3.1
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Depth180
Form factor1U
Full duplexYes
Harmonized System (HS) code85176990
Height44
LED indicatorsYes
MAC address table8000
Master (outer) cases per pallet (air)36
Master (outer) cases per pallet (sea)36
Networking standardsIEEE 802.3ab/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H)0 - 95
Operating temperature (T-T)0 - 40
Package depth391
Package height102
Package weight2850
Package width262
Packet buffer memory0.192
Packet forwarding rate (1 Gbps)14880
Packet forwarding rate (10 Mbps)1488000
Packet forwarding rate (100 Mbps)148800
Pallet gross length1100
Pallet gross weight (air)563800
Pallet gross weight (sea)563800
Pallet gross width1200
Pallet height (air)1935
Pallet height (sea)1935
Power consumption (typical)13.5
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Product colourBlack
Products per pallet (air)180
Products per pallet (sea)180
Products per shipping (inner) case5
Rack mountingYes
Shipping (inner) case gross weight15300
Shipping (inner) case height285
Shipping (inner) case length545
Shipping (inner) case net weight14250
Shipping (inner) case width406
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-10 - 70
Store-and-forwardYes
SummaryD-Link 8-Port Desktop Gigabit PoE+ Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Total Power over Ethernet (PoE) budget140
Weight1840
Width280
Specs
Category CodeSWI
Description

Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.

  • High-Speed Networking
  • Eight 10/100/1000 Mbps Ethernet ports
  • Full/half-duplex for 10/100 Mbps Ethernet and full-duplex for 1000 Mbps Ethernet Reliability
  • IEEE 802.3x Flow Control
  • Store-and-forward switching scheme
  • RoHS compliant Easy Setup
  • Plug-and-play installation
  • Auto MDI/MDI-X crossover on all ports Desktop and Rackmount Design
  • Rack-mountable 11” metal casing (1U)
  • Fanless design PoE Functionality
  • IEEE 802.3at-compliant
  • 125 W total power budget
  • Up to 30 W power output per port

NameNET SWITCH 8PORT 10/100/1000/POE DGS-1008MP D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/16184c17-7b32-400b-9a65-a9f9453dc2a4.Jpeg
Switch typeUnmanaged
Switching capacity16
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/16184c17-7b32-400b-9a65-a9f9453dc2a4.Jpeg
Unit Calculated Volume0.01386
Unit Calculated Weight3.1
Units per Shipping Box5
Vendor Homepagehttps://www.dlink.com/uk/en/business-solutions/switching/unmanaged-switches/desktop/dgs-1008mp-8-port-desktop-switch-with-8-poe-ports
