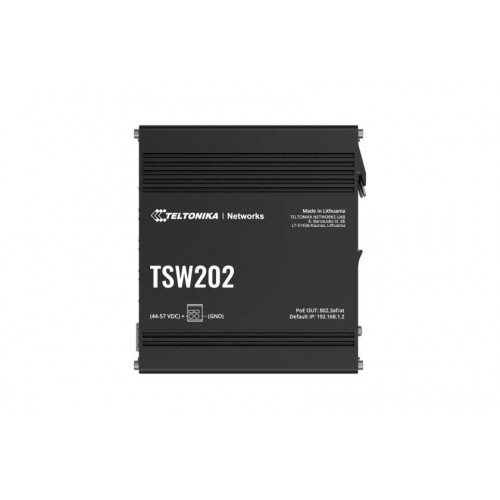

NET SWITCH 8PORT 10/100/1000/POE+ L2 TSW202 TELTONIKA

Technical Specifications

• Summary: Teltonika TSW202. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z. Power connector: Terminal block (3-pin). Power over Ethernet (PoE)
• Vendor Homepage: teltonika-networks.com/products/ethernet-switches/tsw202
• Name: NET SWITCH 8PORT 10/100/1000/POE+ L2 TSW202 TELTONIKA
• Category Code: SWI
• Model name: TSW202
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 8
• Installed SFP modules quantity: 2
• Power connector: Terminal block (3-pin)
• Networking standards: IEEE 802.1p/IEEE 802.3af/IEEE 802.3at/IEEE 802.3z
• Port mirroring: Yes
• Full duplex: Yes
• Active link detection: Yes
• Auto-negotiation: Yes
• Link aggregation: Yes
• VLAN support: Yes
• Switching capacity: 20
• MAC address table: 8000
• Jumbo frames support: Yes
• Jumbo frames: 10000
• DHCP features: DHCP client
• IGMP snooping: Yes
• Product colour: Aluminium/Blue
• Housing material: Aluminium
• Reset button: Yes
• LED indicators: Power/Status
• DIN rail mounting: Yes
• International Protection (IP) code: IP30
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) type supported: Active PoE
• Power over Ethernet (PoE) ports quantity: 8
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 240
• Operating temperature (T-T): -40 - 75
• Width: 132
• Depth: 44.2
• Height: 122
• Weight: 610
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00098
• Unit Calculated Weight: 0.5
