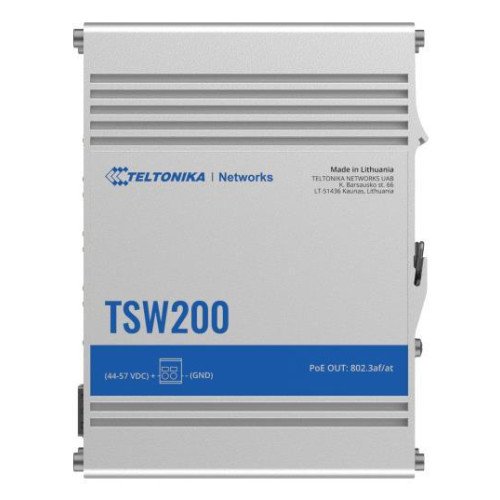

NET SWITCH 8PORT 10/100/1000/TSW200 TELTONIKA

Technical Specifications

• Summary: Teltonika TSW200. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u. DC input voltage: 7 - 57 V. Power over Ethernet (PoE). Wall mountable, Rack mounting
• Vendor Homepage: https://teltonika-networks.com/product/tsw200/
• Name: NET SWITCH 8PORT 10/100/1000/TSW200 TELTONIKA
• Category Code: SWI
• Model name: TSW212
• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP module slots quantity: 2
• Networking standards: IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u
• Auto MDI/MDI-X: Yes
• MAC address table: 2000
• Jumbo frames support: Yes
• Jumbo frames: 9216
• Packet buffer memory: 0.128
• Rack mounting: Yes
• Product colour: Aluminium
• Housing material: Aluminium
• LED indicators: LAN/PoE/Status
• DIN rail mounting: Yes
• International Protection (IP) code: IP30
• Wall mountable: Yes
• Power source: DC
• DC input voltage: 7 - 57
• Power consumption (typical): 1.8
• Power consumption (max): 106
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) ports quantity: 8
• Power over Ethernet (PoE) voltage: 57
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 240
• Operating temperature (T-T): -40 - 75
• Width: 95.1
• Depth: 44.2
• Height: 132
• Weight: 456
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00189
• Unit Calculated Weight: 1
