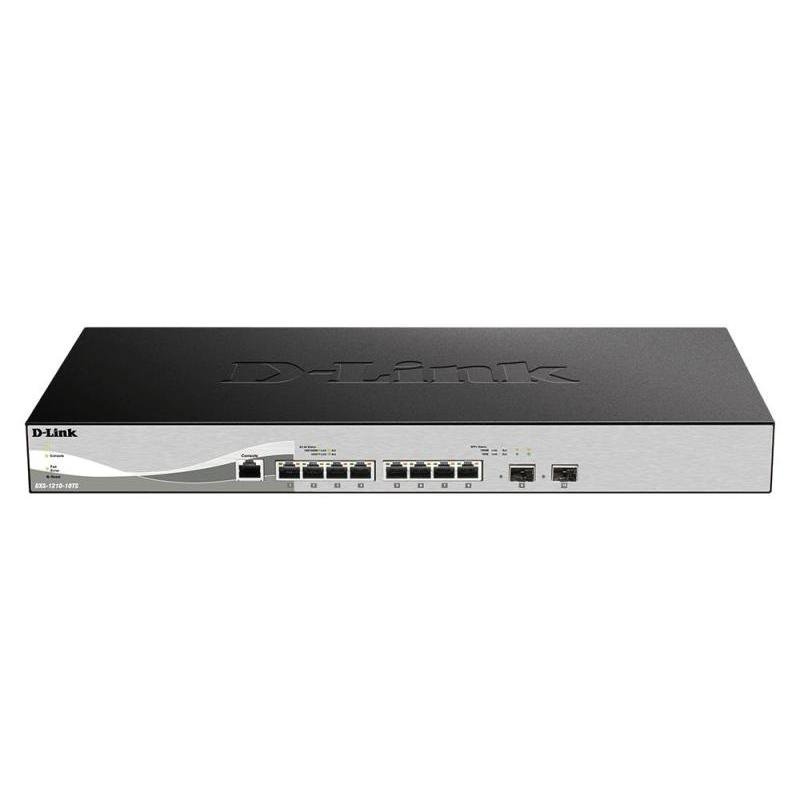

NET SWITCH 8PORT 10GB 2SFP+/DXS-1210-10TS D-LINK

NET SWITCH 8PORT 10GB 2SFP+/DXS-1210-10TS D-LINK
NET SWITCH 8PORT 10GB 2SFP+/DXS-1210-10TS D-LINK
  • Switch type: Managed
  • Switch layer: L2/L3
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Switching capacity: 200
90,214ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 184201
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
1

Technical Specifications

  • Summary: D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z. Rack mounting, Form factor: 1U
  • Vendor Homepage: https://www.dlink.com/en/products/dxs-1210-series--10-gigabit-ethernet-smart-managed-switches
  • Name: NET SWITCH 8PORT 10GB 2SFP+/DXS-1210-10TS D-LINK
  • Category Code: SWI
  • Switch type: Managed
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • MIB support: Y
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
  • SFP+ module slots quantity: 2
  • Fiber optic connector: SFP+
  • Console port: RJ-45
  • Networking standards: IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3an/IEEE 802.3az/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3z
  • 10G support: Yes
  • Cable types supported: Cat6
  • Port mirroring: Yes
  • Auto MDI/MDI-X: Yes
  • Broadcast storm control: Yes
  • Ethernet LAN data rates: 100,1000,2500,5000,10000
  • Flow control support: Yes
  • Head-of-line (HOL) blocking: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Number of VLANs: 4094
  • Switching capacity: 200
  • Forwarding rate: 148.8
  • MAC address table: 32000
  • Store-and-forward: Yes
  • Number of queues: 8
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • DHCP features: DHCP client/DHCP server
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Password protection: Yes
  • Multicast support: Yes
  • Rack mounting: Yes
  • Stackable: Yes
  • Form factor: 1U
  • Product colour: Black/Silver
  • LED indicators: Yes
  • Number of fans: 1
  • Noise level: 46.6
  • Power source: AC
  • AC input voltage: 100 - 240
  • AC input frequency: 50/60
  • Power consumption (max): 43.26
  • Operating temperature (T-T): -5 - 50
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 0 - 95
  • Storage relative humidity (H-H): 0 - 95
  • Width: 330
  • Depth: 200
  • Height: 44
  • Weight: 2165
  • Quick start guide: Yes
  • Certification: CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00609
  • Unit Calculated Weight: 4.2
Specifications
10G supportYes
AC input frequency50/60
AC input voltage100 - 240
Access Control List (ACL)Yes
ARP inspectionYes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Broadcast storm controlYes
Cable types supportedCat6
CertificationCE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB
Console portRJ-45
Depth200
DHCP featuresDHCP client/DHCP server
Ethernet LAN data rates100,1000,2500,5000,10000
Fiber optic connectorSFP+
Flow control supportYes
Form factor1U
Head-of-line (HOL) blockingYes
Height44
IGMP snoopingYes
Jumbo frames10000
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
Loop protectionYes
MAC address table32000
MIB supportY
Multicast supportYes
Networking standardsIEEE 802.3ab/IEEE 802.3ae/IEEE 802.3an/IEEE 802.3az/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3z
Noise level46.6
Number of fans1
Number of queues8
Number of VLANs4094
Operating relative humidity (H-H)0 - 95
Operating temperature (T-T)-5 - 50
Password protectionYes
Port mirroringYes
Power consumption (max)43.26
Product colourBlack/Silver
Quality of Service (QoS) supportYes
Quick start guideYes
Rack mountingYes
SFP+ module slots quantity2
Spanning tree protocolYes
StackableYes
Storage relative humidity (H-H)0 - 95
Storage temperature (T-T)-40 - 70
Store-and-forwardYes
SummaryD-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z. Rack mounting, Form factor: 1U
Switch layerL2/L3
VLAN supportYes
Web-based managementYes
Weight2165
Width330
Specs
Category CodeSWI
Description

10 Gigabit Ethernet Smart Managed Switches

The D-Link DXS-1210 Series conveniently offers a range of 10-Gigabit copper and fiber port combinations to cost-effectively alleviate network congestion. Select models are equipped with SFP+ or SFP28 ports for 10G/25G expandable network designed for scalability and can auto-detect surveillance and voice data to ensure uninterrupted video footage and jitter-free VoIP calls.

Alleviate Network Congestion
Add 10‑Gigabit Ethernet connectivity with these affordable high-performance switches. Designed for deployment in small to medium-sized business (SMB) core networks and powerful enough for enterprise aggregation applications.

Convenient Layer 2 & Layer 3 Lite Configurability
The DXS-1210 Series can be deployed as a Layer 2 aggregation switch with features such as port mirroring, STP, and LACP. When implemented as a Layer 3 Lite core switch, IP interfaces, ARP, IPv6 ND, Default Routing, and Static Routing can be applied for efficient routing applications.

An Added Line of Defense Against Attacks
The DXS-1210 Series defends your network with D-Link’s innovative Safeguard Engine™ to neutralize threats such as malicious network flooding attacks, ARP spoofing, and bogus DHCP IP addressing. The DXS-1210 Series supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers.

Unhindered Surveillance & VoIP with a Simple Click
If you need surveillance or VoIP, there is no need to build a dedicated network. With the DXS-1210 Series, expediting latency-intolerant services such as surveillance and VoIP through the existing network can’t be any easier. Simply enable the Auto Surveillance VLAN & Auto Voice VLAN features. Your surveillance videos will always run smoothly and your VoIP calls will be crystal-clear from beginning to end, even during peak working hours.

Better for Your Budget, Better for the Planet
When low-traffic or idle interface ports are detected, the DXS-1210 Series automatically transitions them into a low-power state, substantially reducing overall device power consumption. Furthermore, the DXS-1210 Series can determine the approximate length of cables attached to each port to apply just enough power for data transmission on that link, saving even more power while lowering total cost of ownership (TCO).

Forwarding rate148.8
NameNET SWITCH 8PORT 10GB 2SFP+/DXS-1210-10TS D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/19a9a122-2870-4724-b1a1-4aba2f470d8a.Jpeg
Power sourceAC
Switch typeManaged
Switching capacity200
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/19a9a122-2870-4724-b1a1-4aba2f470d8a.Jpeg
Unit Calculated Volume0.00609
Unit Calculated Weight4.2
Units per Shipping Box1
Vendor Homepagehttps://www.dlink.com/en/products/dxs-1210-series--10-gigabit-ethernet-smart-managed-switches
