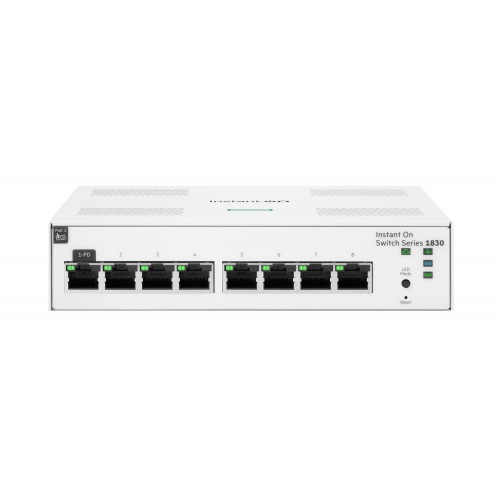

NET SWITCH 8PORT ION 1830/8G JL810A ARUBA BY HPE

Technical Specifications

• Summary: HPE Aruba Networking Networking Instant On Switch 8p Gigabit 1830. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting
• Vendor Homepage: https://www.hpe.com/
• Name: NET SWITCH 8PORT ION 1830/8G JL810A ARUBA BY HPE
• Category Code: SWI
• Model name: Networking Instant On Switch 8p Gigabit 1830
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Cloud-managed: Yes
• Web-based management: Yes
• System event log: Yes
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Networking standards: IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Port mirroring: Yes
• Full duplex: Yes
• Half duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Auto-sensing: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Switching capacity: 16
• Throughput: 11.9
• MAC address table: 8000
• Latency (10-100 Mbps): 5.2
• Latency (1 Gbps): 2.8
• Jumbo frames support: Yes
• Jumbo frames: 9216
• Packet buffer memory: 1.5
• DHCP features: DHCP client
• IGMP snooping: Yes
• SSH/SSL support: Yes
• Rack mounting: Yes
• Built-in processor: Yes
• Processor model: ARM Cortex-A9
• Processor frequency: 800
• Memory type: SDRAM
• Internal memory: 512
• Flash memory: 256
• Fanless: Yes
• Power source: AC
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (max): 5.9
• Power consumption note: Maximum: 100-127V: 8.09W 200-220V: 8.05W; Idle: 100-127V: 5.8W 200-220V: 5.9W
• Dimensions (W x D x H) (imperial): 6.18 x 6.81 x 1.54
• I/O ports: 8 RJ-45 10/100/1000 ports
• Memory and processor: ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
• Performance management: HPE Networking Instant On Cloud; Web browser; SNMP Manager
• Weight (imperial): 1.7
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 15 - 95
• Storage relative humidity (H-H): 15 - 95
• Width: 157
• Depth: 173
• Height: 39.1
• Weight: 770
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0066
• Unit Calculated Weight: 2
