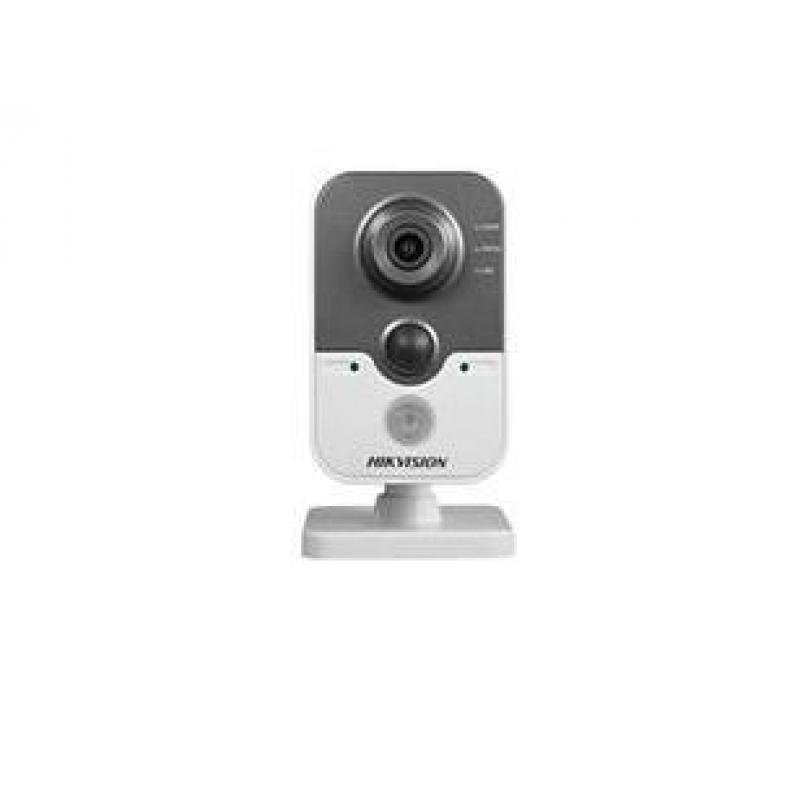

NET CAMERA 1.3MP WI-FI CUBE/DS-2CD2412-IW 2.8MM HIKVISION

Technical Specifications

• Summary: Hikvision DS-2CD2412F-IW. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Desk, Product colour: Grey, White, Form factor: Cube. Minimum illumination: 0.01 lx, Field of view (FOV) angle: 92.5°, Camera shutter speed: 1/3 - 1/100000 s. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 2.8 mm
• Vendor Homepage: https://www.hikvision.com
• Name: NET CAMERA 1.3MP WI-FI CUBE/DS-2CD2412-IW 2.8MM HIKVISION
• Category Code: FNC
• Form factor: Cube
• Mounting type: Desk
• Product colour: Grey/White
• International Protection (IP) code: IP66
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Alarm input/output: Yes
• Minimum illumination: 0.01
• Field of view (FOV) angle: 92.5
• Camera shutter speed: 1/3 - 1/100000
• Optical sensor size: 1/3
• Progressive scan: Yes
• Sensor type: CMOS
• Lens diameter: 2.8
• Focus adjustment: 2.0
• Night vision: Yes
• Night vision distance: 10
• LED type: IR
• Maximum resolution: 1280 x 960
• Total megapixels: 1.3
• Video formats supported: H.264/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/640 x 400/704 x 576
• Supported video modes: 720p
• Frame rate: 30
• Built-in speaker(s): Yes
• Built-in microphone: Yes
• Ethernet LAN: Yes
• Supported network protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS
• Wi-Fi: Yes
• Wi-Fi standards: 802.11b/802.11g/Wi-Fi 4 (802.11n)
• Wi-Fi data rate (max): 130
• Cabling technology: 10/100Base-T(X)
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Ethernet LAN (RJ-45) ports: 1
• Password protection type: User
• Active tampering alarm: Yes
• IP address filtering: Yes
• Motion sensor: Yes
• Security algorithms: 128-bit WEP/64-bit WEP/WPA/WPA2-PSK/WPA-PSK/WPS
• Power source type: PoE
• Power consumption (max): 5
• DC output voltage: +12V
• Power over Ethernet (PoE): Yes
• Operating temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 0 - 95
• Width: 66
• Depth: 70.6
• Height: 139.1
• Weight: 400
• Unit Calculated Volume: 0.0081307
• Unit Calculated Weight: 0.68
