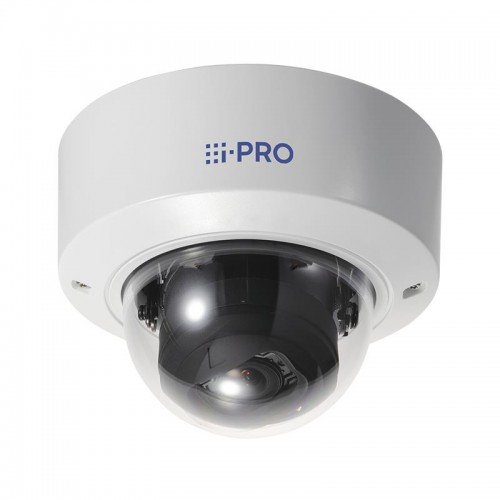

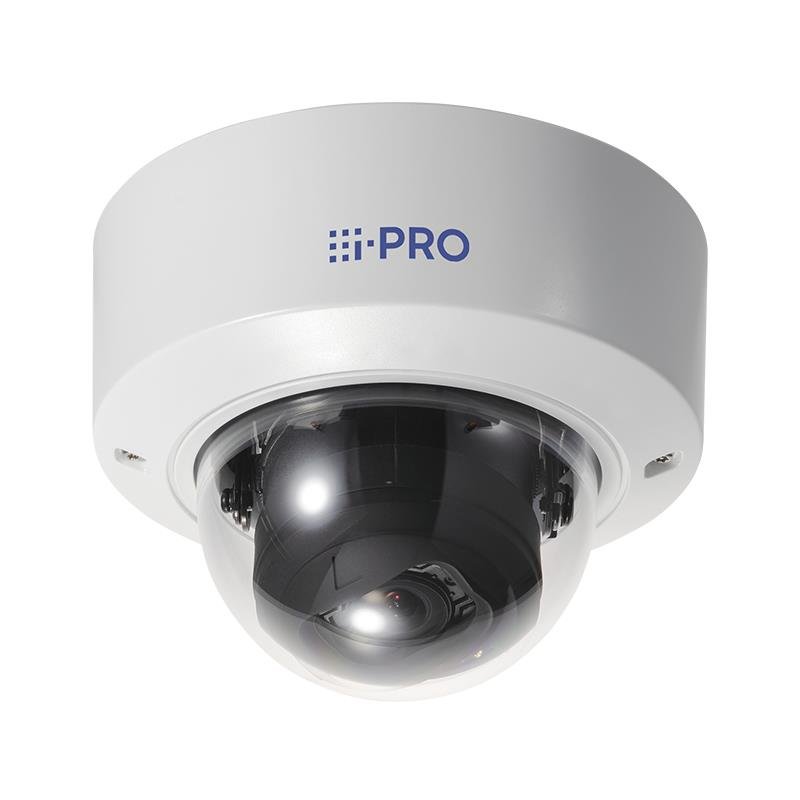

NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S2236LA I-PRO

NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S2236LA I-PRO
NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S2236LA I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
47,014ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454065
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S2236LA. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. White balance: ATW, AWC. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.1x, Focal length range: 2.9 - 9 mm, Detect distance (wide): 24.9 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s2236la
  • Name: NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S2236LA I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Polycarbonate (PC)
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Minimum illumination: 0
  • White balance: ATW/AWC
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 3.1
  • Focal length range: 2.9 - 9
  • Auto focus: Yes
  • Detect distance (tele): 118.2
  • Detect distance (wide): 24.9
  • Identify distance (tele): 11.8
  • Identify distance (wide): 2.5
  • Observe distance (tele): 47.3
  • Observe distance (wide): 10
  • Recognize distance (tele): 23.6
  • Recognize distance (wide): 5
  • Night vision: Yes
  • Night vision distance: 70
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC/SD/SDHC/SDXC
  • Ethernet LAN (RJ-45) ports: 1
  • Web browser: Yes
  • Power source type: DC,PoE
  • Power consumption: 720
  • Power consumption (typical): 8.6
  • Power consumption (Power over Ethernet (PoE)): 8.7
  • DC output voltage: 12
  • Operating temperature (T-T): -10 - 50
  • Operating relative humidity (H-H): 10 - 90
  • Height: 102.5
  • Diameter: 129.5
  • Weight: 570
  • Compliance certificates: CE/Federal Communications Commission (FCC)
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 0.8
Specifications
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Auto focusYes
Back Light Compensation (BLC)Yes
Card reader integratedYes
Compatible memory cardsMicroSDHC/MicroSDXC/SD/SDHC/SDXC
Compliance certificatesCE/Federal Communications Commission (FCC)
Connectivity technologyWired
DC output voltage12
Detect distance (tele)118.2
Detect distance (wide)24.9
Diameter129.5
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range2.9 - 9
Form factorDome
Height102.5
Highlight Compensation (HLC)Yes
Housing materialPolycarbonate (PC)
Identify distance (tele)11.8
Identify distance (wide)2.5
IK codeIK10
Maximum resolution2048 x 1536
Minimum illumination0
Mounting typeCeiling
Night visionYes
Night vision distance70
Number of cameras1
Number of users14
Observe distance (tele)47.3
Observe distance (wide)10
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-10 - 50
Optical sensor size1/2.8
Optical zoom3.1
Placement supportedIndoor
Power consumption (Power over Ethernet (PoE))8.7
Power consumption (typical)8.6
Power source typeDC,PoE
Product colourWhite
Recognize distance (tele)23.6
Recognize distance (wide)5
Sensor typeCMOS
Summaryi-PRO WV-S2236LA. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. White balance: ATW, AWC. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.1x, Focal length range: 2.9 - 9 mm, Detect distance (wide): 24.9 m
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
Total megapixels2
TypeIP security camera
Web browserYes
Weight570
White balanceATW/AWC
Zoom capabilityYes
Specs
Category CodeFNC
Description

  • 2MP Indoor vandal dome camera
  • Up to 2 Edge AI analytic apps
  • Built-in IR-LED(70m, 230ft)
  • IK10 certified
  • Built-in FIPS 140-2 L2 Level 3 Certified Secure Element (EdgeLock® SE050F NXP® Semiconductors)A Compliant

NameNET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S2236LA I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/70aeec1b-a02b-4718-ab36-c48fa66c08ee.Jpeg
Power consumption720
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/70aeec1b-a02b-4718-ab36-c48fa66c08ee.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight0.8
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s2236la
