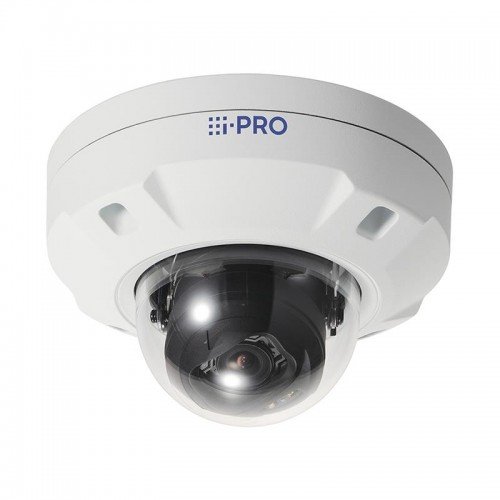

NET CAMERA 2MP DOME AI OUTDOOR/VANDAL WV-S2536LA I-PRO

Technical Specifications

• Summary: i-PRO WV-S2536LA. Placement supported: Outdoor, Connectivity technology: Wired, Dynamic range: 144 dB. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 270°, White balance: ATW, AWC. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.1x, Focal length range: 2.9 - 9 mm, Normal focusing range: 0.3 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s2536la
• Name: NET CAMERA 2MP DOME AI OUTDOOR/VANDAL WV-S2536LA I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Protection features: Dust resistant/Water resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Connectivity technology: Wired
• Placement supported: Outdoor
• Dynamic range: 144
• Angle of rotation: 270
• White balance: ATW/AWC
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Optical zoom: 3.1
• Focal length range: 2.9 - 9
• Auto focus: Yes
• Detect distance (tele): 83.4
• Detect distance (wide): 25.4
• Identify distance (tele): 11.8
• Identify distance (wide): 2.5
• Normal focusing range: 0.3
• Observe distance (tele): 47.3
• Observe distance (wide): 10.2
• Recognize distance (tele): 23.6
• Recognize distance (wide): 5.1
• Night vision: Yes
• Night vision distance: 70
• Maximum resolution: 2048 x 1536
• Total megapixels: 2
• Video compression formats: H.264/H.265
• Audio formats supported: AAC-LC/G.711/G.726
• Ethernet LAN: Yes
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
• Ethernet LAN (RJ-45) ports: 1
• Intelligent Video Surveillance (IVS) system features: Face detection/Human detection
• Video motion detection: Yes
• Power source type: DC
• Operating temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 10 - 100
• Width: 154
• Depth: 105
• Weight: 1100
• Compliance certificates: National Defense Authorization Act (NDAA)
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01
• Unit Calculated Weight: 1.6
