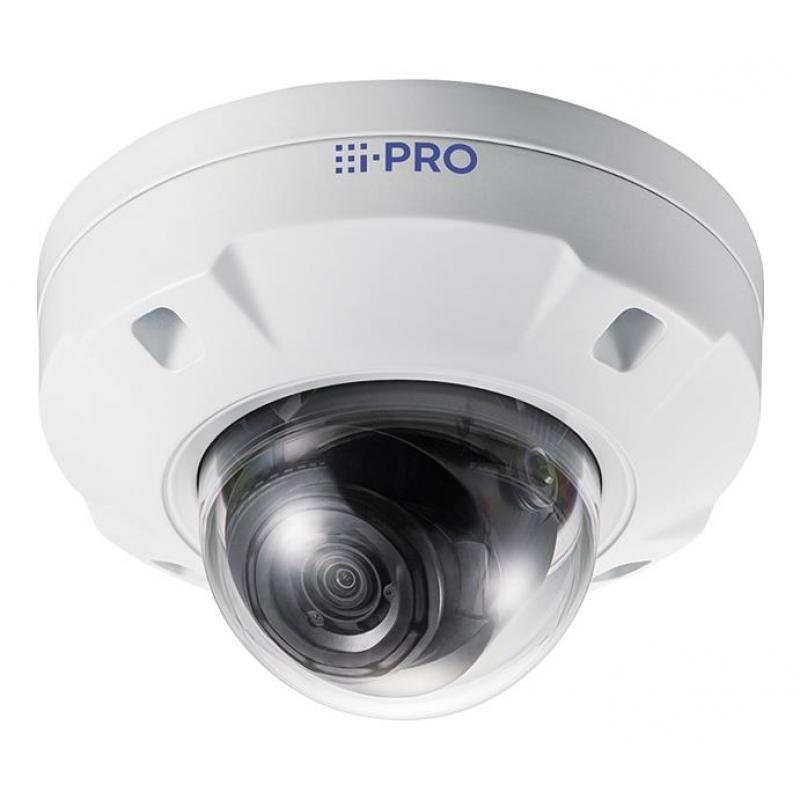

NET CAMERA 2MP DOME OUTDOOR/VANDAL WV-U2532LA I-PRO

Technical Specifications

• Summary: i-PRO WV-U2532LA. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.07 lx, White balance: ATW, AWC, Camera shutter speed: 1/10000 - 16/30 s. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Optical zoom: 2.5x, Digital zoom: 4x, Focal length range: 2.9 – 7.3
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-u2532la
• Name: NET CAMERA 2MP DOME OUTDOOR/VANDAL WV-U2532LA I-PRO
• Category Code: FNC
• Model: WV-U2532LA
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Aluminium/Polycarbonate (PC)
• Protection features: Corrosion resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Day/night mode: Yes
• Dynamic range: 120
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
• Number of languages: 9
• Certification: UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
• Minimum illumination: 0.07
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 16/30
• Optical sensor size: 1/3
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 2.5
• Digital zoom: 4
• Focal length range: 2.9 - 7.3
• Focus: Motorized
• Maximum aperture number: 3
• Minimum aperture number: 2
• Detect distance (tele): 101.5
• Detect distance (wide): 36.8
• Identify distance (tele): 10.1
• Identify distance (wide): 3.7
• Normal focusing range: 1
• Observe distance (tele): 40.6
• Observe distance (wide): 14.7
• Recognize distance (tele): 20.3
• Recognize distance (wide): 7.4
• Night vision: Yes
• Night vision distance: 30
• LED type: IR
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: H.264/H.265
• Supported video modes: 1080p
• Frame rate: 30
• Back Light Compensation (BLC): Yes
• Bit rate control: Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Automatic gain control (AGC)
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
• Number of users: 14
• Streaming method: Multicast/Unicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Video motion detection: Yes
• Behavior analysis: Scene change detection
• Power source type: PoE
• Power consumption: 140
• Power consumption (typical): 6.7
• DC output voltage: 48
• Operating temperature (T-T): -30 - 50
• Storage temperature (T-T): -20 - 50
• Operating relative humidity (H-H): 10 - 100
• Mobile operating systems supported: Android/iOS
• Width: 154
• Depth: 154
• Height: 103
• Weight: 1000
• Compliance certificates: cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UL
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 1.5
