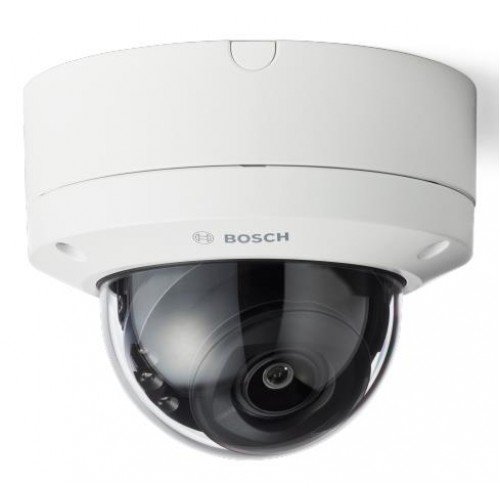

NET CAMERA 2MP IR DOME/NDE-3702-AL BOSCH

Technical Specifications

• Summary: Bosch NDE-3702-AL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 106 - 31.2°, Lens viewing angle, vertical: 55.2 - 17.5°, Tilt angle range: 0 - 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Focal length range: 3.3 - 10.2 mm
• Vendor Homepage: https://www.bosch-professional.com/
• Name: NET CAMERA 2MP IR DOME/NDE-3702-AL BOSCH
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Aluminium
• Protection features: Scratch resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Country of origin: Thailand
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Day/night mode: Yes
• Dynamic range: 120
• Certification: CE, FCC, UL, WEEE, RCM, VCCI, UKCA, BIS, KCC, SASO, CMIM
• Lens viewing angle, horizontal: 106 - 31.2
• Lens viewing angle, vertical: 55.2 - 17.5
• Tilt angle range: 0 - 75
• Pan range: 0 - 355
• Number of Privacy masking areas: 8
• Optical sensor size: 1/2.8
• Number of effective pixels (H x V): 1920 x 1080
• Sensor type: CMOS
• Zoom capability: Yes
• Number of lenses: 1
• Focal length range: 3.3 - 10.2
• Night vision: Yes
• Night vision distance: 30
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video compression formats: H.264/H.265/HEVC/M-JPEG
• Supported graphics resolutions: 1920 x 1080 (HD 1080)/512 x 288
• Frame rate: 30
• Signal-to-Noise Ratio (SNR): 55
• Ethernet LAN: Yes
• Networking standards: IEEE 802.3af/IEEE 802.3at
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 2000
• Ethernet LAN (RJ-45) ports: 1
• Power source type: PoE
• Power consumption (Power over Ethernet (PoE)): 7.6
• Operating temperature (T-T): -30 - 50
• Storage temperature (T-T): -50 - 70
• Operating relative humidity (H-H): 5 - 95
• Storage relative humidity (H-H): 5 - 95
• Height: 111
• Diameter: 137
• Weight: 789.5
• Number of cameras: 1
• Doesnt contain: PVC
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00408
• Unit Calculated Weight: 0.8
