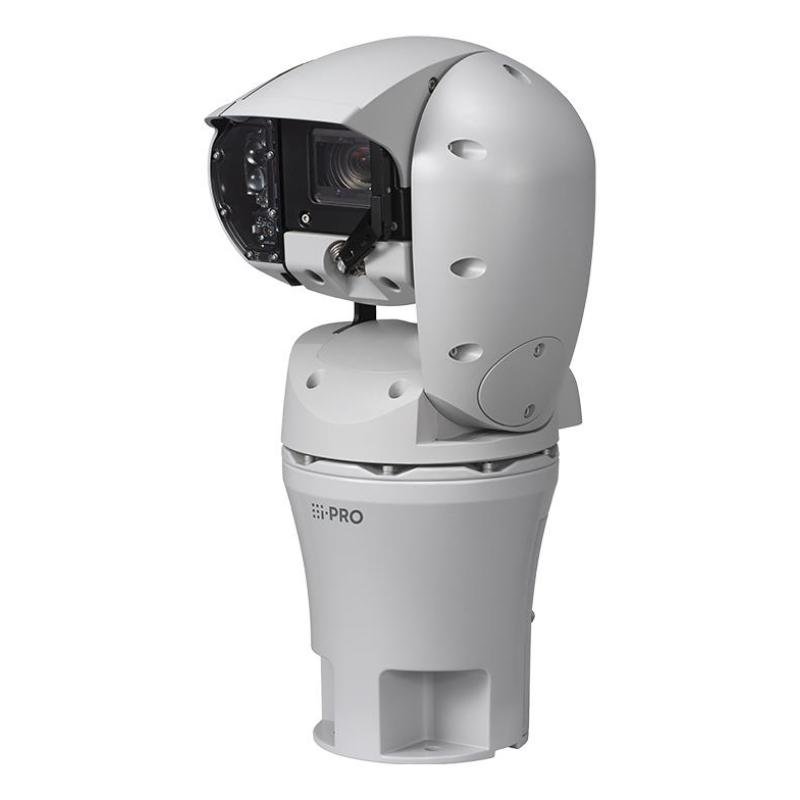

NET CAMERA 2MP PTZ AI OUTD./RUGGED WV-X67311-Z4L3 I-PRO

NET CAMERA 2MP PTZ AI OUTD./RUGGED WV-X67311-Z4L3 I-PRO
NET CAMERA 2MP PTZ AI OUTD./RUGGED WV-X67311-Z4L3 I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
445,891ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453985
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO Aero PTZ. Placement supported: Indoor & outdoor, Connectivity technology: Wired, Processor model: Ambarella CV25M. Mounting type: Floor, Product colour: Grey, Protection features: Corrosion resistant, Dust resistant, Shock resistant, Vibration proof, Water repellent, Wind.... Field of view (FOV) angle: 66°, Tilt angle range: -90 - 90°, Tilt preset speed: 200 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 640x, Detect distance: 2315.7 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/new-products/new-aero-ptz-ai-analytics
  • Name: NET CAMERA 2MP PTZ AI OUTD./RUGGED WV-X67311-Z4L3 I-PRO
  • Category Code: FNC
  • Mounting type: Floor
  • Product colour: Grey
  • Protection features: Corrosion resistant/Dust resistant/Shock resistant/Vibration proof/Water repellent/Wind resistant
  • International Protection (IP) code: IP66, IP68
  • Fog proof: Yes
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • Auto-tracking: Yes
  • Auto pan mode: Yes
  • Auto patrol mode: Yes
  • Alarm input/output: Yes
  • Processor model: Ambarella CV25M
  • Dynamic range: 144
  • Number of languages: 9
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035, EN61000-6-2, EN50121-4, IEC62236-4
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0
  • Field of view (FOV) angle: 66
  • Tilt angle range: -90 - 90
  • Tilt manual speed: 0.065 - 100
  • Tilt preset speed: 200
  • Pan range: 0 - 360
  • Pan manual speed: 0.065 - 100
  • Pan preset speed: 200
  • White balance: ATW/AWC
  • Camera shutter type: Electronic
  • Camera shutter speed: 16/30
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 40
  • Digital zoom: 640
  • Detect distance: 2315.7
  • Observe distance: 926.3
  • Recognize distance: 463.1
  • Focal length range: 4.25 - 170
  • Identify distance: 231.6
  • Normal focusing range: 3
  • LED type: White
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Video compression formats: H.264/H.265
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
  • Frame rate: 60
  • Video intelligence analytic: Yes
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image stabilizer: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
  • Ethernet LAN (RJ-45) ports: 1
  • Intelligent Video Surveillance (IVS) system features: Face detection/Moving object/People counting/Vehicle detection
  • Security algorithms: FIPS 140-2/HTTPS
  • Video motion detection: Yes
  • Web browser: Yes
  • Behavior analysis: Audio exception detection,Scene change detection
  • Firmware upgradeable: Yes
  • Power source type: DC
  • Power consumption (typical): 60
  • DC output voltage: 24
  • Operating temperature (T-T): -50 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Mobile operating systems supported: Android/iOS
  • Width: 226
  • Depth: 266
  • Height: 450
  • Weight: 8100
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01734
  • Unit Calculated Weight: 9
Specifications
Alarm input/outputYes
Audio formats supportedAAC-LC/G.711/G.726
Auto pan modeYes
Auto patrol modeYes
Auto-trackingYes
Back Light Compensation (BLC)Yes
Behavior analysisAudio exception detection,Scene change detection
Camera pan controlYes
Camera shutter speed16/30
Camera shutter typeElectronic
Camera tilt controlYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035, EN61000-6-2, EN50121-4, IEC62236-4
Connectivity technologyWired
DC output voltage24
Depth266
Detect distance2315.7
Digital zoom640
Dynamic range144
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Field of view (FOV) angle66
Firmware upgradeableYes
Focal length range4.25 - 170
Fog proofYes
Frame rate60
Height450
Highlight Compensation (HLC)Yes
Identify distance231.6
Image stabilizerYes
Intelligent Video Surveillance (IVS) system featuresFace detection/Moving object/People counting/Vehicle detection
International Protection (IP) codeIP66, IP68
LED typeWhite
Maximum resolution2048 x 1536
Minimum illumination0
Mobile operating systems supportedAndroid/iOS
Mounting typeFloor
Noise reductionYes
Normal focusing range3
Number of cameras1
Number of languages9
Number of sensors1
Observe distance926.3
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 65
Optical sensor size1/2.8
Optical zoom40
Pan manual speed0.065 - 100
Pan preset speed200
Pan range0 - 360
Placement supportedIndoor & outdoor
Power consumption (typical)60
Power source typeDC
Processor modelAmbarella CV25M
Product colourGrey
Protection featuresCorrosion resistant/Dust resistant/Shock resistant/Vibration proof/Water repellent/Wind resistant
Recognize distance463.1
Security algorithmsFIPS 140-2/HTTPS
Sensor typeCMOS
Summaryi-PRO Aero PTZ. Placement supported: Indoor & outdoor, Connectivity technology: Wired, Processor model: Ambarella CV25M. Mounting type: Floor, Product colour: Grey, Protection features: Corrosion resistant, Dust resistant, Shock resistant, Vibration proof, Water repellent, Wind.... Field of view (FOV) angle: 66°, Tilt angle range: -90 - 90°, Tilt preset speed: 200 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 640x, Detect distance: 2315.7 m
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
Tilt angle range-90 - 90
Tilt manual speed0.065 - 100
Tilt preset speed200
Total megapixels2
Video compression formatsH.264/H.265
Video intelligence analyticYes
Video motion detectionYes
Web browserYes
Weight8100
White balanceATW/AWC
Width226
Zoom capabilityYes
Specs
Category CodeFNC
Description

New Aero PTZ with AI Analytics
The latest version of its Aero PTZ camera line featuring enhanced durability and edge AI processing. Built for extreme weather and environmental conditions, the new, rugged PTZ cameras support up to 4K resolution and feature AI-driven analytics.

Ultimate Reliability
With a zoom range of up to 40x,the shock-resistant, water-proof Aero PTZ cameras are IK10 and IP66/68 rated for uninterrupted video protection during extreme weather conditions. They are also resistant to heavy salt corrosion (C5-M). The camera can operate reliably and clearly in temperatures from -50 to 65°C (-58 to149°F) with i-PRO’s newly developed transparent glass heater. As extreme weather phenomena become more common, i-PRO is developing products to meet the challenge. The Aero PTZ includes a robust pan and tilt motor mechanism that ensures accurate movement in winds up to 270km/h (168 mph), exceeding the Saffir-Simpson wind speed rating for category five cyclones and hurricanes.

Edge AI capability​
The Aero PTZ is equipped with AI-based auto-tracking to keep persons and vehicles in focus, even in complete darkness, up to 560 meters (1,837 feet) with IR illumination. It features the longest nighttime IR illumination among PTZs in the industry. In addition to IR, white-light illumination can be turned on to deter intruders and preserve color information when required.

Multiple AI applications can be installed as needed for the operational environment, with up to three simultaneous AI apps on the 4K model and up to two simultaneous AI apps on the 2MP models. When installed at a shipping port, for example, a salt-resistant Aero PTZ could run the latest Vaxtor OCR application to read shipping container numbers as they pass through the port.​

Enhanced Cyber Security /Compliance
The cameras incorporate signed firmware, brute-force protection, and FIPS 140-2 level 3 compliance with a secure element chip to safeguard against cyber threats.

Easy to install and maintain
The Aero PTZ is designed for hassle-free setup with easy kitting, cable connectors, and a newly developed mount bracket that supports one-person installation. Multiple resolutions and illuminators (IR light, white light) plus a range of body colors are available to meet diverse operational needs. ​Support for additional industry standards includes NEMA TS2 (Traffic), MIL STD-810-G (US DoD), IEC 62236-4, and EN 50121-4 (Railway)

NameNET CAMERA 2MP PTZ AI OUTD./RUGGED WV-X67311-Z4L3 I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/16fd4fc4-e127-42fb-83ec-6e27b82c6c13.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/16fd4fc4-e127-42fb-83ec-6e27b82c6c13.Jpeg
Unit Calculated Volume0.01734
Unit Calculated Weight9
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/new-products/new-aero-ptz-ai-analytics
