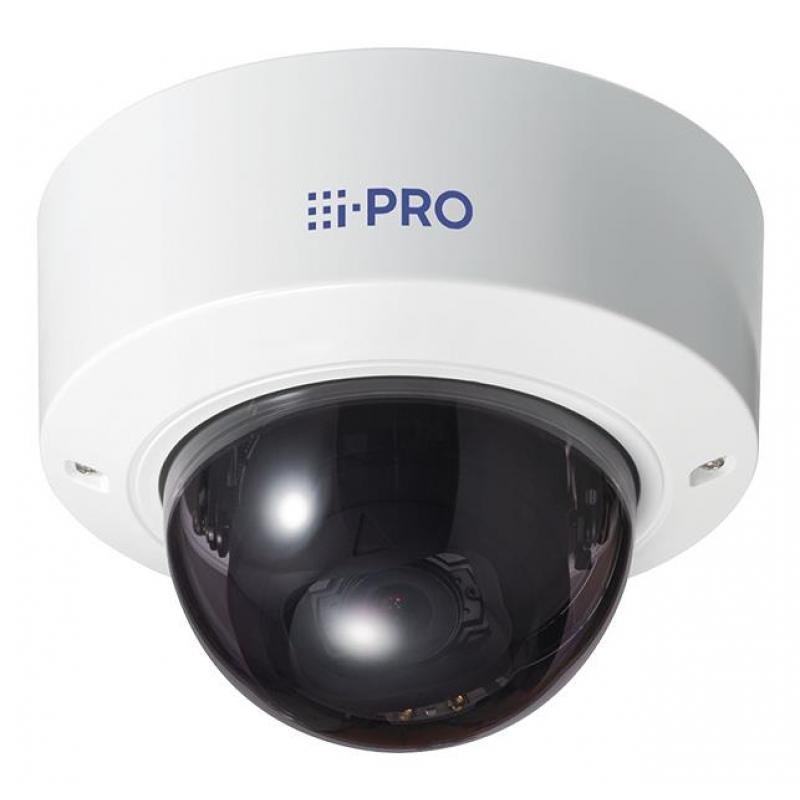

NET CAMERA 4K DOME AI INDOOR/VANDAL WV-S22700-V2LG I-PRO

Technical Specifications

• Summary: i-PRO WV-S22700-V2LG. Placement supported: Indoor, Connectivity technology: Wired, Dynamic range: 132 dB. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 270°, Lens viewing angle, horizontal: -240 - 120°, Lens viewing angle, vertical: -30 - 85°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). White balance (panoramic camera): ATW, AWC
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s22700-v2lg
• Name: NET CAMERA 4K DOME AI INDOOR/VANDAL WV-S22700-V2LG I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Protection features: Vandal proof
• IK code: IK10
• Connectivity technology: Wired
• Placement supported: Indoor
• Dynamic range: 132
• Angle of rotation: 270
• Lens viewing angle, horizontal: -240 - 120
• Lens viewing angle, vertical: -30 - 85
• Optical sensor size: 1/1.8
• Sensor type: CMOS
• White balance (panoramic camera): ATW/AWC
• Focal length range: 4.3 - 8.6
• Auto focus: Yes
• Detect distance (tele): 157.5
• Detect distance (wide): 63.3
• Identify distance (tele): 15.7
• Identify distance (wide): 6.3
• Normal focusing range: 1
• Observe distance (tele): 63
• Observe distance (wide): 25.3
• Recognize distance (tele): 31.5
• Recognize distance (wide): 12.7
• Night vision: Yes
• Night vision distance: 35
• LED type: IR
• Maximum resolution: 3840 x 2160
• Video formats supported: H.264/H.265
• Image quality adjustment: Brightness
• Audio formats supported: AAC-LC/G.711/G.726
• Ethernet LAN: Yes
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP,
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SDHC/SDXC
• Ethernet LAN (RJ-45) ports: 1
• Alarm input channels: 3
• Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Vehicle detection
• Video motion detection: Yes
• Power source type: DC
• Operating temperature (T-T): -10 - 50
• Operating relative humidity (H-H): 10 - 90
• Width: 129.5
• Depth: 102.5
• Weight: 800
• Compliance certificates: National Defense Authorization Act (NDAA)
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 1.2
