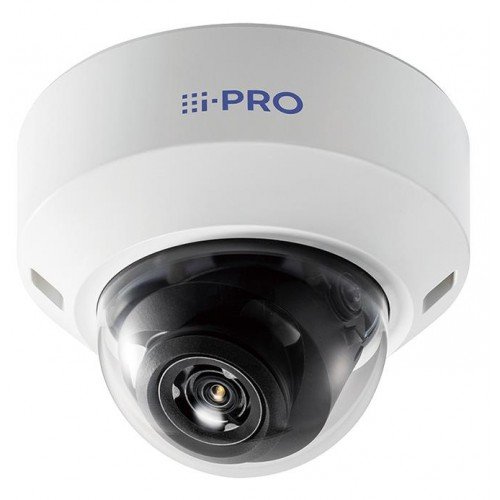

NET CAMERA 4MP DOME INDOOR/WV-U2142LA I-PRO

Technical Specifications

• Summary: i-PRO WV-U2142LA. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.21 lx, Tilt angle range: -30 - 85°, Pan range: -180 - 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 2.5x, Digital zoom: 4x, Focal length range: 2.9 – 7.3
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-u2142la
• Name: NET CAMERA 4MP DOME INDOOR/WV-U2142LA I-PRO
• Category Code: FNC
• Model: WV-U2142LA
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Acrylic/Acrylonitrile butadiene styrene (ABS)
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• Day/night mode: Yes
• Alarm input/output: Yes
• Dynamic range: 102
• Languages support: Danish/English/French/Italian/Japanese/Portuguese/Russian/Spanish/Traditional Chinese
• Number of languages: 9
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.21
• Tilt angle range: -30 - 85
• Pan range: -180 - 180
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 16/30
• Number of sensors: 1
• Optical sensor size: 1/2.7
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 2.5
• Digital zoom: 4
• Focal length range: 2.9 - 7.3
• Focus: Motorized
• Maximum aperture number: 3
• Minimum aperture number: 2
• Detect distance (tele): 126.7
• Detect distance (wide): 41.5
• Identify distance (tele): 12.7
• Identify distance (wide): 4.1
• Normal focusing range: 1
• Observe distance (tele): 50.7
• Observe distance (wide): 16.6
• Recognize distance (tele): 25.3
• Recognize distance (wide): 8.3
• Night vision: Yes
• LED type: IR
• Maximum resolution: 2688 x 1520
• Total megapixels: 4
• Video compression formats: H.264/H.265
• Frame rate: 30
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Automatic gain control (AGC)
• Ethernet LAN: Yes
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
• Number of users: 14
• Streaming method: Multicast/Unicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/SD/SDHC/SDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Alert notification type: E-mail
• Video motion detection: Yes
• Web-based management: Yes
• Behavior analysis: Scene change detection
• Power source type: PoE
• Power consumption: 135
• Power consumption (typical): 6.5
• DC output voltage: 48
• Operating temperature (T-T): -10 - 50
• Storage temperature (T-T): 0 - 50
• Operating relative humidity (H-H): 10 - 90
• Mobile operating systems supported: Android/iOS
• Height: 101
• Diameter: 129.5
• Weight: 350
• Compliance certificates: National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 0.4
