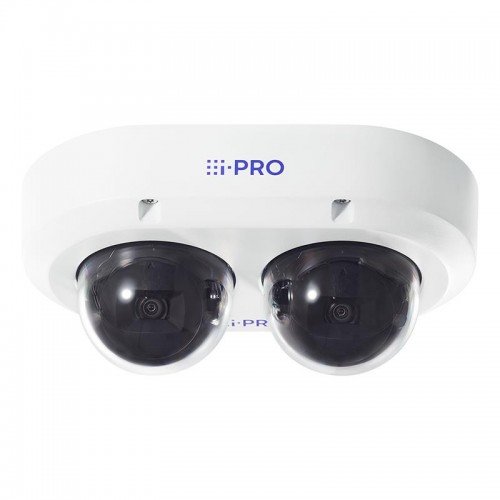

NET CAMERA 4MP DUAL DOME OUTD./VANDAL WV-S85402-V2L I-PRO

Technical Specifications

• Summary: i-PRO WV-S85402-V2L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. White balance: ATW, AWC, Camera shutter speed: 1/10000 - 16/25 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 2.5x, Focal length range: 2.9 - 7.3 mm, Detect distance (wide): 45.1 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s85402-v2l
• Name: NET CAMERA 4MP DUAL DOME OUTD./VANDAL WV-S85402-V2L I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Dynamic range: 108
• Minimum illumination: 0
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 16/25
• Number of Privacy masking areas: 8
• Number of sensors: 2
• Optical sensor size: 1/2.7
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 2.5
• Focal length range: 2.9 - 7.3
• Auto focus: Yes
• Detect distance (tele): 136.5
• Detect distance (wide): 45.1
• Identify distance (tele): 13.6
• Identify distance (wide): 4.5
• Observe distance (tele): 54.6
• Observe distance (wide): 18
• Recognize distance (tele): 27.3
• Recognize distance (wide): 9
• Night vision: Yes
• Night vision distance: 40
• LED type: IR
• Maximum resolution: 2688 x 1520
• Total megapixels: 4
• Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/320 x 180/640 x 360
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Audio formats supported: G.711/G.726
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT
• Number of users: 24
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Web browser: Yes
• Power source type: PoE
• Power consumption (Power over Ethernet (PoE)): 22.2
• Operating temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 10 - 100
• Width: 150
• Depth: 250
• Height: 105
• Weight: 1800
• Compliance certificates: CE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01421
• Unit Calculated Weight: 2
