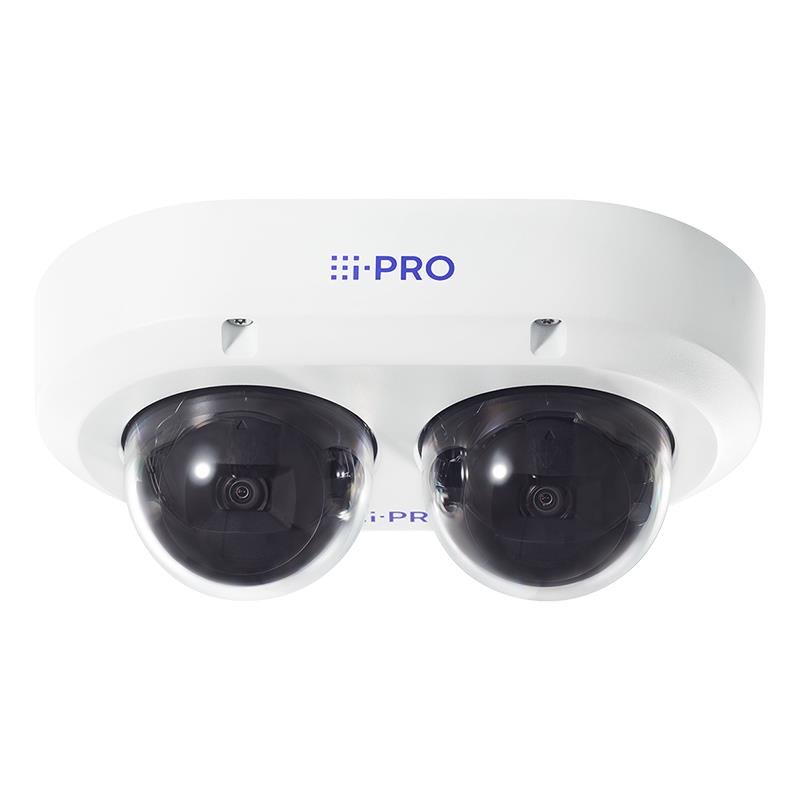

NET CAMERA 4MP DUAL DOME OUTD./VANDAL WV-U85402-V2L I-PRO

NET CAMERA 4MP DUAL DOME OUTD./VANDAL WV-U85402-V2L I-PRO
NET CAMERA 4MP DUAL DOME OUTD./VANDAL WV-U85402-V2L I-PRO
  • Connectivity technology: Wired
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
64,809ден.
  • Достапност: Има залиха
  • Бренд: I-PRO
  • Шифра: 443691
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-U85402-V2L. Placement supported: Outdoor, Connectivity technology: Wired, Dynamic range: 108 dB. Mounting type: Ceiling, Product colour: White, Form factor: Dome. White balance: ATW, AWC. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 2.5x, Focal length range: 2.9 - 7.3 mm, Normal focusing range: 1 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-u85402-v2l
  • Name: NET CAMERA 4MP DUAL DOME OUTD./VANDAL WV-U85402-V2L I-PRO
  • Category Code: FNC
  • Model: WV-U85402-V2L
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Protection features: Dust resistant/Water resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Dynamic range: 108
  • White balance: ATW/AWC
  • Number of sensors: 2
  • Optical sensor size: 1/2.7
  • Sensor type: CMOS
  • Optical zoom: 2.5
  • Focal length range: 2.9 - 7.3
  • Auto focus: Yes
  • Detect distance (tele): 136.5
  • Detect distance (wide): 45.1
  • Identify distance (tele): 13.6
  • Identify distance (wide): 4.5
  • Normal focusing range: 1
  • Observe distance (tele): 54.6
  • Observe distance (wide): 18
  • Recognize distance (tele): 27.3
  • Recognize distance (wide): 9
  • Night vision: Yes
  • Night vision distance: 40
  • LED type: IR
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 4
  • Video formats supported: H.264/H.265
  • Frame rate: 30
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT
  • Number of simultaneous live view channels: 24
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
  • Power source type: DC,PoE
  • Operating temperature (T-T): -40 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Width: 150
  • Depth: 250
  • Height: 105
  • Weight: 1800
  • Compliance certificates: National Defense Authorization Act (NDAA)
  • Number of cameras: 2
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01421
  • Unit Calculated Weight: 2
Specifications
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Auto focusYes
Back Light Compensation (BLC)Yes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
Compliance certificatesNational Defense Authorization Act (NDAA)
Connectivity technologyWired
Depth250
Detect distance (tele)136.5
Detect distance (wide)45.1
Dynamic range108
Ethernet LANYes
Focal length range2.9 - 7.3
Form factorDome
Frame rate30
Height105
Highlight Compensation (HLC)Yes
Identify distance (tele)13.6
Identify distance (wide)4.5
IK codeIK10
International Protection (IP) codeIP66, IP67
LED typeIR
Maximum resolution2688 x 1520
Mounting typeCeiling
Night visionYes
Night vision distance40
Noise reductionYes
Normal focusing range1
Number of cameras2
Number of sensors2
Number of simultaneous live view channels24
Observe distance (tele)54.6
Observe distance (wide)18
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.7
Optical zoom2.5
Placement supportedOutdoor
Power source typeDC,PoE
Product colourWhite
Protection featuresDust resistant/Water resistant
Recognize distance (tele)27.3
Recognize distance (wide)9
Sensor typeCMOS
Summaryi-PRO WV-U85402-V2L. Placement supported: Outdoor, Connectivity technology: Wired, Dynamic range: 108 dB. Mounting type: Ceiling, Product colour: White, Form factor: Dome. White balance: ATW, AWC. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 2.5x, Focal length range: 2.9 - 7.3 mm, Normal focusing range: 1 m
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT
Total megapixels4
Video formats supportedH.264/H.265
Weight1800
White balanceATW/AWC
Width150
Specs
Category CodeFNC
Description

  • 2 x 4MP Multi-directional camera
  • One IP address, One VMS license
  • Built-in IR-LED（40m, 131ft）
  • Wide angle of view (Horizontal 100°)
  • Corridor mode (90 degrees or 270 degrees in image rotation)
  • IP66, IP67, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement with TPM functionality (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

ModelWV-U85402-V2L
NameNET CAMERA 4MP DUAL DOME OUTD./VANDAL WV-U85402-V2L I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/35e5f6e5-cc68-4019-8031-6073b289a4e3.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/35e5f6e5-cc68-4019-8031-6073b289a4e3.Jpeg
Unit Calculated Volume0.01421
Unit Calculated Weight2
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-u85402-v2l
