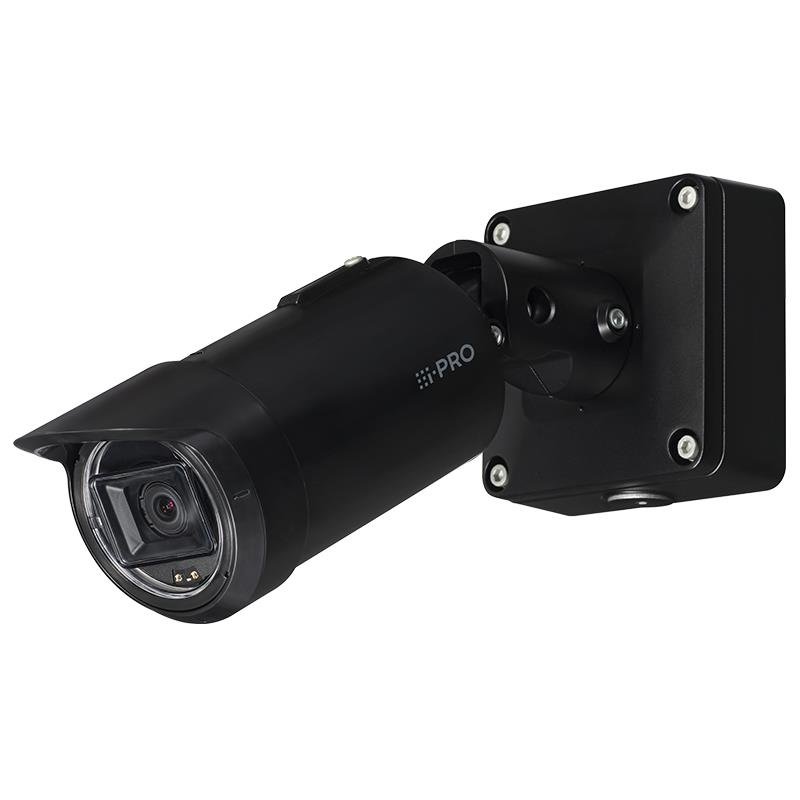

NET CAMERA 5MP BULLET AI OUTD./VANDAL WV-S15500-V3LN1 I-PRO

NET CAMERA 5MP BULLET AI OUTD./VANDAL WV-S15500-V3LN1 I-PRO
NET CAMERA 5MP BULLET AI OUTD./VANDAL WV-S15500-V3LN1 I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3072 x 1728
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
76,575ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453927
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S15500-V3LN1. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.04 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 34 - 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 9.3x, Focal length range: 2.9 - 9 mm, Focus: Motorized
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s15500-v3ln1
  • Name: NET CAMERA 5MP BULLET AI OUTD./VANDAL WV-S15500-V3LN1 I-PRO
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: Black
  • Housing material: Aluminium/Polycarbonate (PC)/Resin
  • Protection features: Vandal proof
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • Alarm input/output: Yes
  • Dynamic range: 132
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
  • Minimum illumination: 0.04
  • Angle of rotation: 360
  • Lens viewing angle, horizontal: 34 - 106
  • Lens viewing angle, vertical: 19 - 77
  • Tilt angle range: -100 - 100
  • White balance: ATW/AWC
  • Camera shutter speed: 1/30 - 1/10000
  • Number of Privacy masking areas: 8
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 9.3
  • Number of lenses: 1
  • Focal length range: 2.9 - 9
  • Auto focus: Yes
  • Focus: Motorized
  • Maximum aperture number: 2.5
  • Minimum aperture number: 1.3
  • Closest focusing distance: 0.3
  • Detect distance (tele): 201
  • Detect distance (wide): 46.3
  • Identify distance (tele): 20.1
  • Identify distance (wide): 4.6
  • Observe distance (tele): 80.4
  • Observe distance (wide): 18.5
  • Recognize distance (tele): 40.2
  • Recognize distance (wide): 9.3
  • Night vision: Yes
  • Night vision distance: 55
  • LED type: IR
  • Maximum resolution: 3072 x 1728
  • Total megapixels: 5
  • Video formats supported: H.264/H.265
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/320 x 180/320 x 240/400 x 300/640 x 360/800 x 600 (SVGA)
  • Frame rate: 30
  • Video intelligence analytic: Yes
  • Analog signal format system: NTSC/PAL
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Text caption overlay: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Bit rate range: 16 - 128
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Face detection/Scene change/Vehicle detection
  • Privacy protection: Yes
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: DC,PoE
  • AC input voltage: 12-48
  • Power consumption (typical): 12
  • Power consumption (Power over Ethernet (PoE)): 11.5
  • Operating temperature (T-T): -40 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Width: 133
  • Depth: 383
  • Height: 133
  • Weight: 2400
  • Number of cameras: 1
  • Unit Calculated Volume: 0.0153
  • Unit Calculated Weight: 3
Specifications
AC input voltage12-48
Alarm input/outputYes
Alert notification typeE-mail
Analog signal format systemNTSC/PAL
Angle of rotation360
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Auto focusYes
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate range16 - 128
Camera shutter speed1/30 - 1/10000
Card reader integratedYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Closest focusing distance0.3
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Depth383
Detect distance (tele)201
Detect distance (wide)46.3
Dynamic range132
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range2.9 - 9
FocusMotorized
Fog proofYes
Form factorBullet
Frame rate30
Height133
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)/Resin
Identify distance (tele)20.1
Identify distance (wide)4.6
IK codeIK10
Intelligent Video Surveillance (IVS) system featuresFace detection/Scene change/Vehicle detection
International Protection (IP) codeIP66
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
LED typeIR
Lens viewing angle, horizontal34 - 106
Lens viewing angle, vertical19 - 77
Maximum aperture number2.5
Maximum memory card size512
Maximum resolution3072 x 1728
Microphone inYes
Minimum aperture number1.3
Minimum illumination0.04
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af
Night visionYes
Night vision distance55
Noise reductionYes
Number of cameras1
Number of languages9
Number of lenses1
Number of Privacy masking areas8
Number of sensors1
Number of users14
Observe distance (tele)80.4
Observe distance (wide)18.5
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom9.3
Placement supportedIndoor & outdoor
Power consumption (Power over Ethernet (PoE))11.5
Power consumption (typical)12
Power source typeDC,PoE
Privacy protectionYes
Product colourBlack
Protection featuresVandal proof
Recognize distance (tele)40.2
Recognize distance (wide)9.3
Sensor typeCMOS
Summaryi-PRO WV-S15500-V3LN1. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.04 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 34 - 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 9.3x, Focal length range: 2.9 - 9 mm, Focus: Motorized
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2560 x 1920/320 x 180/320 x 240/400 x 300/640 x 360/800 x 600 (SVGA)
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
Text caption overlayYes
Tilt angle range-100 - 100
Total megapixels5
TypeIP security camera
Video formats supportedH.264/H.265
Video intelligence analyticYes
Video motion detectionYes
Web browserYes
Weight2400
White balanceATW/AWC
Width133
Zoom capabilityYes
Specs
Category CodeFNC
Description

S-series High resolution Network camera with AI engine

The S-Series network cameras offer a new standard in i-PRO video surveillance with drastically improved image quality with advanced technology. It comes with pre-installed AI analytics applications that detects people and vehicles with accuracy, allowing you to easily start state-of-the-art video surveillance. The camera can be configured while keeping the unit in the box with the acclaimed "Easy Kitting Packaging", making the installation process smooth and easy.
- Drastically improved image quality by advanced technology and AI intelligent Auto
- Pre-installed AI analytics applications to detect human and vehicles. Ready for installing 3rd party applications
- Detecting suspicious sound like Gunshot, Yell, Vehicle horn, and Glass break, with external microphones
- Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box
- i-PRO Configuration Tool "iCT" can set up 1024 cameras at the same time.

High security standard

- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign), FIPS 140-2 Level 3 certified EdgeLock SE050F secure element (NXP Semiconductors) is embeded.


  • 5MP
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 132dB
  • Color night vision (0.05 to 0.07 lx)
  • Smart Coding (with AI Engine)
  • ClearSight Coating
  • Built-in IR LED
  • IK10 Vandal Resistant
  • Built-in FIPS 140-2 Level 3 Certified Secure Element
  • NDAA Compliant
