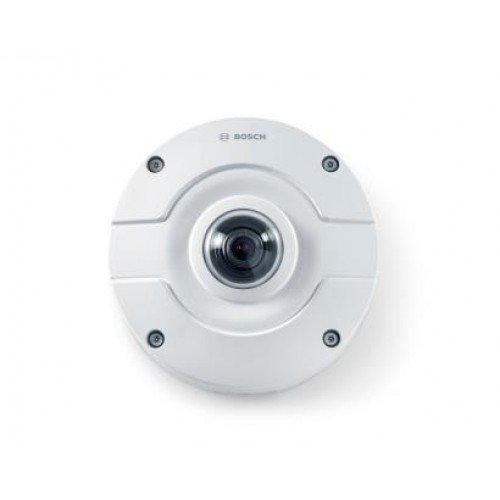

NET CAMERA 5MP IP MICRO DOME/NDV-3503-F03-P BOSCH

Technical Specifications

• Summary: Bosch FLEXIDOME IP panoramic 6000. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.15 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Sensor type (panoramic camera): CMOS, Maximum resolution (panoramic camera): 2688 x 800 pixels
• Vendor Homepage: https://www.boschsecurity.com/
• Name: NET CAMERA 5MP IP MICRO DOME/NDV-3503-F03-P BOSCH
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: White
• Protection features: Impact resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Dynamic range: 92
• Certification: CE, cULus, WEEE, RCM, EAC and China RoHS
• Minimum illumination: 0.15
• Lens viewing angle, horizontal: 180
• Lens viewing angle, vertical: 93
• White balance: Auto/Manual/Sodium lamp
• Camera shutter type: Electronic
• Camera shutter speed: 1/15000 - 1/30
• Sensor type (panoramic camera): CMOS
• Maximum resolution (panoramic camera): 2688 x 800
• Optical sensor size: 1/2.3
• Sensor type: CMOS
• Lens diameter: 2.1
• Night vision: Yes
• Maximum resolution: 3640 x 2160
• Total megapixels: 12
• Video formats supported: H.264/M-JPEG
• Video compression formats: H.264/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1600 x 1200 (UXGA)/2048 x 1152
• Frame rate: 30
• Video streaming: Yes
• Noise reduction: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Supported network protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no- Network ip.com), SMTP, iSCSI, UPnP
• Card reader integrated: Yes
• Compatible memory cards: SDHC/SDXC
• Power source type: PoE
• Power consumption: 140
• Operating temperature (T-T): -30 - 45
• Storage temperature (T-T): -20 - 60
• Height: 108.4
• Diameter: 174.9
• Weight: 2060
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.002816
• Unit Calculated Weight: 0.5
