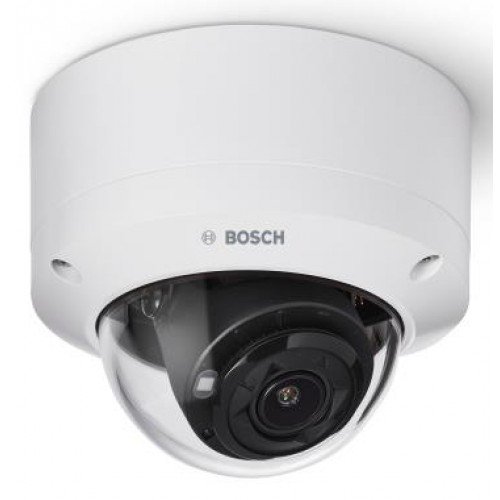

NET CAMERA 8MP IR DOME/NDE-5704-AL BOSCH

Technical Specifications

• Summary: Bosch NDE-5704-AL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Lens viewing angle, vertical: 105 - 31°, Lens viewing angle, diagonal: 57 - 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 3864 x 2192 pixels. Lens diameter: 1.05 cm
• Name: NET CAMERA 8MP IR DOME/NDE-5704-AL BOSCH
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Aluminium/Polycarbonate (PC)
• Protection features: Impact resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Country of origin: Thailand
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Wide Dynamic Range (WDR): Yes
• Dynamic range: 120
• Certification: CE, FCC, UL, WEEE, RCM, VCCI, UKCA, China RoHS, BIS
• Lens viewing angle, vertical: 105 - 31
• Lens viewing angle, diagonal: 57 - 18
• Number of Privacy masking areas: 8
• Optical sensor size: 1/2.8
• Number of effective pixels (H x V): 3864 x 2192
• Sensor type: CMOS
• Number of lenses: 1
• Lens diameter: 10.5
• Night vision: Yes
• Night vision distance: 40
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 3840 x 2160
• Total megapixels: 8
• Video formats supported: H.264/H.265/HEVC/M-JPEG
• Supported video modes: 1080p/4320p/720p
• Frame rate: 30
• Signal-to-Noise Ratio (SNR): 50
• Ethernet LAN: Yes
• Networking standards: IEEE 802.3af
• Supported network protocols: IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); 802.1x, EAP/ TLS; DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, noip.com); SMTP;
• Card reader integrated: Yes
• Compatible memory cards: MicroSDHC/MicroSDXC
• Maximum memory card size: 2000
• Ethernet LAN (RJ-45) ports: 1
• USB port: Yes
• Power source type: AC,DC,PoE
• AC input voltage: 24
• Power consumption (typical): 5.62
• Power consumption (max): 8.22
• Power consumption (Power over Ethernet (PoE)): 8.9
• Operating temperature (T-T): -40 - 55
• Storage temperature (T-T): -30 - 70
• Operating relative humidity (H-H): 5 - 93
• Storage relative humidity (H-H): 0 - 98
• Height: 122
• Diameter: 148
• Weight: 1130
• Number of cameras: 1
• Manual: Yes
• Doesnt contain: PVC
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01102
• Unit Calculated Weight: 1.5
