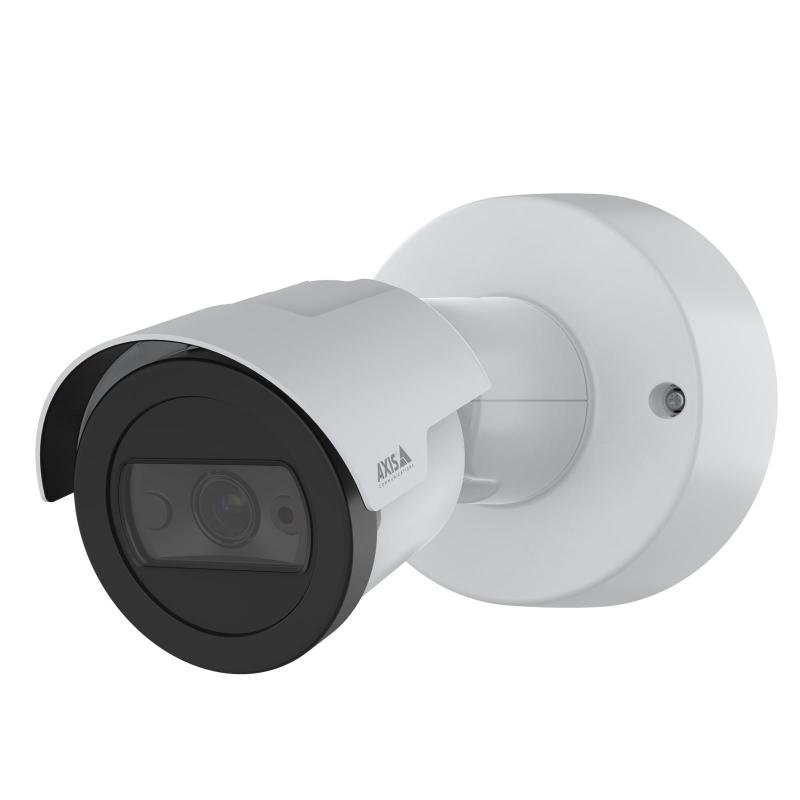

NET CAMERA M2036-LE IR BULLET/WHITE 02125-001 AXIS

NET CAMERA M2036-LE IR BULLET/WHITE 02125-001 AXIS
NET CAMERA M2036-LE IR BULLET/WHITE 02125-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2304 x 1728
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
33,201ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 364493
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02125-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 81°, White balance: Auto. Sensor type: CMOS. Fixed focal length: 2.4 mm, Closest focusing distance: 0.5 m
  • Vendor Homepage: https://www.axis.com/products/axis-m2036-le#part-numbers
  • Name: NET CAMERA M2036-LE IR BULLET/WHITE 02125-001 AXIS
  • Category Code: FNC
  • Model: M2036-LE
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Aluminium/Plastic
  • Protection features: Dust resistant/Vandal proof/Water resistant
  • International Protection (IP) code: IP66, IP67
  • IK code: IK08
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A IEC/EN 62368-1, IEC 62471, IS 13252 IEC 60068-2-X, IEC/EN 60
  • Minimum illumination: 0
  • Lens viewing angle, horizontal: 130
  • Lens viewing angle, vertical: 81
  • White balance: Auto
  • Camera shutter speed: 1/38500 - 1/5
  • Sensor type: CMOS
  • Number of lenses: 1
  • Maximum aperture number: 2.1
  • Closest focusing distance: 0.5
  • Fixed focal length: 2.4
  • Night vision: Yes
  • Night vision distance: 20
  • LED type: IR
  • Infra-red wavelength: 855
  • Maximum resolution: 2304 x 1728
  • Total megapixels: 4
  • Video compression formats: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 2304 x 1728/2668 x 1512
  • Supported video modes: 1440p
  • Video recording: Yes
  • Video intelligence analytic: Yes
  • Video streaming: Yes
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Security algorithms: 802.1x RADIUS/EAP-TLS/HTTPS/SSH
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 5
  • Power consumption (max): 12.95
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Diameter: 101
  • Length: 170
  • Weight: 491
  • Number of cameras: 1
  • Doesnt contain: BFR/PVC
  • Harmonized System (HS) code: 85258900
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.002464
  • Unit Calculated Weight: 0.7
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Camera shutter speed1/38500 - 1/5
Card reader integratedYes
CertificationCISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A IEC/EN 62368-1, IEC 62471, IS 13252 IEC 60068-2-X, IEC/EN 60
Closest focusing distance0.5
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC
Connectivity technologyWired
Day/night modeYes
Diameter101
Doesn\'t containBFR/PVC
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length2.4
Flash memory512
Form factorBullet
Harmonized System (HS) code85258900
Housing materialAluminium/Plastic
HTTPS encryptionYes
IK codeIK08
Image stabilizerYes
Infra-red wavelength855
Infrared (IR) cut-off filterYes
Internal memory1024
International Protection (IP) codeIP66, IP67
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
LED typeIR
Lens viewing angle, horizontal130
Lens viewing angle, vertical81
Maximum aperture number2.1
Maximum resolution2304 x 1728
Minimum illumination0
Mounting typeCeiling/wall
Networking standardsIEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u
Night visionYes
Night vision distance20
Number of cameras1
Number of languages12
Number of lenses1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 50
Password protectionYes
Placement supportedOutdoor
Power consumption (max)12.95
Power consumption (typical)5
Power source typePoE
Privacy maskingYes
Product colourWhite
Protection featuresDust resistant/Vandal proof/Water resistant
PTZ modesDigital PTZ
Quality of Service (QoS) supportYes
Security algorithms802.1x RADIUS/EAP-TLS/HTTPS/SSH
Sensor typeCMOS
Storage temperature (T-T)-40 - 65
SummaryAxis 02125-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 81°, White balance: Auto. Sensor type: CMOS. Fixed focal length: 2.4 mm, Closest focusing distance: 0.5 m
Supported graphics resolutions2304 x 1728/2668 x 1512
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1
Supported video modes1440p
Text caption overlayYes
Total megapixels4
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video intelligence analyticYes
Video motion detectionYes
Video recordingYes
Video streamingYes
Weight491
White balanceAuto
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

Ideal for tough environments and rough weather, AXIS M2036-LE delivers Quad HD 1440p/4 MP. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This IK08-rated camera offers flexible and cost-efficient installation including support for PoE. Edge-to-edge technology allows for smart pairing with Axis Speakers. Plus, a spacious, sealed back box ensures secure cable management.

  • Analytics with deep learning; Compact, lightweight design; Outdoor-ready with IR illumination; Quad HD 1440p/4 MP; Zipstream supporting H.264/H.265

Length170
ModelM2036-LE
NameNET CAMERA M2036-LE IR BULLET/WHITE 02125-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/d185c110-8895-4099-9619-bfbf5bb63081.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/d185c110-8895-4099-9619-bfbf5bb63081.Jpeg
Unit Calculated Volume0.002464
Unit Calculated Weight0.7
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m2036-le#part-numbers
