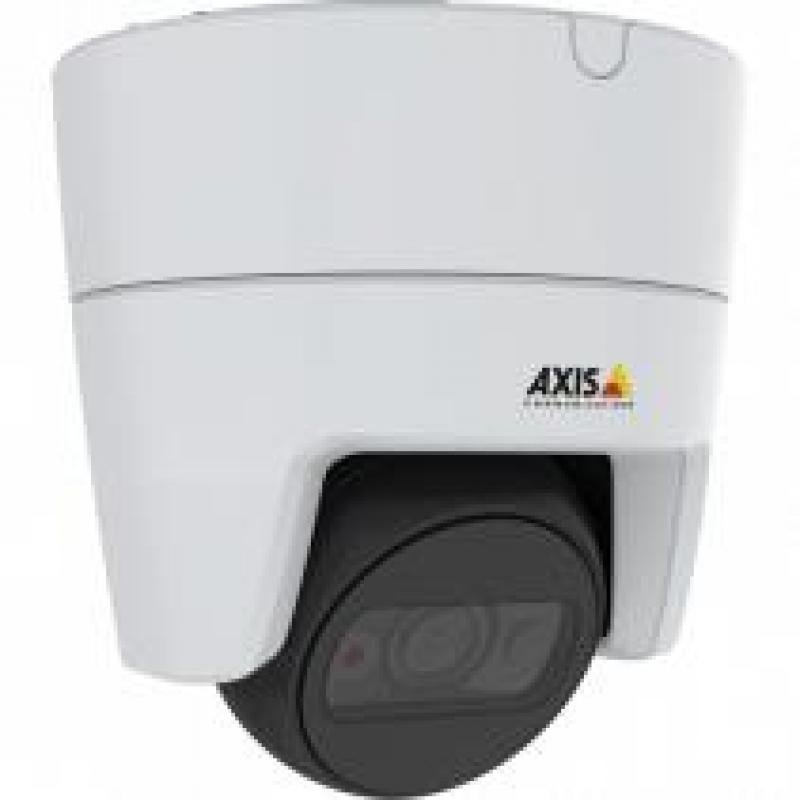

NET CAMERA M3116-LVE H.265/MINI DOME 01605-001 AXIS

NET CAMERA M3116-LVE H.265/MINI DOME 01605-001 AXIS
NET CAMERA M3116-LVE H.265/MINI DOME 01605-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
Врз основа на 0 коментари. - Напиши коментар
31,858ден.
  • Достапност:
  • Шифра: 291751
  • Гарантен рок: 12 месеци
  • Рок на испорака: 13-16 дена
AXIS
Во кошничка
Листа на желби Спореди
Сподели

Technical Specifications

  • Summary: Axis 01605-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 190°, Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 72°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2.4 mm
  • Vendor Homepage: https://inishop.com/index.cgi?sessid=EWX1dCck4z8nGoXwfQx2hIWnRnfGSSdUzIermfR7B4uUC6hf;product_id=77813462;tmpl=product_details.html#
  • Name: NET CAMERA M3116-LVE H.265/MINI DOME 01605-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • International Protection (IP) code: IP66
  • IK code: IK08
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Certification: EN 55024, EN 55032 A, EN 55035, EN 61000-6-1,EN 61000-6-2, FCC 15 B A, KC KN32 A, KC KN35, RCM AS/NZS CISPR 32 A, ICES-3(A)/NMB-3(A), VCCI A IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-14, IEC 60068-2-6, IEC 60068-2-27 IEC/EN 62262 IK08, IEC
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0
  • Angle of rotation: 190
  • Lens viewing angle, horizontal: 130
  • Lens viewing angle, vertical: 72
  • Tilt angle range: 0 - 60
  • Pan range: -180 - 180
  • Camera shutter speed: 1/33500 - 1/5
  • Number of sensors: 1
  • Optical sensor size: 1/2.7
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Number of lenses: 1
  • Fixed focus: Yes
  • Maximum aperture number: 2.1
  • Fixed focal length: 2.4
  • Night vision: Yes
  • Night vision distance: 20
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Video compression formats: AVC/H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 2688 x 1512/320 x 240
  • Frame rate: 30
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Privacy masking: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, SIP, LLDP
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 4.6
  • Power consumption (max): 8.7
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 94
  • Diameter: 101
  • Weight: 390
  • Number of cameras: 1
  • Manual: Yes
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001587
  • Unit Calculated Weight: 0.52
