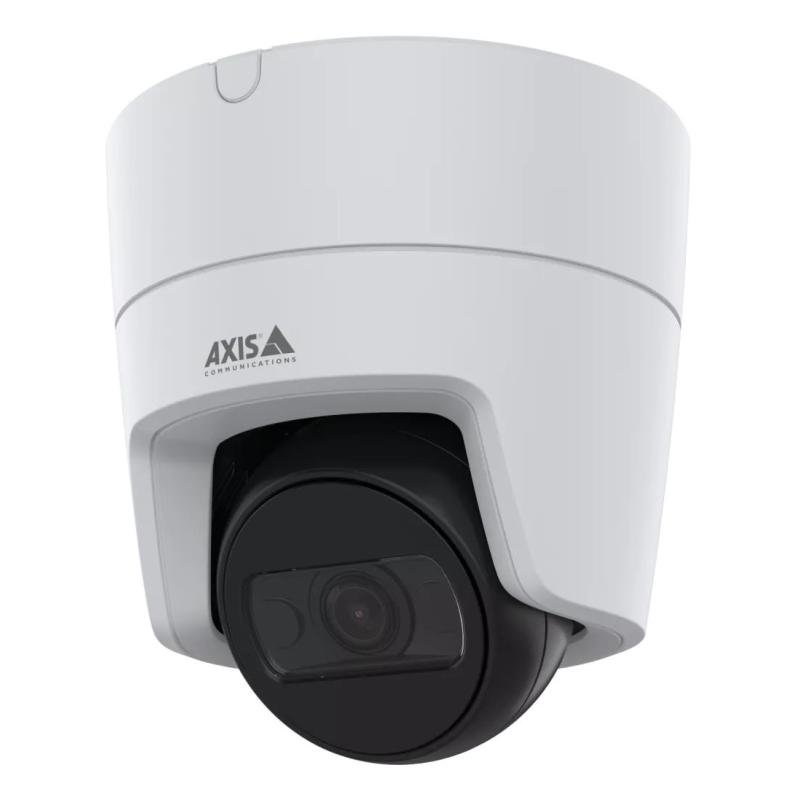

NET CAMERA M3128-LVE/WHITE 02920-001 AXIS

NET CAMERA M3128-LVE/WHITE 02920-001 AXIS
NET CAMERA M3128-LVE/WHITE 02920-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 3840 x 2160
Врз основа на 0 коментари. - Напиши коментар
45,381ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 436074
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis M3128-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.22 lx, Angle of rotation: 95°, Vertical field of view (thermal module): 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
  • Vendor Homepage: https://www.axis.com/products/axis-m3128-lve
  • Name: NET CAMERA M3128-LVE/WHITE 02920-001 AXIS
  • Category Code: FNC
  • Model: M3128-LVE, 02920-001
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Plastic
  • Protection features: Impact resistant/Weather resistant
  • International Protection (IP) code: IP66
  • IK code: IK08
  • Weatherproof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Certification: CSA, UL/cUL, BIS, CE, KC, EAC, VCCI, RCM, BSMI EN 55024, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES(A)/NMB(A) Japan: VCCI Class A Korea: KC KN35, KC KN32 Class A, KS C 9835, KS C
  • Minimum illumination: 0.22
  • Angle of rotation: 95
  • Horizontal field of view (thermal module): 110
  • Vertical field of view (thermal module): 60
  • Tilt angle range: 0 - 60
  • Pan range: -180 - 180
  • Camera pixel size: 1.45
  • Camera shutter speed: 1/71500 - 2
  • Sensor type (panoramic camera): CMOS
  • Signal-to-Noise Ratio (SNR) (panoramic camera): 55
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Number of lenses: 1
  • Focal length range: 2.9
  • Detect distance (wide): 80
  • Identify distance (wide): 8
  • Normal focusing range: 0.5
  • Observe distance (wide): 31.7
  • Recognize distance (wide): 16
  • Night vision: Yes
  • Night vision distance: 20
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 3840 x 2160
  • Video formats supported: AVC/H.264/H.265/HEVC
  • Video compression formats: MPEG/MPEG4
  • Supported graphics resolutions: 160 x 90/3840 x 2160
  • Supported video modes: 1080p
  • Frame rate: 15
  • Video streaming: Yes
  • Built-in speaker(s): Yes
  • Audio system: 2-way
  • Audio formats supported: AAC-LC/ADPCM/LPCM/PCM
  • Sample rate: 48
  • Signal-to-Noise Ratio (SNR): 55
  • Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Internal memory: 2048
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Digest authentication: Yes
  • Human and vehicle targets classification: Yes
  • Intelligent Video Surveillance (IVS) system features: Human detection/Vehicle detection
  • Pixel counter: Yes
  • Security algorithms: HTTPS
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 4.3
  • Power consumption (max): 10.5
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 93
  • Diameter: 101
  • Weight: 390
  • Compliance certificates: Electromagnetic Compatibility (EMC)/Trade Agreements Act (TAA)
  • Number of cameras: 1
  • Manual: Yes
  • Doesnt contain: PVC
  • Units per Pallet: 0
  • Units per Shipping Box: 12
  • Unit Calculated Volume: 0.001959
  • Unit Calculated Weight: 0.575
Specifications
Active tampering alarmYes
Angle of rotation95
Audio formats supportedAAC-LC/ADPCM/LPCM/PCM
Audio system2-way
Built-in speaker(s)Yes
Camera pixel size1.45
Camera shutter speed1/71500 - 2
Card reader integratedYes
CertificationCSA, UL/cUL, BIS, CE, KC, EAC, VCCI, RCM, BSMI EN 55024, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES(A)/NMB(A) Japan: VCCI Class A Korea: KC KN35, KC KN32 Class A, KS C 9835, KS C
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesElectromagnetic Compatibility (EMC)/Trade Agreements Act (TAA)
Connectivity technologyWired
Day/night modeYes
Detect distance (wide)80
Diameter101
Digest authenticationYes
Doesn\'t containPVC
Flash memory512
Focal length range2.9
Form factorDome
Frame rate15
Height93
Horizontal field of view (thermal module)110
Housing materialPlastic
Human and vehicle targets classificationYes
Identify distance (wide)8
IK codeIK08
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresHuman detection/Vehicle detection
Internal memory2048
International Protection (IP) codeIP66
LED typeIR
ManualYes
Maximum resolution3840 x 2160
Minimum illumination0.22
Mounting typeCeiling
Networking standardsIEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance20
Normal focusing range0.5
Number of cameras1
Number of lenses1
Number of sensors1
Observe distance (wide)31.7
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.8
Pan range-180 - 180
Password protectionYes
Pixel counterYes
Placement supportedOutdoor
Power consumption (max)10.5
Power consumption (typical)4.3
Power source typePoE
Product colourWhite
Protection featuresImpact resistant/Weather resistant
PTZ controlYes
PTZ modesDigital PTZ
Recognize distance (wide)16
Sample rate48
Security algorithmsHTTPS
Sensor typeCMOS
Sensor type (panoramic camera)CMOS
Signal-to-Noise Ratio (SNR)55
Signal-to-Noise Ratio (SNR) (panoramic camera)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis M3128-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.22 lx, Angle of rotation: 95°, Vertical field of view (thermal module): 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
Supported graphics resolutions160 x 90/3840 x 2160
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/
Supported video modes1080p
Tilt angle range0 - 60
TypeIP security camera
Vertical field of view (thermal module)60
Video compression formatsMPEG/MPEG4
Video formats supportedAVC/H.264/H.265/HEVC
Video motion detectionYes
Video streamingYes
WeatherproofYes
Weight390
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

This turret-style, AI-powered dome camera delivers great 8 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors.

Great image quality
AXIS M3128-LVE offers great 8 MP resolution with 110° field of view. Built-in OptimizedIR allows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there’s no need for extra lighting—you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene.

Powerful with strong security
Including a deep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track and count objects like humans and vehicles. This DLPU also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.

Flexible and outdoor-ready
This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it’s available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).

  • Great image quality in 4K
  • WDR and OptimizedIR
  • Available in black or white
  • AI-based video analytics
  • Built-in cybersecurity with Axis Edge Vault

ModelM3128-LVE, 02920-001
NameNET CAMERA M3128-LVE/WHITE 02920-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/7d20e823-6383-4dbc-abff-2377dc923845.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/7d20e823-6383-4dbc-abff-2377dc923845.Jpeg
Unit Calculated Volume0.001959
Unit Calculated Weight0.575
Units per Pallet0
Units per Shipping Box12
Vendor Homepagehttps://www.axis.com/products/axis-m3128-lve
