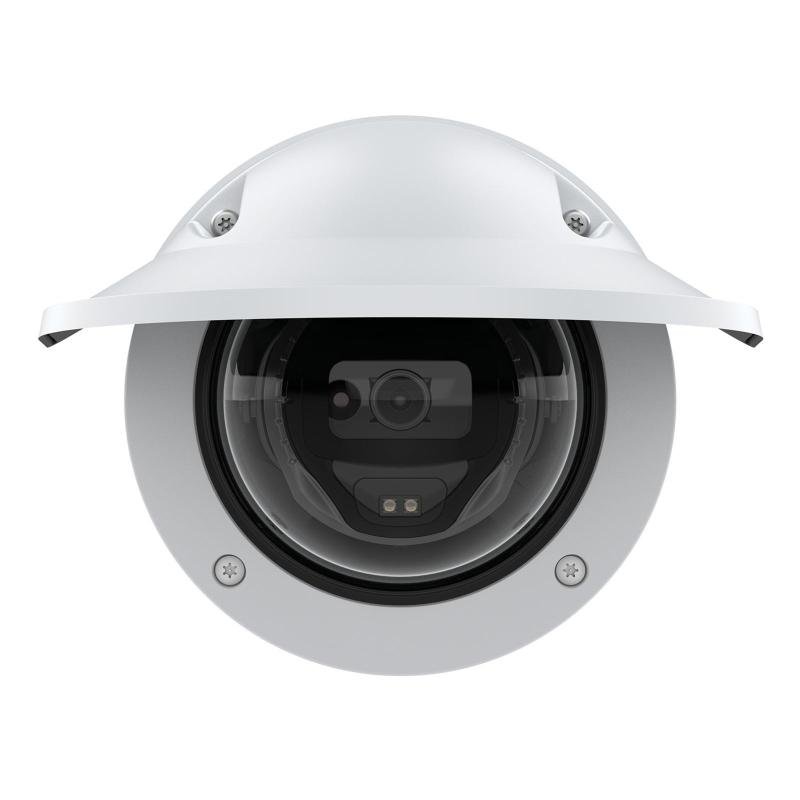

NET CAMERA M3216-LVE DOME/02372-001 AXIS

NET CAMERA M3216-LVE DOME/02372-001 AXIS
NET CAMERA M3216-LVE DOME/02372-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1512
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
51,965ден.
  • Достапност: Има залиха
  • Бренд: AXIS
  • Шифра: 391182
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis M3216-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.16 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2.9 mm, Closest focusing distance: 1 m
  • Vendor Homepage: https://www.axis.com/products/axis-m3216-lve
  • Name: NET CAMERA M3216-LVE DOME/02372-001 AXIS
  • Category Code: FNC
  • Model: M3216-LVE
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Plastic/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Minimum illumination: 0.16
  • Angle of rotation: 190
  • Lens viewing angle, horizontal: 102
  • Lens viewing angle, vertical: 73
  • Tilt angle range: -10 - 80
  • Pan range: 0 - 190
  • Camera shutter speed: 1/50000 - 1/5
  • Optical sensor size: 1/2.7
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Minimum aperture number: 2
  • Closest focusing distance: 1
  • Fixed focal length: 2.9
  • Night vision: Yes
  • LED type: IR
  • Maximum resolution: 2688 x 1512
  • Video compression formats: H.264/H.265
  • Frame rate: 30
  • Video streaming: Yes
  • Privacy masking: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS,
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • HTTPS encryption: Yes
  • Security algorithms: EAP-TLS/HTTPS
  • Power source type: PoE
  • Power consumption (Power over Ethernet (PoE)): 4.8
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 102
  • Diameter: 149
  • Weight: 791
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00602
  • Unit Calculated Weight: 1.09
Specifications
Angle of rotation190
Camera shutter speed1/50000 - 1/5
Card reader integratedYes
Closest focusing distance1
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Diameter149
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length2.9
Flash memory8192
Fog proofYes
Form factorDome
Frame rate30
Height102
Housing materialPlastic/Polycarbonate (PC)
HTTPS encryptionYes
IK codeIK10
Internal memory1024
International Protection (IP) codeIP66
LED typeIR
Lens viewing angle, horizontal102
Lens viewing angle, vertical73
Maximum resolution2688 x 1512
Microphone inYes
Minimum aperture number2
Minimum illumination0.16
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x
Night visionYes
Number of cameras1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/2.7
Pan range0 - 190
Placement supportedIndoor & outdoor
Power consumption (Power over Ethernet (PoE))4.8
Power source typePoE
Privacy maskingYes
Product colourWhite
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
Security algorithmsEAP-TLS/HTTPS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis M3216-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.16 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2.9 mm, Closest focusing distance: 1 m
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS,
Tilt angle range-10 - 80
TypeIP security camera
Video compression formatsH.264/H.265
Video streamingYes
Weight791
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

This cost-effective fixed focal dome offers Lightfinder, Forensic WDR, and OptimizedIR, and ensures excellent image quality under any light conditions. Built on ARTPEC-8, it includes a deep learning processing unit enabling powerful analytics based on deep learning on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. And AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity, you can integrate for instance a microphone to extend the value of your system. Furthermore, built-in cybersecurity features safeguard your system.

  • Analytics with deep learning; Audio and I/O connectivity; Built-in cybersecurity features; Excellent image quality in 4 MP; Lightfinder, Forensic WDR, OptimizedIR

ModelM3216-LVE
NameNET CAMERA M3216-LVE DOME/02372-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/7bcc4429-7daf-447a-bd3e-77a1d57b243e.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/7bcc4429-7daf-447a-bd3e-77a1d57b243e.Jpeg
Unit Calculated Volume0.00602
Unit Calculated Weight1.09
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m3216-lve
