NET CAMERA MAIN UNIT F9114-B/MK II 03001-001 AXIS

NET CAMERA MAIN UNIT F9114-B/MK II 03001-001 AXIS
NET CAMERA MAIN UNIT F9114-B/MK II 03001-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 3840 x 2160
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
51,249ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 457660
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis F9114-B Mk II. Connectivity technology: Wired. Product colour: Black, Green. Maximum resolution: 3840 x 2160 pixels, Video formats supported: H.265, H.264, MPEG4, AVC, HEVC, M-JPEG, Video compression formats: H.264, H.265 Pro, AVC, MPEG4, M-JPEG. Audio system: 1-way, Audio formats supported: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS, Signal-to-Noise Ratio (SNR): 55 dB. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, Networking standards: IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at, Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP,...
  • Vendor Homepage: https://www.axis.com/products/axis-f9114-b-mk-ii-main-unit
  • Name: NET CAMERA MAIN UNIT F9114-B/MK II 03001-001 AXIS
  • Category Code: FNC
  • Product colour: Black/Green
  • LED indicators: Yes
  • Connectivity technology: Wired
  • Wide Dynamic Range (WDR): Yes
  • Maximum resolution: 3840 x 2160
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Video compression formats: AVC/H.264/H.265 Pro/M-JPEG/MPEG4
  • Supported graphics resolutions: 1920 x 1080 (HD 1080)/2560 x 1944/3840 x 2160
  • Frame rate: 60
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Flip & mirror: Yes
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Text caption overlay: Yes
  • Audio system: 1-way
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
  • Signal-to-Noise Ratio (SNR): 55
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • RAM capacity: 4096
  • RS-485 ports: 1
  • Microphone in: Yes
  • Terminal block port: Yes
  • Human and vehicle targets classification: Yes
  • Intelligent Video Surveillance (IVS) system features: Abandoned object/Line crossing detection
  • Privacy protection: Yes
  • Security algorithms: EAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS
  • Video motion detection: Yes
  • Cloud-managed: Yes
  • Power source type: PoE,DC
  • Power consumption (typical): 12.7
  • Power consumption (max): 25.5
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 95
  • Storage relative humidity (H-H): 5 - 95
  • Weight: 185
  • Compliance certificates: CE/cUL/Federal Communications Commission (FCC)/KC/UL/VCCI
  • Manual: Yes
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001686
  • Unit Calculated Weight: 0.29
Specifications
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
Audio system1-way
Bit rate controlVariable Bit Rate (VBR)
Card reader integratedYes
Cloud-managedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesCE/cUL/Federal Communications Commission (FCC)/KC/UL/VCCI
Connectivity technologyWired
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Flash memory8192
Flip & mirrorYes
Frame rate60
Human and vehicle targets classificationYes
Image quality adjustmentBrightness/Contrast/Sharpness
Intelligent Video Surveillance (IVS) system featuresAbandoned object/Line crossing detection
LED indicatorsYes
ManualYes
Maximum resolution3840 x 2160
Microphone inYes
Networking standardsIEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Operating relative humidity (H-H)10 - 95
Operating temperature (T-T)-40 - 60
Power consumption (max)25.5
Power consumption (typical)12.7
Power source typePoE,DC
Privacy protectionYes
Product colourBlack/Green
RAM capacity4096
RS-485 ports1
Security algorithmsEAP-TLS/HTTPS/MSCHAPv2/PEAP/TLS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis F9114-B Mk II. Connectivity technology: Wired. Product colour: Black, Green. Maximum resolution: 3840 x 2160 pixels, Video formats supported: H.265, H.264, MPEG4, AVC, HEVC, M-JPEG, Video compression formats: H.264, H.265 Pro, AVC, MPEG4, M-JPEG. Audio system: 1-way, Audio formats supported: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS, Signal-to-Noise Ratio (SNR): 55 dB. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, Networking standards: IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at, Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP,...
Supported graphics resolutions1920 x 1080 (HD 1080)/2560 x 1944/3840 x 2160
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
Terminal block portYes
Text caption overlayYes
Video compression formatsAVC/H.264/H.265 Pro/M-JPEG/MPEG4
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
Weight185
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

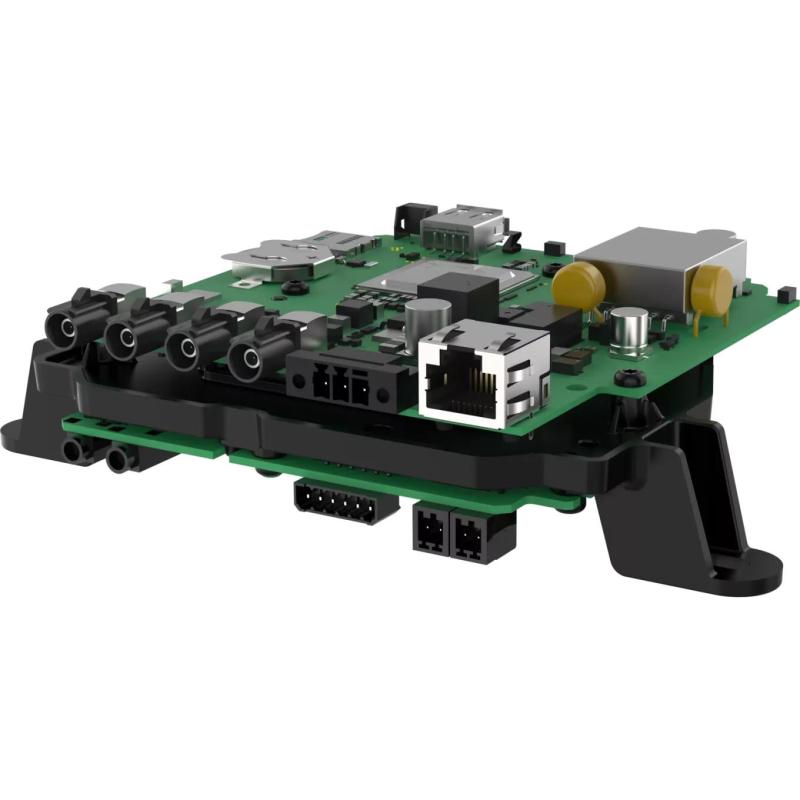

AXIS F9114-B Mk II Main Unit

This AI-powered, 4-channel barebone unit is ideal for integration into UL-certified end products. It offers up to 4K at 12/15 fps and includes two audio-in and four configurable I/O ports. Plus, FAKRA connectors ensure secure installation.

Flexible and cost-efficient

Sold without a casing, this UL-recognized barebone unit is perfect for integration into UL-certified end products. It offers up to four 4K channels at 12/15 fps per channel. With several sensor units to choose from, you can use up to four different sensor units simultaneously. Including two audio-in ports and four configurable I/O ports, it’s possible to connect external microphones and wired accessories. This barebone main unit also ensures lower total cost of ownership compared to conventional camera solutions. For instance, it requires only one video management software (VMS) license instead of four. What’s more, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements.

Gain valuable insights

Featuring a deep learning processing unit (DLPU), this AI-powered barebone unit lets you run advanced features and powerful analytics at the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also delivers valuable metadata facilitating efficient forensic search capabilities in live or recorded video. With AXIS Sensor Metrics Dashboard preinstalled, you can gather information from connected devices including the integrated accelerometer sensor, as well as external Modbus sensors and GPS devices. Furthermore, this barebone main unit includes a built-in USB port that’s prepared for future applications.

Protected from the inside and out

This four-channel barebone unit includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Lever 2 certified, secure cryptographic key storage and operations. Furthermore, FAKRA connectors provide a tight connection with the cable ensuring ruggedized installation.


NameNET CAMERA MAIN UNIT F9114-B/MK II 03001-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/d70ee9ab-3bce-4177-84bf-63759bc9ca59.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/d70ee9ab-3bce-4177-84bf-63759bc9ca59.Jpeg
Unit Calculated Volume0.001686
Unit Calculated Weight0.29
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-f9114-b-mk-ii-main-unit
