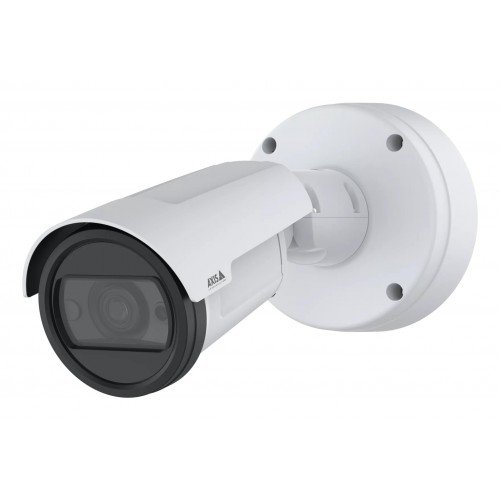

NET CAMERA P1485-LE 28MM/03182-001 AXIS

Technical Specifications

• Summary: Axis P1485-LE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 29.4 - 11°, Lens viewing angle, vertical: 16.5 - 6.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 10.8 - 28.2 mm
• Vendor Homepage: https://www.axis.com/products/axis-p1485-le
• Name: NET CAMERA P1485-LE 28MM/03182-001 AXIS
• Category Code: FNC
• Model: P1485-LE
• Form factor: Bullet
• Mounting type: Pole clamp
• Product colour: White
• LED indicators: Yes
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Alarm input/output: Yes
• Built-in processor: Yes
• Processor model: ARTPEC-9
• Dynamic range: 120
• Minimum illumination: 0.01
• Lens viewing angle, horizontal: 29.4 - 11
• Lens viewing angle, vertical: 16.5 - 6.3
• Camera pixel size: 2.9
• Camera shutter speed: 1/37000 - 2
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Focal length range: 10.8 - 28.2
• Auto focus: Yes
• Maximum aperture number: 1.76
• Minimum aperture number: 1.7
• Night vision: Yes
• Night vision distance: 80
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video compression formats: AV1/H.264/H.265/M-JPEG
• Video recording: Yes
• Frame rate: 60
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Gain control type: Auto
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness/White balance
• Image stabilizer: Yes
• Text caption overlay: Yes
• Audio system: 2-way
• Audio system full duplex: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet/Gigabit Ethernet
• Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8192
• RAM capacity: 2048
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Terminal block port: Yes
• DC-in jack: Yes
• Network access storage (NAS): Yes
• Pixel counter: Yes
• Video motion detection: Yes
• Cloud-managed: Yes
• Power source type: DC,PoE
• Power consumption (max): 12.95
• DC output voltage: 10,12,15,16,24,28
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Weight: 1380
• Number of cameras: 1
• Mounting kit: Yes
• Manual: Yes
• Units per Pallet: 0
• Units per Shipping Box: 3
• Unit Calculated Volume: 0.007663
• Unit Calculated Weight: 1.82
