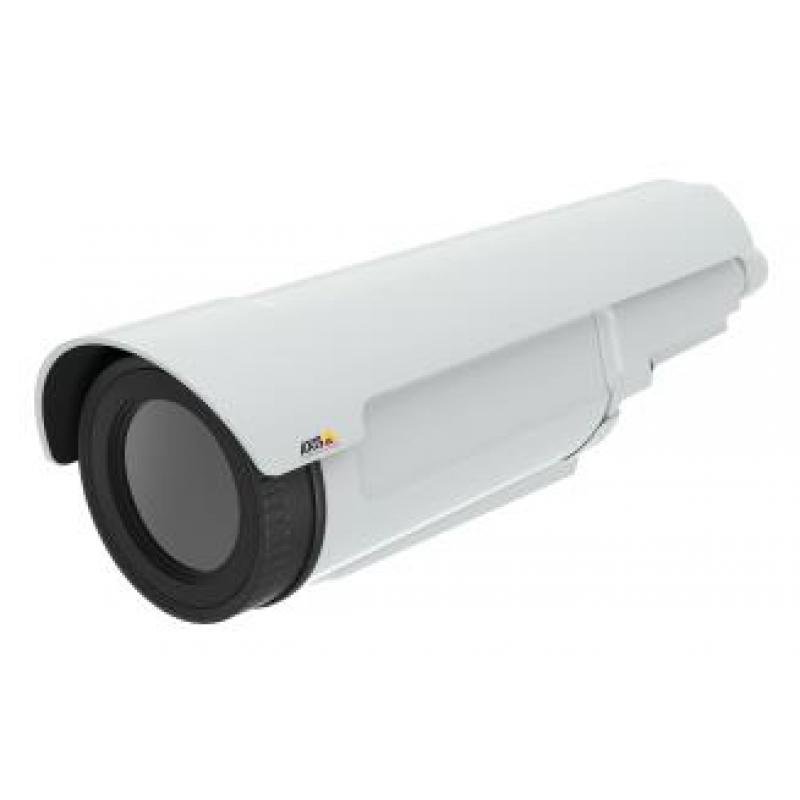

NET CAMERA Q1942-E 10MM 30FPS/PT THERMAL 0981-001 AXIS

NET CAMERA Q1942-E 10MM 30FPS/PT THERMAL 0981-001 AXIS
NET CAMERA Q1942-E 10MM 30FPS/PT THERMAL 0981-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 640 x 480
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
335,290ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 301880
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 0981-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Field of view (FOV) angle: 17°, Angle of rotation: 180°. Sensor type: Microbolometer. Normal focusing range: 33 m, Fixed focal length: 35 mm
  • Vendor Homepage: https://www.axis.com/products/axis-q1942-e-pt-mount
  • Name: NET CAMERA Q1942-E 10MM 30FPS/PT THERMAL 0981-001 AXIS
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • Housing material: Aluminium
  • International Protection (IP) code: IP66
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Preset points: Yes
  • Thermal module: Yes
  • Languages support: Multi
  • Number of languages: 11
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Field of view (FOV) angle: 17
  • Angle of rotation: 180
  • Number of sensors: 1
  • Sensor type: Microbolometer
  • Number of lenses: 1
  • Maximum aperture number: 1.2
  • Fixed focal length: 35
  • Normal focusing range: 33
  • Maximum resolution: 640 x 480
  • Video compression formats: H.264/M-JPEG/MPEG4
  • Frame rate: 30
  • Flip & mirror: Yes
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: Pv4, IPv6 USGv6, HTTP , HTTPS a , SSL/TLS a , QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP T M , SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP , RTSP , RTP , SRTP , SFTP , T CP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH, LLDP
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 256
  • Internal memory: 512
  • Ethernet LAN (RJ-45) ports: 1
  • RS-422 ports: 1
  • RS-485 ports: 1
  • Microphone in: Yes
  • Temperature sensor: Yes
  • Alert notification type: E-mail
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Motion sensor: Yes
  • Security algorithms: 802.1x RADIUS
  • Video motion detection: Yes
  • Power source type: DC,PoE
  • AC input frequency: 50 - 60
  • Power consumption (typical): 4.8
  • Power consumption (max): 11.8
  • DC output voltage: 8
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 100
  • Windows operating systems supported: Yes
  • Height: 105
  • Length: 309
  • Weight: 1900
  • Number of cameras: 1
  • Manual: Yes
  • Terminal block included: Yes
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0144
  • Unit Calculated Weight: 3
Specifications
AC input frequency50 - 60
Alert notification typeE-mail
Angle of rotation180
Camera pan controlYes
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
DC output voltage8
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Field of view (FOV) angle17
Fixed focal length35
Flash memory256
Flip & mirrorYes
Form factorBullet
Frame rate30
Harmonized System (HS) code85258900
Height105
Housing materialAluminium
HTTPS encryptionYes
Image quality adjustmentBrightness/Contrast/Sharpness
Image stabilizerYes
Internal memory512
International Protection (IP) codeIP66
IP address filteringYes
Languages supportMulti
ManualYes
Maximum aperture number1.2
Maximum resolution640 x 480
Microphone inYes
Motion sensorYes
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Normal focusing range33
Number of cameras1
Number of languages11
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Placement supportedOutdoor
Power consumption (max)11.8
Power consumption (typical)4.8
Power source typeDC,PoE
Preset pointsYes
Privacy maskingYes
Product colourBlack/White
PTZ controlYes
RS-422 ports1
RS-485 ports1
Security algorithms802.1x RADIUS
Sensor typeMicrobolometer
Storage temperature (T-T)-40 - 70
SummaryAxis 0981-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Field of view (FOV) angle: 17°, Angle of rotation: 180°. Sensor type: Microbolometer. Normal focusing range: 33 m, Fixed focal length: 35 mm
Supported network protocolsPv4, IPv6 USGv6, HTTP , HTTPS a , SSL/TLS a , QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP T M , SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP , RTSP , RTP , SRTP , SFTP , T CP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH, LLDP
Temperature sensorYes
Terminal block includedYes
Text caption overlayYes
Thermal moduleYes
TypeIP security camera
Video compression formatsH.264/M-JPEG/MPEG4
Video motion detectionYes
Weight1900
Windows operating systems supportedYes
Specs
Category CodeFNC
Description

The bullet-style, outdoor-ready AXIS Q1942-E PT Mount offers the possibility of mounting the camera on a pan/tilt motor to increase installation flexibility. The thermal resolution of 640x480 and a range of lenses make it easy to detect and verify people, objects and incidents from pitch dark areas to a sunlit parking lot. A noise filter gives improved thermal image contrast while keeping noise levels low, without adding blur and ghost effects. AXIS Q1942-E PT Mount withstands harsh weather conditions and has a built-in heater for the window. Additionally, it offers Power over Ethernet and has a microSD card slot.

  • Axis Zipstream; Electronic Image Stabilization; PT mount-ready; Powerful performance for video analytics; VGA thermal imaging

Length309
NameNET CAMERA Q1942-E 10MM 30FPS/PT THERMAL 0981-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/0ce4ef70-d593-424c-8ea7-cebb675b244a.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/0ce4ef70-d593-424c-8ea7-cebb675b244a.Jpeg
Unit Calculated Volume0.0144
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q1942-e-pt-mount
