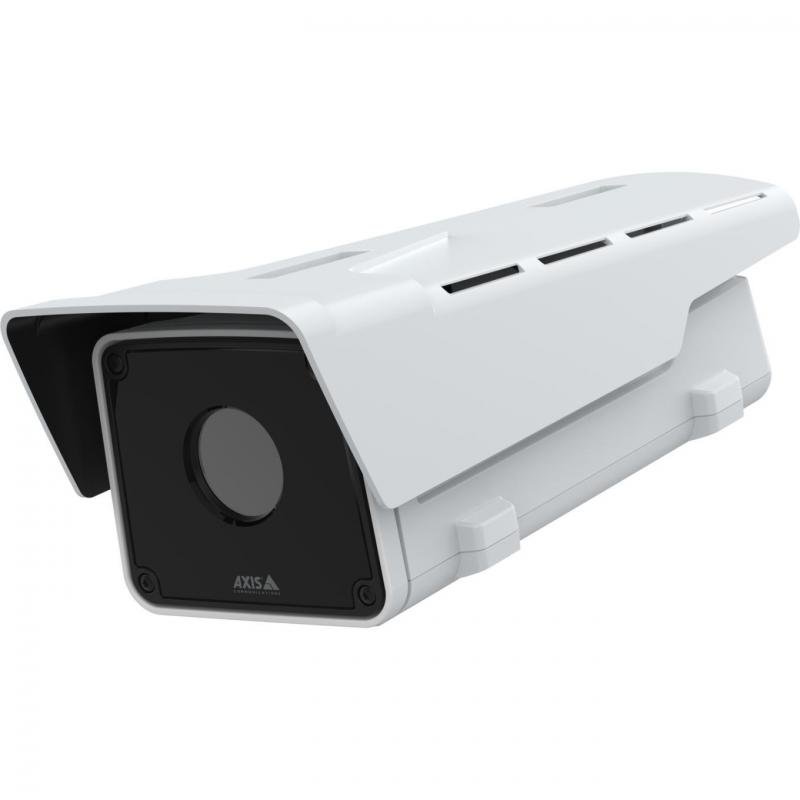

NET CAMERA Q2101-TE THERMAL/7MM 8.3FPS 02649-001 AXIS

NET CAMERA Q2101-TE THERMAL/7MM 8.3FPS 02649-001 AXIS
NET CAMERA Q2101-TE THERMAL/7MM 8.3FPS 02649-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 768 x 576
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
319,806ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 399293
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02649-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Field of view (FOV) angle: 55°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Sensor type (thermal module): Noise equivalent temperature difference (NETD). Lens diameter: 7 mm
  • Vendor Homepage: https://www.axis.com/products/axis-q2101-te
  • Name: NET CAMERA Q2101-TE THERMAL/7MM 8.3FPS 02649-001 AXIS
  • Category Code: FNC
  • Model: Q2101-TE 7 mm 8.3 fps
  • Form factor: Box
  • Mounting type: Wall
  • Product colour: White
  • Housing material: Aluminium
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Thermal module: Yes
  • Built-in processor: Yes
  • Processor model: ARTPEC-8
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Thermal sensitivity (NETD): 40
  • Certification: CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Field of view (FOV) angle: 55
  • Camera pixel size: 17
  • Sensor type (thermal module): Noise equivalent temperature difference (NETD)
  • Sensor type: Microbolometer
  • Lens diameter: 7
  • Maximum aperture number: 1.18
  • Maximum resolution: 768 x 576
  • Video compression formats: H.264/H.265/M-JPEG
  • Video recording: Yes
  • Frame rate: 8.3
  • Video streaming: Yes
  • Gain control type: Auto
  • Privacy masking: Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • RS-485 ports: 2
  • Headphone outputs: 2
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Temperature sensor: Yes
  • Temperature measurement accuracy: 5
  • Temperature measurement range: -40 - 350
  • Fire detection: Yes
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Digest authentication: Yes
  • IP address filtering: Yes
  • Mirror: Yes
  • Network access storage (NAS): Yes
  • Pixel counter: Yes
  • Video motion detection: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 4.1
  • Power consumption (max): 25.5
  • Power consumption (Power over Ethernet (PoE)): 4.6
  • DC output voltage: 8,9,10,12,15,16,24,28
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 150
  • Depth: 404
  • Height: 159
  • Weight: 3300
  • Number of cameras: 1
  • Manual: Yes
  • Packaging content: TORX T30 bit, TORX T20 screwdriver, terminal block connectors, connector guard, cable gaskets, owner authentication key
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.02608
  • Unit Calculated Weight: 5
Specifications
Active tampering alarmYes
Audio system2-way
Audio system full duplexYes
Built-in processorYes
Camera pan controlYes
Camera pixel size17
Camera tilt controlYes
Card reader integratedYes
CertificationCSA, UL/cUL, UKCA, CE, KC, VCCI, RCM
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
DC output voltage8,9,10,12,15,16,24,28
DC-in jackYes
Depth404
Digest authenticationYes
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Field of view (FOV) angle55
Fire detectionYes
Flash memory8192
Form factorBox
Frame rate8.3
Gain control typeAuto
Headphone outputs2
Height159
Housing materialAluminium
IK codeIK10
Internal memory2048
International Protection (IP) codeIP66, IP67
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
Lens diameter7
ManualYes
Maximum aperture number1.18
Maximum resolution768 x 576
MirrorYes
Mounting typeWall
Network access storage (NAS)Yes
Networking standardsIEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Number of cameras1
Number of languages12
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Packaging contentTORX T30 bit, TORX T20 screwdriver, terminal block connectors, connector guard, cable gaskets, owner authentication key
Password protectionYes
Pixel counterYes
Placement supportedIndoor
Power consumption (max)25.5
Power consumption (Power over Ethernet (PoE))4.6
Power consumption (typical)4.1
Power source typeDC,PoE
Privacy maskingYes
Processor modelARTPEC-8
Product colourWhite
Quality of Service (QoS) supportYes
RS-485 ports2
Sensor typeMicrobolometer
Sensor type (thermal module)Noise equivalent temperature difference (NETD)
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02649-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Field of view (FOV) angle: 55°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Sensor type (thermal module): Noise equivalent temperature difference (NETD). Lens diameter: 7 mm
Temperature measurement accuracy5
Temperature measurement range-40 - 350
Temperature sensorYes
Terminal block portYes
Thermal moduleYes
Thermal sensitivity (NETD)40
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video motion detectionYes
Video recordingYes
Video streamingYes
Weight3300
Width150
Specs
Category CodeFNC
Description

Ideal for patrolling large sites, this robust thermal camera lets you remotely monitor temperatures and trigger temperature-based events. It offers early fire detection analytics and built-in cybersecurity features.

What’s the temperature?
AXIS Q2101-TE lets you remotely monitor temperatures over large areas—automatically or manually with just one camera. It can monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F) with several trigger types such as lowest and highest temperature or temperature gradient. When mounted on a positioning unit (sold separately), this robust camera provides a 360° unobstructed field of view. This also enables thermometric guard tour with support for up to 256 presets with 10 polygonal detection areas each. Spot temperature reading acts as a visual aid and lets you see the exact temperature in a specific area. Additionally, temperature metadata enables statistics, follow up, and process analysis.

Detect early signs of fire
Built on ARTPEC 8, the latest Axis system-on-chip (SoC), AXIS Q2101-TE offers powerful analytics capabilities. It comes with early fire detection analytics preinstalled making it possible to set triggers and get warnings about early signs of fire or potential overheating. Using smart filtering, the analytics can disregard uninteresting hot objects such as the warm exhausts of passing work vehicles for reduced false alarms.

Depend on it - robust and secure
This reliable, IK10-, NEMA 4X-rated thermal camera is ideal for monitoring critical assets. It includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. It also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Thanks to electronic image stabilization (EIS), this robust camera provides smooth video even in scenes with vibrations. And, with four I/O ports and support for edge-to-edge technology it’s possible to connect a network speaker to enable audio alarms.

  • Thermometric guard tour capabilities
  • Early fire detection analytics
  • Spot temperature reading
  • Built-in cybersecurity features
  • Support for edge-to-edge technology

ModelQ2101-TE 7 mm 8.3 fps
NameNET CAMERA Q2101-TE THERMAL/7MM 8.3FPS 02649-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/4dda93bb-fd00-4d96-8db5-4f1f6d63e5eb.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/4dda93bb-fd00-4d96-8db5-4f1f6d63e5eb.Jpeg
Unit Calculated Volume0.02608
Unit Calculated Weight5
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-q2101-te
